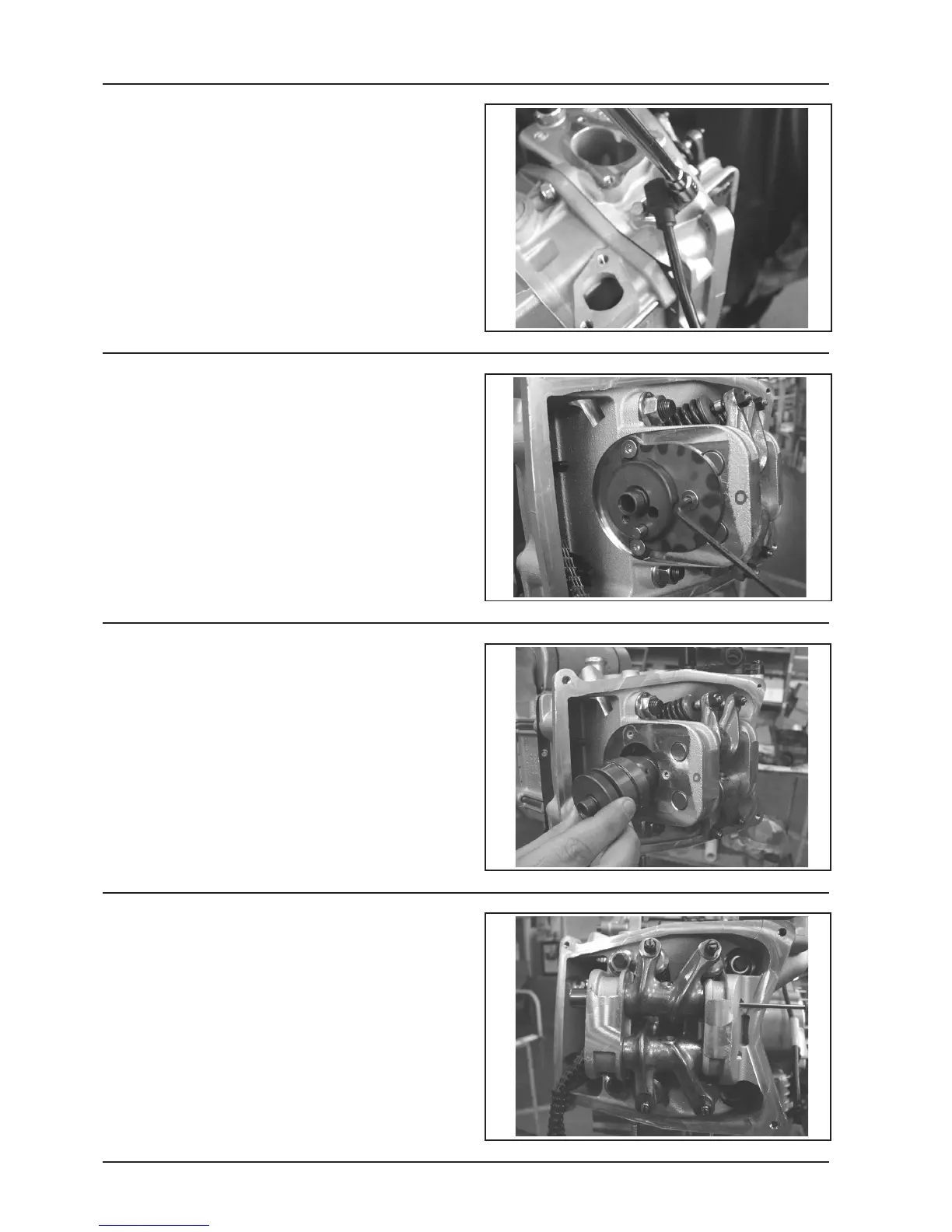

- Remove the engine revs-stroke sensor and relevant
O ring by unloosing the two fixing screws.
N.B.: Check this component as described in Chapter 9-
Injection.
Camshaft and equalizers disassembly
- Unloose the 3 fixing screws and remove the camshaft
stop bracket.
N.B.: Removing the fixing screws may turn out to be
difficult. Make sure not to damage the internal hexagon.
If necessary, first unglue the threading.
- Remove the camshaft.
- Remove the pins and equalizers by acting through
the holes, transmission side.
