3 - 6
Automatic transmission

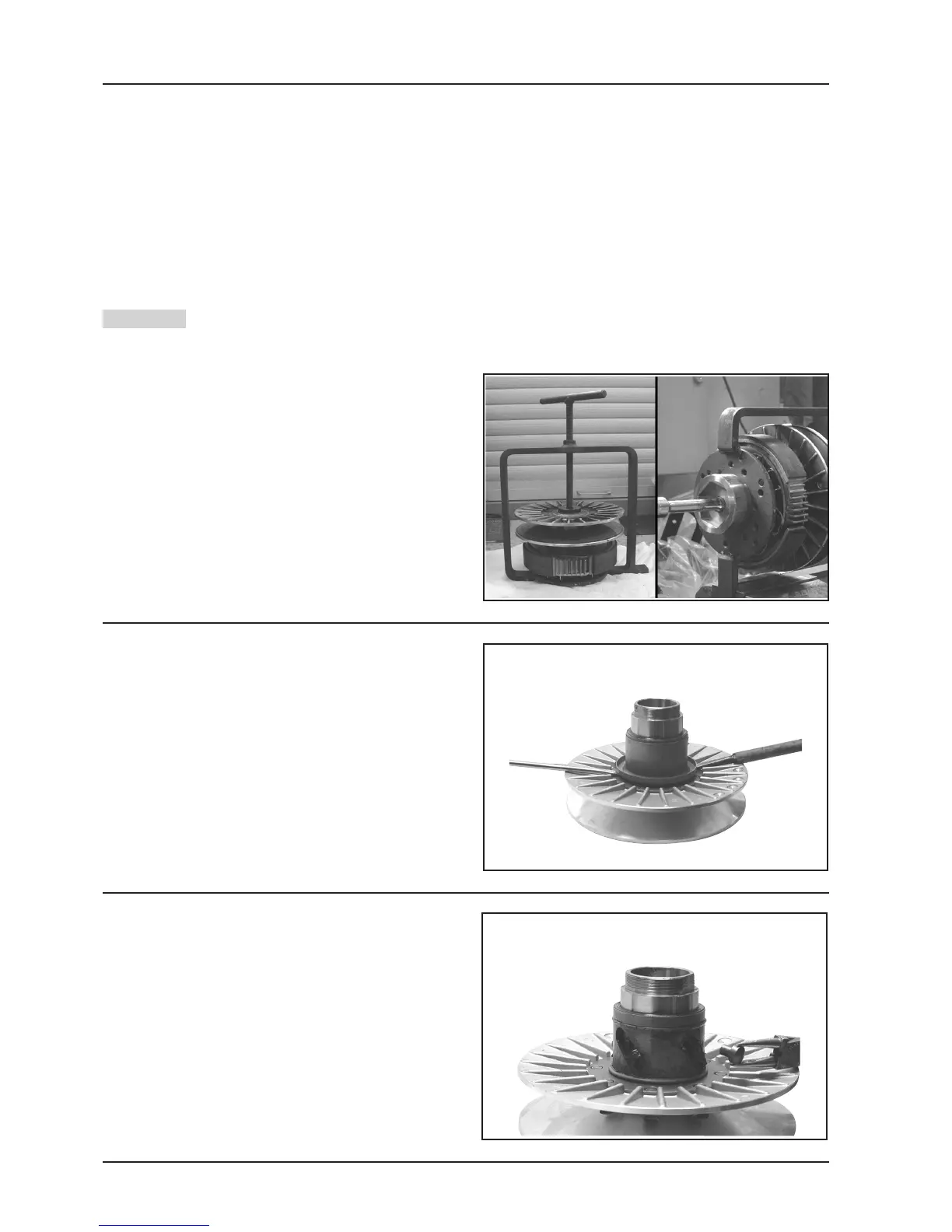

Pins stop collar
- Remove the collar by means of 2 screwdrivers.
05_020
Clutch disassembly
- Remove the clutch and driven pulley by means of the
specific tool;
- Prepare the tool with the pins screwed in the «E»
position on the internal side;
- Assemble the driven pulley assembly on the tool and
insert the pins in the ventilation holes;
- Bring the rear stop screw in contact with the fixed
driven pulley, as shown in the figure.
- Put the tool in a vice firmly. Do not
overtighten the rear screw to avoid buckling the tool.
- Remove the fixing ring nut with the specific spanner
of 55 mm.
- Unloose the tool screw and dismount the driven
pulley, clutch, spring with sheath assembly
Specific tools:
Driven pulley spring compressor 020444Y
55 mm spanner 020444Y009
Ring 020444Y010
05_019
05_021
- Remove the 4 guide pins.
- Remove the mobile driven half pulley.
Warning
