EXHAUST SYSTEMS
PRO-RIDE DC-CFI-4 Exhaust System
NOTE: Always use the stainless steel (gray) springs
to connect the exhaust pipe to the exhaust manifold.
When removing the exhaust pipe, disconnect the EGT
pro
be wire harness. Do not remove the EGT probe
from the pipe if not necessary.

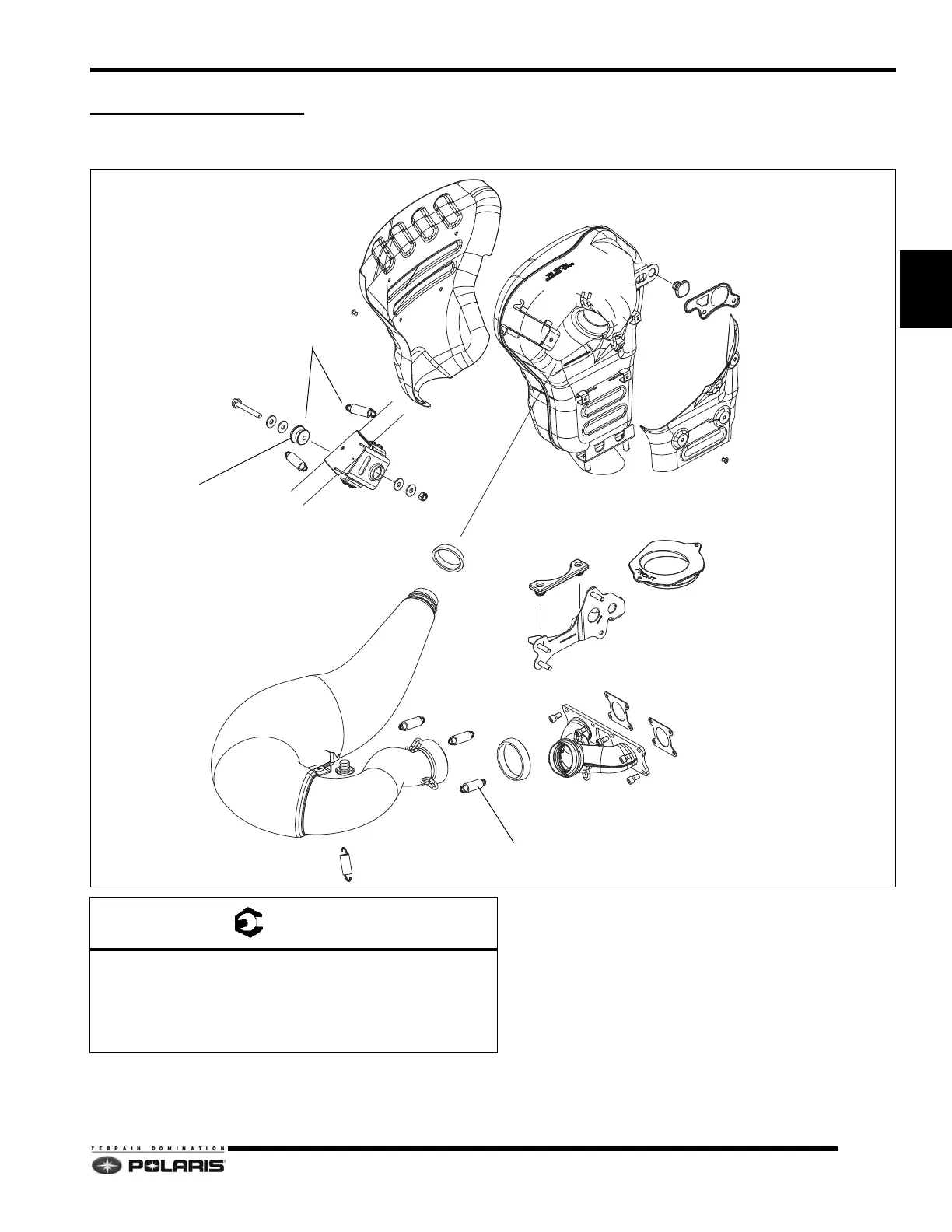

HEAT SHIELD
EXHAUST PIPE
ZINC-PLATED (YELLOW) SPRINGS
STAINLESS STEEL (GRAY) SPRINGS
GASKET
HEAT SHIELD
A
B
C
D
GASKETS
EXHAUST SEAL
MOUNT BUMPER
(INSTALL LARGE END TO OUTSIDE)
A: EGT Sensor: 32 ft-lbs (44 Nm) Apply anti-seize to
threads.
B: Exhaust Manifold Fasteners: 22 ft-lbs (30 Nm)
C: Silencer Rubber Mount Fastener = 17 ft-lbs (23 Nm)
D: Silencer Bracket Fasteners = 26 ft-lbs (35 Nm)
To Next Page
