8.42
Steering and Suspensions

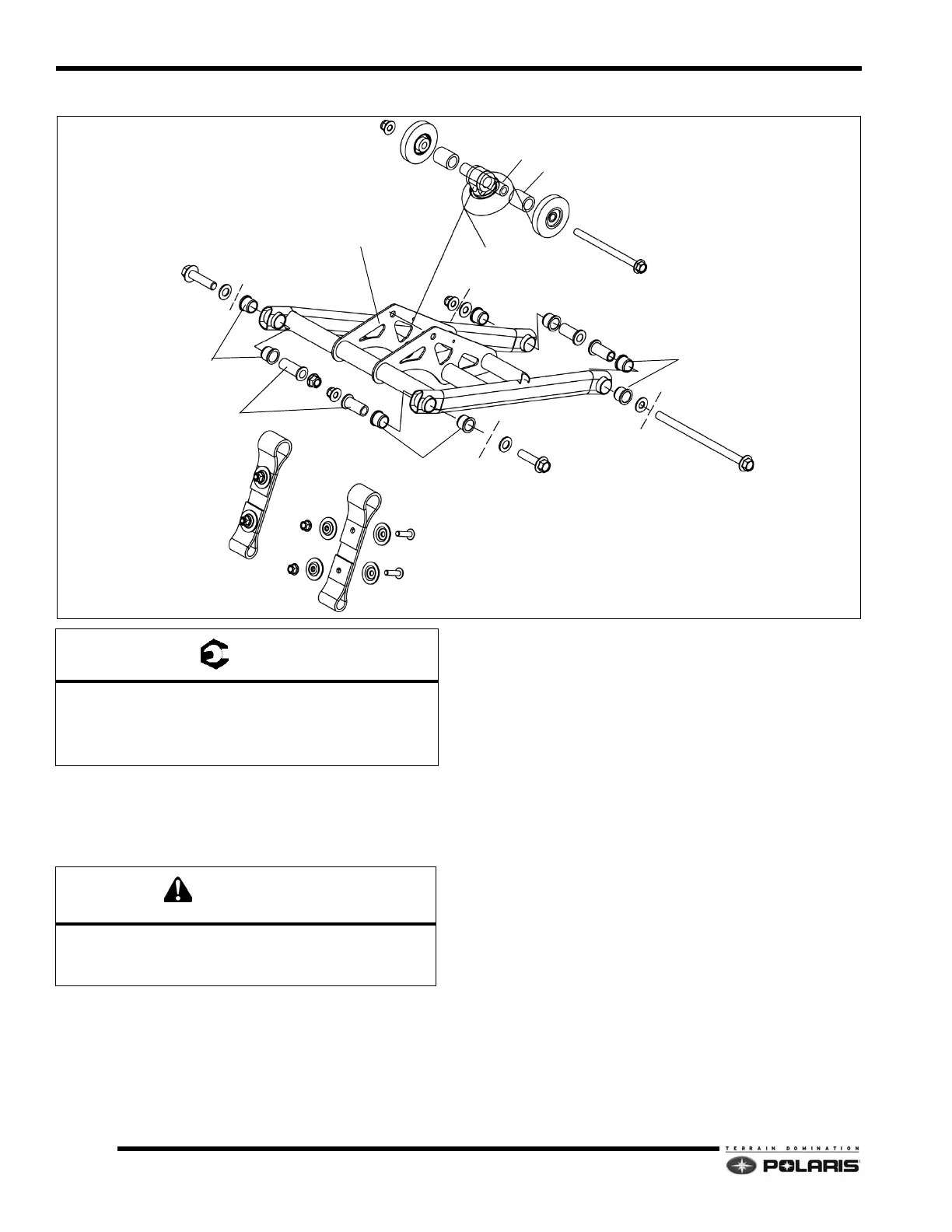

2010 Progressive 120 Front Torque Arm Assembly
Assembly Notes
• Never re-use lock nuts. Always replace with new parts.
• All pivots must rotate freely after tightening fasteners.
A: 17 ft-lbs (23 Nm)
B: 60 ft-lbs (80 Nm) Apply Loctite® 262™ to Threads
C: 33 ft-lbs (45 Nm)
D: 60 ft-lbs (80 Nm)
Some rail shaft fasteners are pre-coated with locking
agent. Never re-use these fasteners once removed.
Always use new pre-coated fasteners.
FTS CARRIER WHEELS
SPACERS
INNER SHAFT
FRONT TORQUE ARM
LIMITER STRAPS
PIVOT SHAFTS
UPPER TORQUE ARM SHAFTS
BUSHINGS
BUSHINGS
BUSHINGS
A
A
B
B
C
D
METRIC FASTENERS
INSTALL STRAPS RUBBER SIDE OUT
