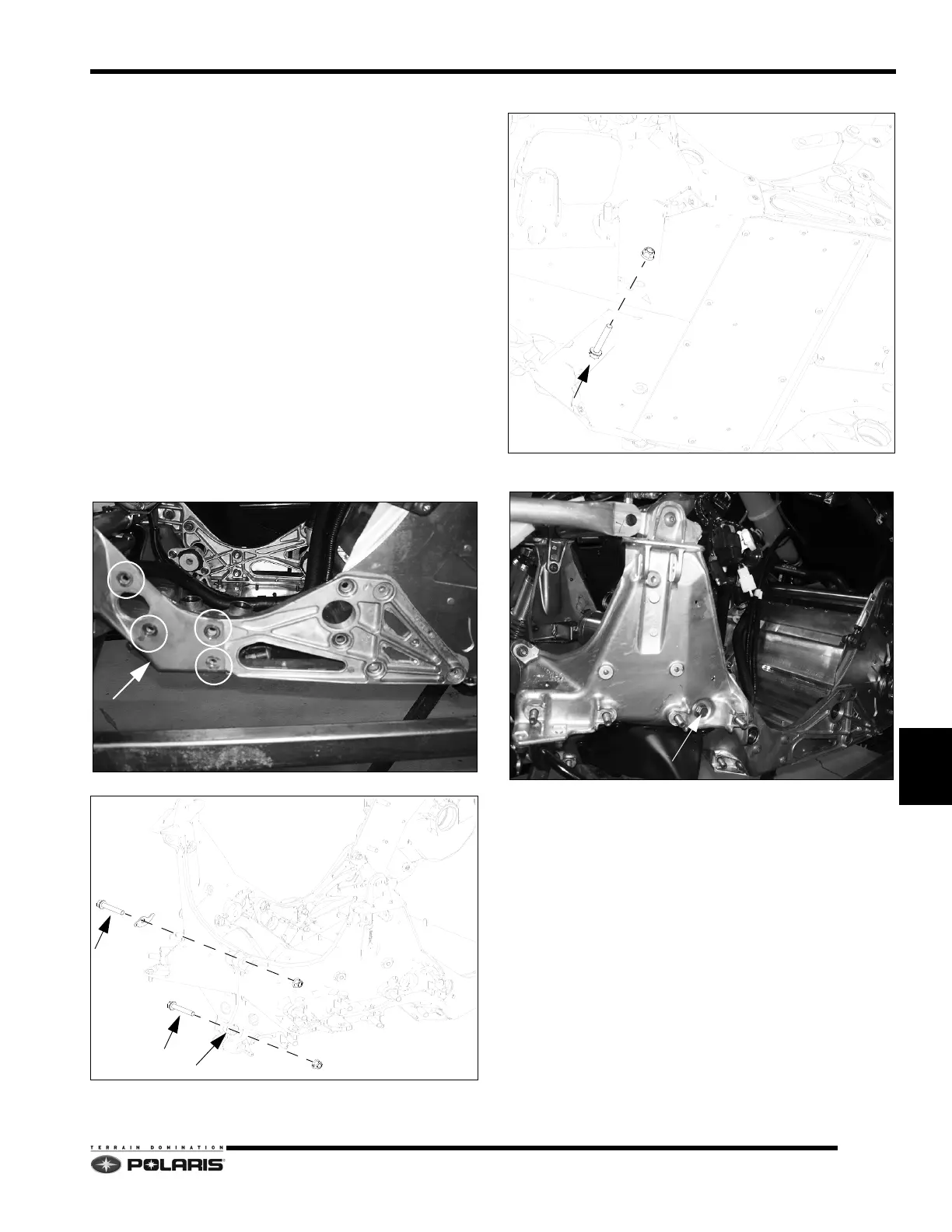

Left Bulkhead Clip Removal
1. Remove the following components:
• Right/left engine compartment door
•Hood
• Nosepan/bumper
• Exhaust pipe/silencer
• Oil tank/clutch cover assembly
• Airbox assembly
• Engine assembly
• Left-side front engine mount
• Bulkhead floor plate
• Left side front suspension components
• Lower steering arm
• Fuel tank (Remove fuel hoses and gasoline from
t
ank)
2. Drill out the rivets securing the left
fender to the
bulkhead and chassis.
3. Remove the five fasteners and nuts (including the two
e
ngine mount fasteners/nuts) securing the bulkhead
clip to the left side engine side support brace.
4. Remove the bulkhead clip fasteners/nuts.
5. Remove the cross shaft fastener from the bulk head
clip.
LOWER HEAT EXCHANGER MOUNT
