Steering and Suspensions

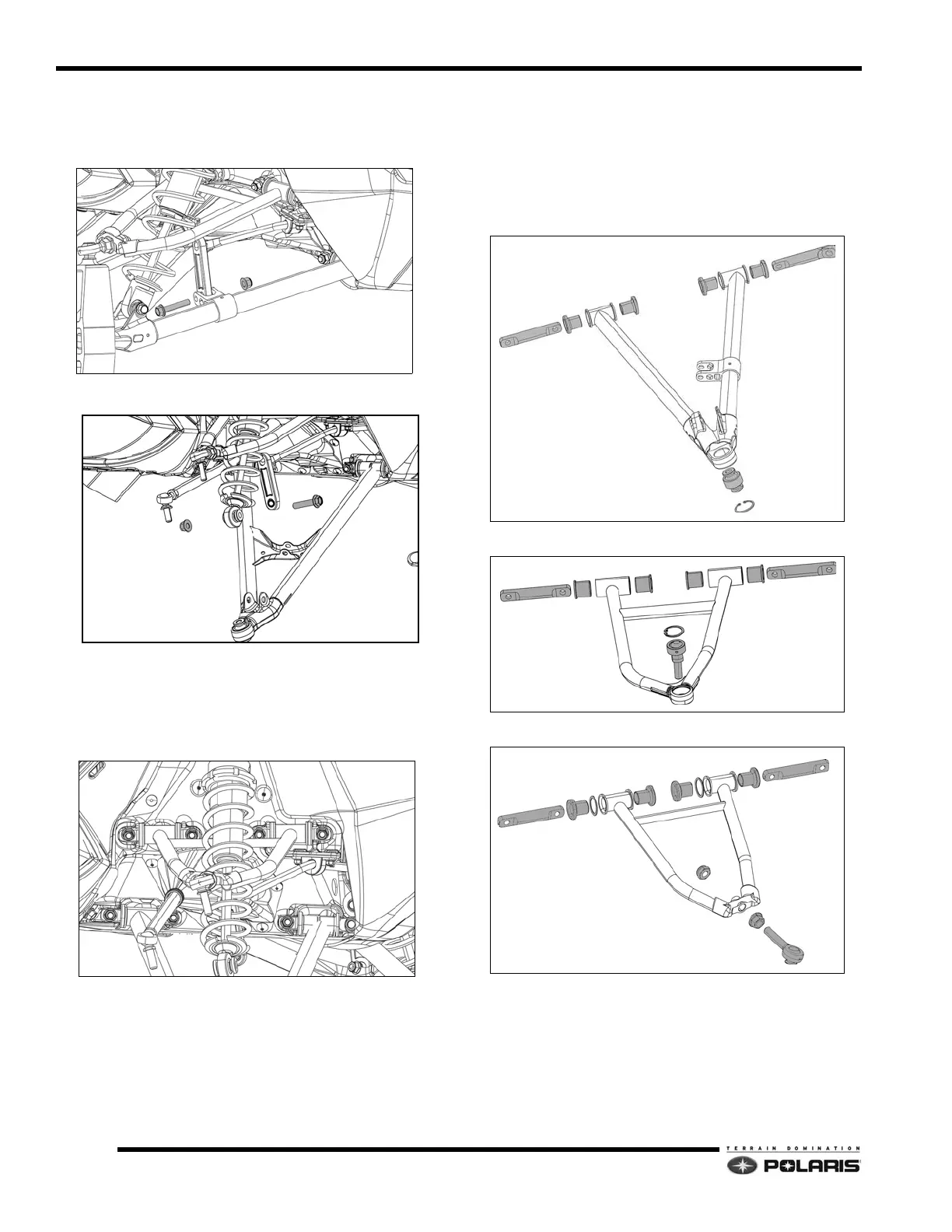

Upper/Lower Control Arm Removal
1. Remove ski assembly and spindle.
2. Remove the sway bar link fastener.
3. Remove the shock from the lower control arm.
4. If removing the upper control arm, remove the four
loc
k nuts that secure the pivot shafts to the bulk head.
5. If removing the lower control arm, remove the four lock
n
uts that secure the pivot shafts to the bulk head. Note
that the forward fastener location is a bolt with nut.
Upper/Lower Control Arm Installation
1. If replacing the pivot shafts, bushings, or rod ends,
install the new parts. Reference the appropriate
component assembly views for correct orientation of
washers and bushings.
• Lower Control Arm
• Fixed Camber Upper Control Arm
• Adjustable Camber Upper Control Arm
2. If replacing the spherical bearing, reference Spherical
Be
aring Replacement procedure.
To Next Page
