5.6
Final Drive/Brake System

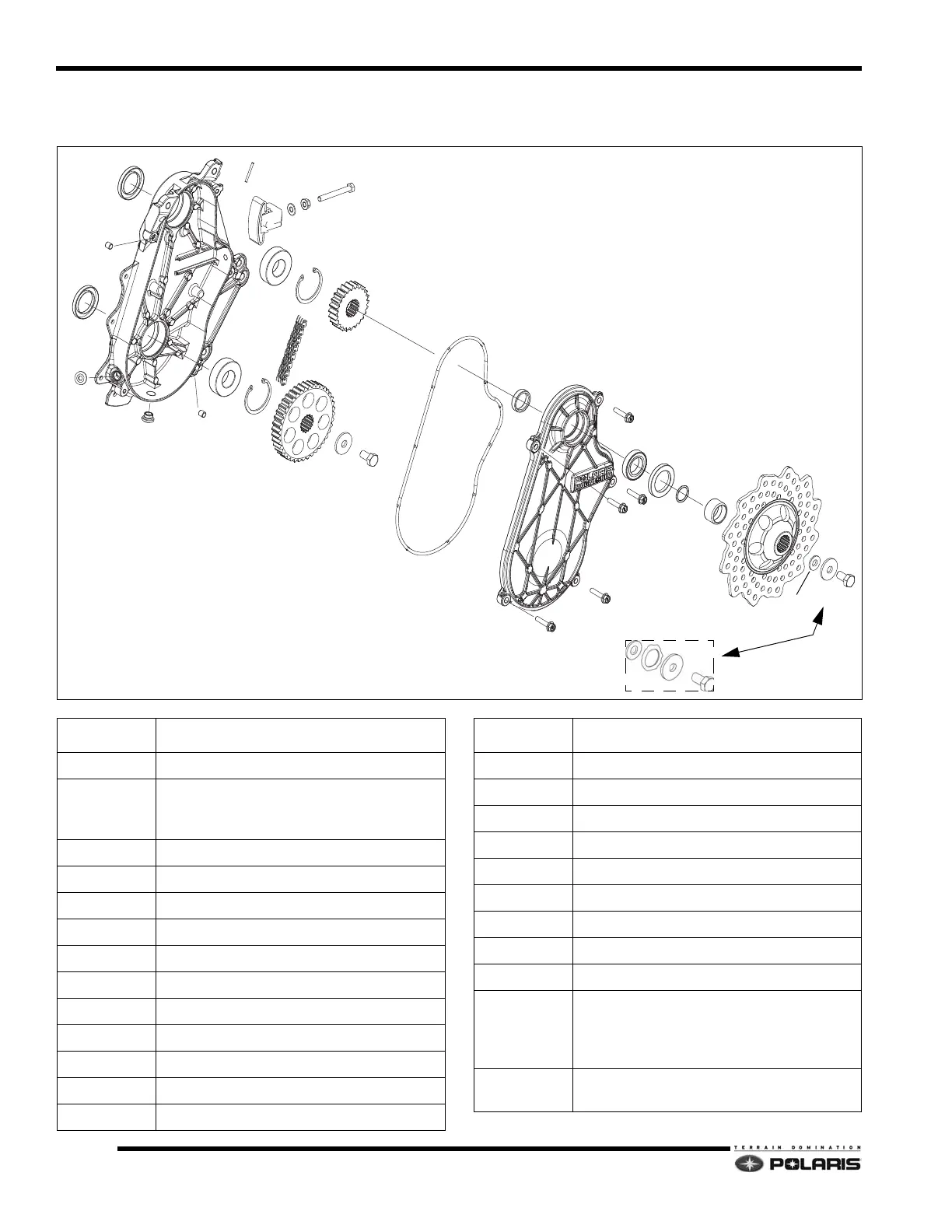

Full Assembly View
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
14
20
15
15
16
17
18
21
20
21
19
19
22
23
24
23
2
1
REFERENCE # DESCRIPTION
1 Brake Disc Fastener
2
Phantom Caliper Models = Flat Washer
Phantom Lite Caliper Models = Domed
(Bevel
ed) Washer
3 Brake Disc
4 Seal Sleeve
5 Jackshaft O-Ring
6 Seal
7 Bearing
8 Cover Fasteners
9 Cover
10 Chaincase Sleeve
11 Cover Gasket
12 Top/Bottom Gears
13 Chain
14 Snap Rings
15 Bearings
16 Chain Tensioner/Wear Pad
17 Tensioner Adjustment Screw/Jam Nut
18 Vent
19 Fill/Drain Plugs
20 Alignment Dowels
21 Seals
22 Dome (Beveled) Washer
23
Float Washer
2010 = (To get .8mm disc float = 1-2 QTY.)
2011-Current= (1 QTY.)
Phantom Lite Brake Caliper = (1 QTY.)
24
Wave Washer
2011-Current Phantom Caliper Models
REFERENCE # DESCRIPTION
To Next Page
