10.8
Battery and Electrical Systems
ANALOG/DIGITAL INSTRUMENT
CLUSTER
Overview
Information regarding vehicle speed, engine RPM,
engine overheat, PERC, oil level, brake, engine
temperature and check engine MIL (diagnostic trouble
codes) is transmitted to the gauge from the ECU using
CAN BUS communication technology.
When the high beam headlight
s are illuminated, the
gauge receives a signal from the YEL/RED high beam
circuit.
The MODE button performs the sa
me functions as the LH
control MODE toggle button.
In addition to standard engine and vehicle information,
the
instrument cluster can display diagnostic trouble
codes when the check engine MIL is illuminated.
The instrument cluster is powered by the RED/WHT
cha
ssis power 12 VDC circuit.

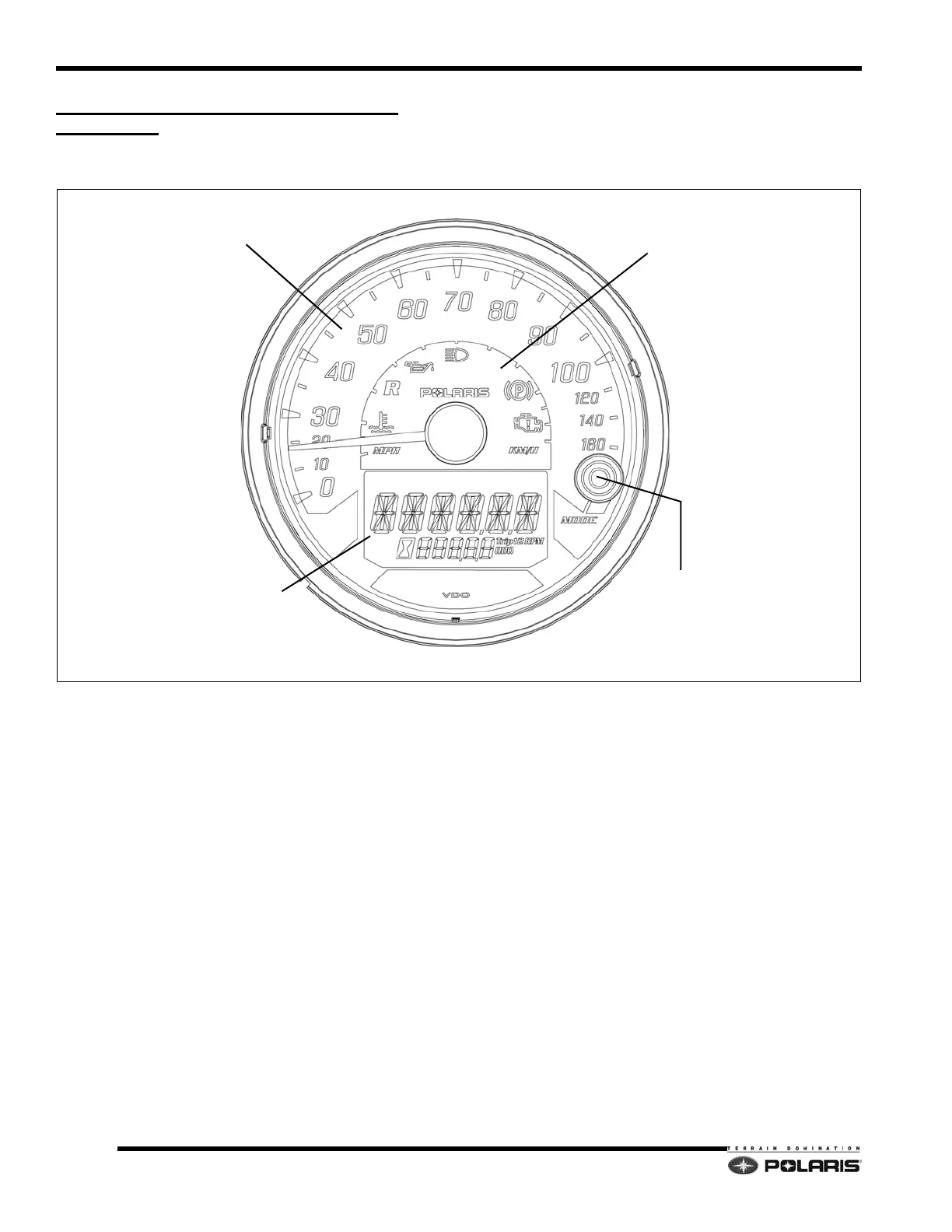

SPEEDOMETER
INDICATOR LAMPS
MODE BUTTON
RIDER INFORMATION CENTER
