Steering and Suspensions
RMK/PRO RMK 155/163 Front Torque Arm
Assembly Notes
• Never re-use lock nuts. Always replace with new
pa
rts.
• All pivots must rotate freely after tightening
fa
steners.
RMK ASSAULT ONLY

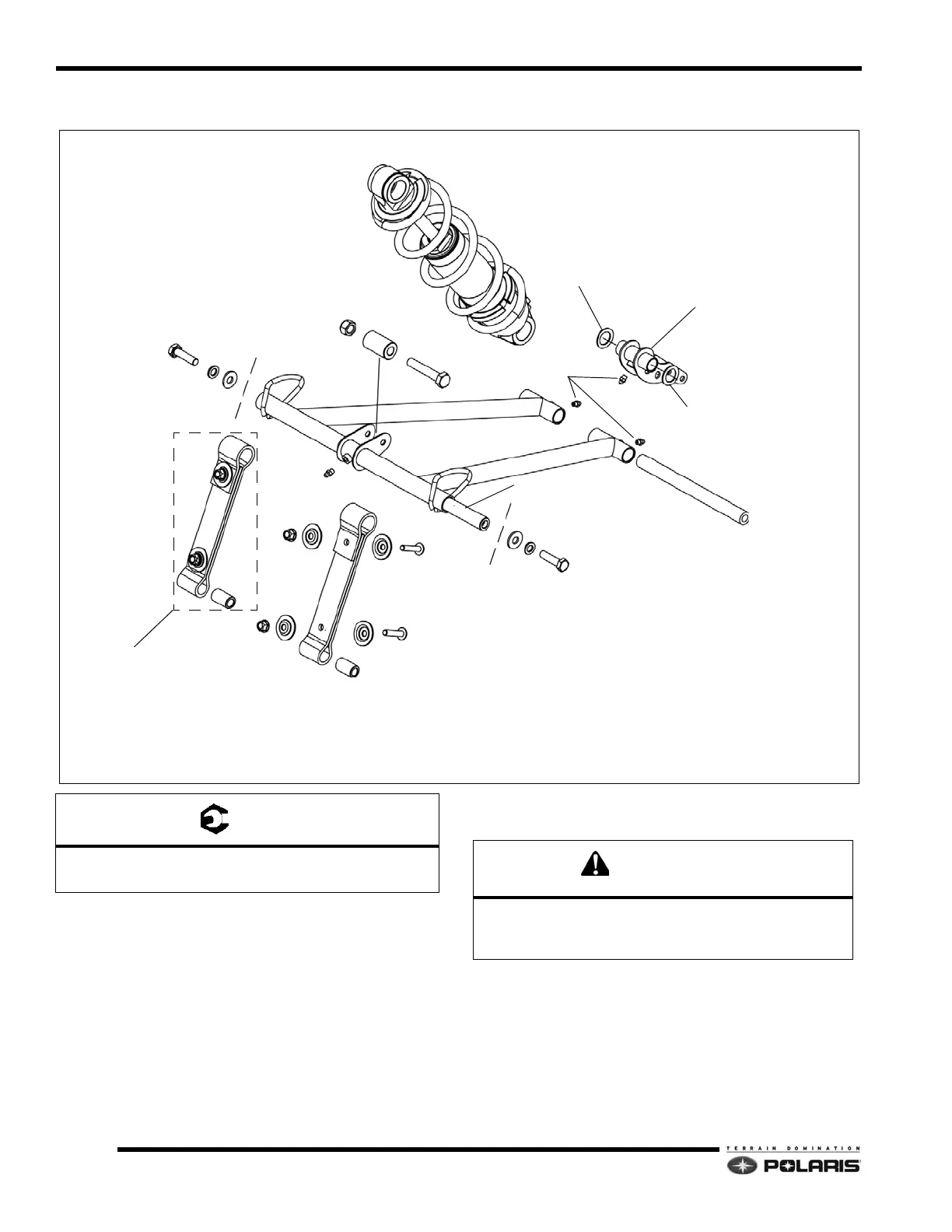

PIVOT SHAFT
BUSHING
PIVOT SHAFT
FRONT TRACK SHOCK
BUSHING
REAR TRACK SHOCK FRONT PIVOT
BUSHING
BUSHING
LIMITER STRAP
FRONT TORQUE ARM
GREASE ZERKS
GREASE ZERK
A
A
B
B
B
METRIC FASTENERS
INSTALL STRAPS RUBBER SIDE OUT
A: 46 ft-lbs (63 Nm)
B: 17 ft-lbs (23 Nm)
Some rail shaft fasteners are pre-coated with locking
agent. Never re-use these fasteners once removed.
Always use new pre-coated fasteners.
