8.48
Steering and Suspensions

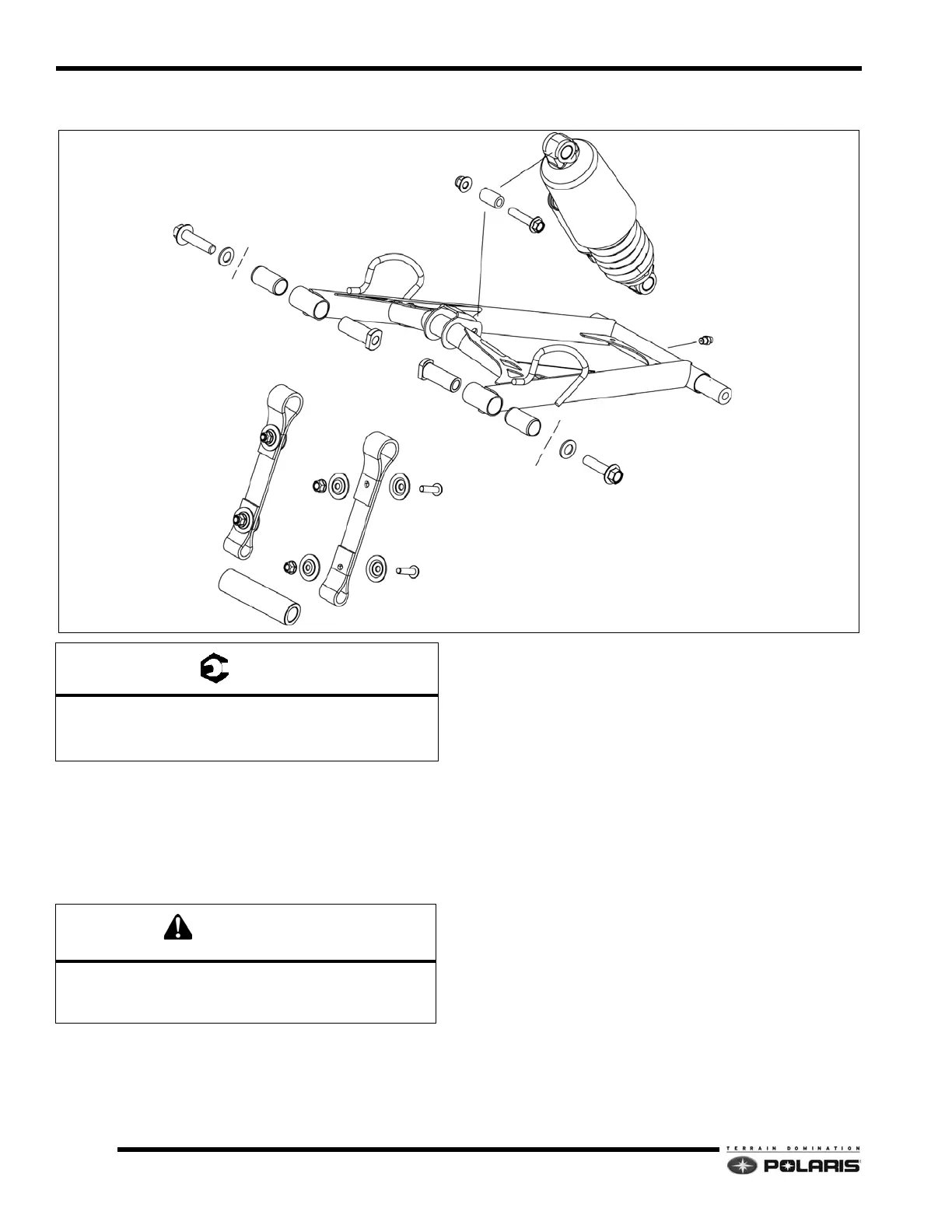

Progressive 121 Front Torque Arm
Assembly Notes
• Never re-use lock nuts. Always replace with new
pa
rts.
• All pivots must rotate freely after tightening
fa
steners.
FRONT TORQUE ARM
LIMITER STRAPS
PIVOT SHAFT
UPPER TORQUE ARM SHAFTS
BUSHING
BUSHING
A
A
B
B
LIMITER STRAP SPACER
BUSHING
FRONT TRACK SHOCK
METRIC FASTENERS
INSTALL STRAPS RUBBER SIDE OUT
C
A: 17 ft-lbs (23 Nm)
B: 60 ft-lbs (80 Nm) Apply Loctite® 262™ to Threads
C: 33 ft-lbs (45 Nm)
Some rail shaft fasteners are pre-coated with locking
agent. Never re-use these fasteners once removed.
Always use new pre-coated fasteners.
