Battery and Electrical Systems
Full Length Hand Warmers
Some models feature integrated handlebar hooks with full length hand warmer elements. These hand warmers differ
from standard length warmers in that they are cut to match the bend of the integrated handlebar hooks. Because of this,
there are separate warming elements for the left and right side of the handlebar assembly.

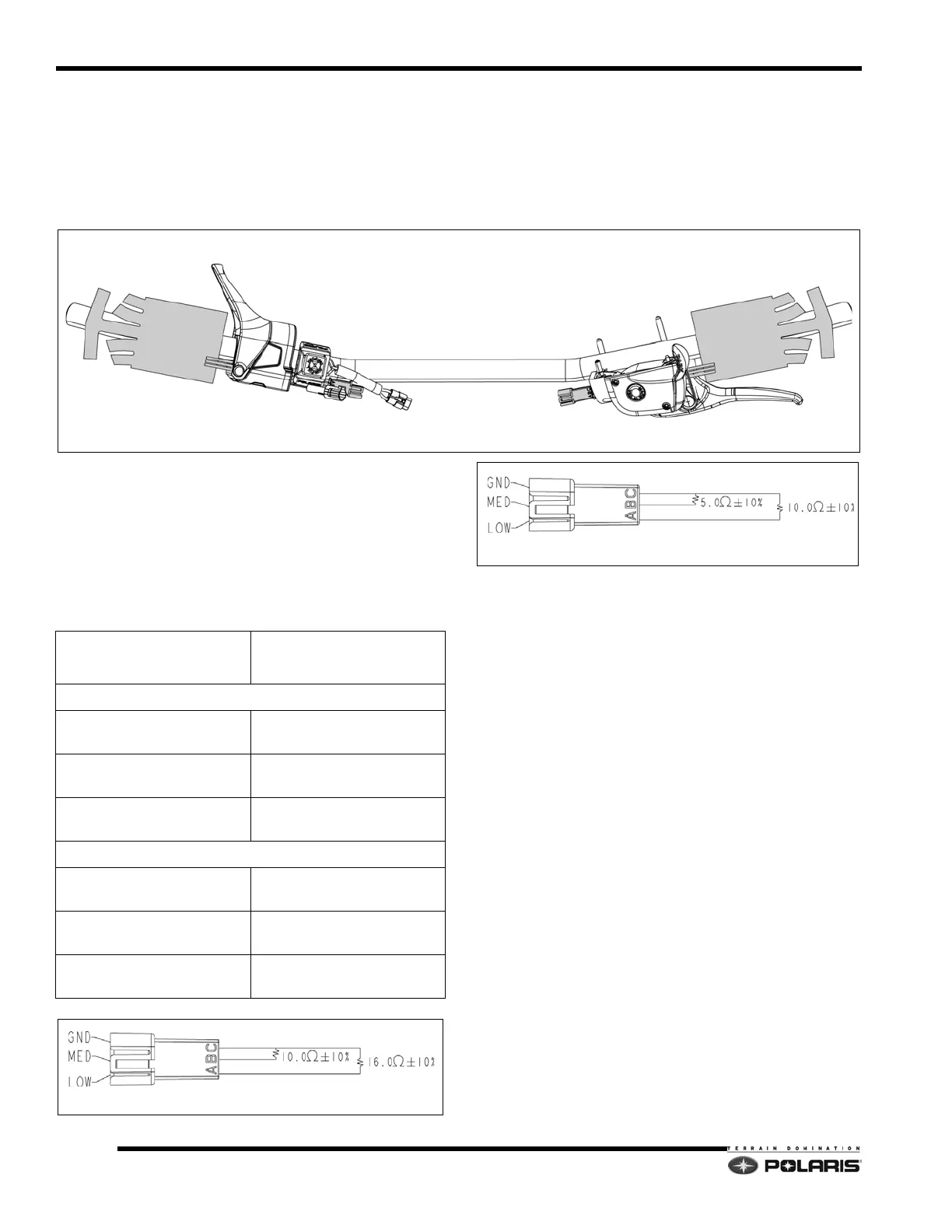

To install, note the orientation of the hand
warmer element before removal. Reference the illustration and notes below
to properly install the element pads.
Assembly Notes:
• Install heater element pads .75in. (19mm) from
end
of handlebars.
• Orientate heater element pads 90° to hook bends.
Full Length Hand Warmer Resistance
Checks
RIGHT HAND WARMER ELEMENT
LEFT HAND WARMER ELEMENT
CIRCUIT (Wire Color)
RESISTANCE @ ROOM
TEMP. (68 F / 20 C)
STEEL HANDLEBARS
LOW (BLUE) to GROUND
(BROWN)
16 +/-10%
MEDIUM (BLUE/RED) to
GROU
ND (BROWN)
10 +/-10%
LOW or MEDIUM to CHASSIS
(SHORT)
O.L. (OPEN CIRCUIT)
ALUMINUM HANDLEBARS
LOW (BLUE) TO GROUND
(BROWN)
10 +/-10%
MEDIUM (BLUE/RED) to
GROU
ND (BROWN)
5 +/-10%
LOW or MEDIUM to CHASSIS
(SHORT)
O.L. (OPEN CIRCUIT)
