7.18
Shocks

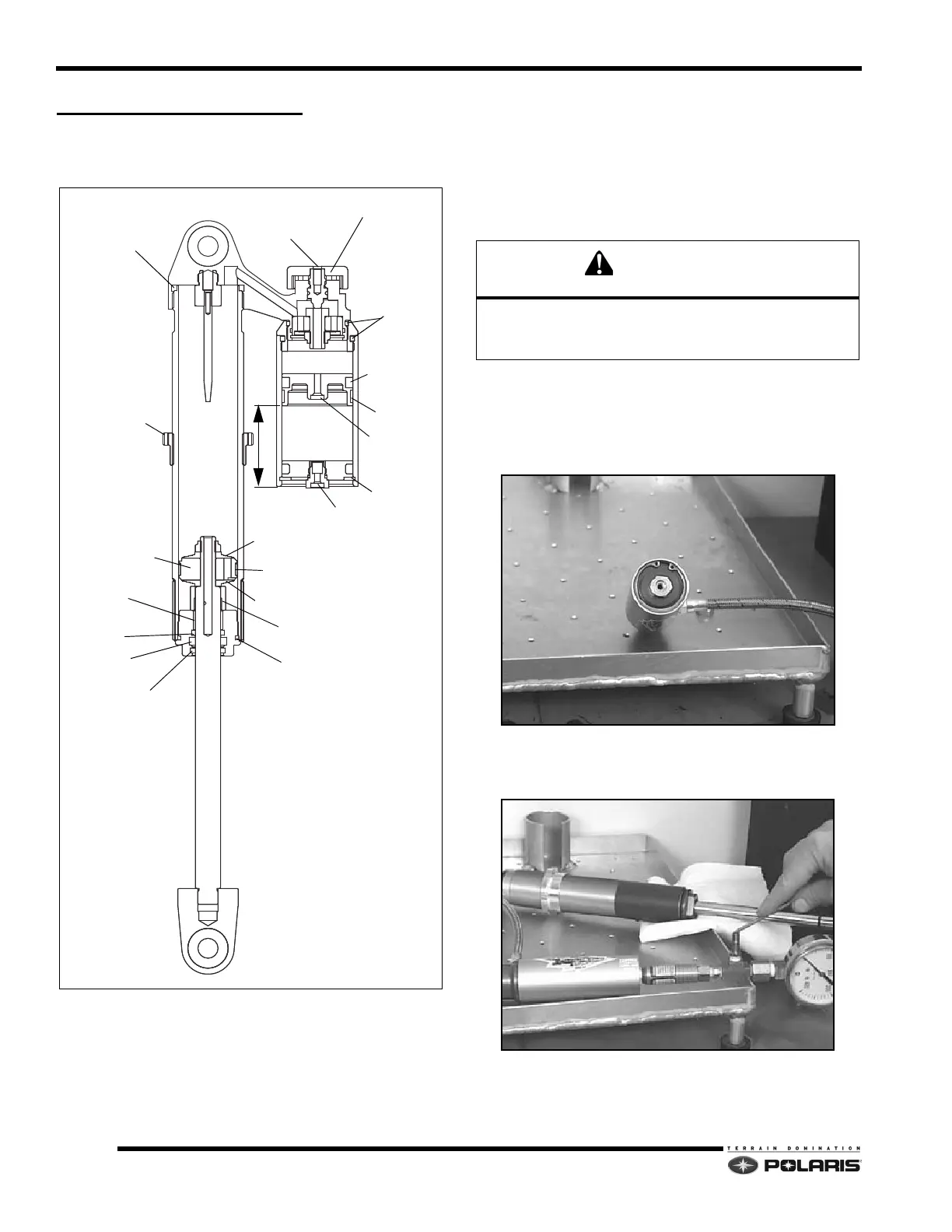

SHOCK MAINTENANCE
Walker Evans™ Coil-Over Piggyback Shock
Walker Evans
™ Remote Reservoir /
Piggyback Shock Disassembly
NOTE: Remote reservoir shock shown.
IMPORTANT: To prevent damage or marks to the
sho
ck, the use of soft jaws on a vise is recommended.
1. Clean and carefully remove shock from the
su
spension.
2. Remove button head screw from reservoir cap (if
app
licable).
3. Insert safety needle carefully and depressurize the
s
hock.
SPRING RETAINER
SHOCK ROD
NEEDLE
WEARBAND
REBOUND STACK
COMPRESSION STACK
CONVEX PISTON
D WIPER
U CUP SEAL
O-RING
BUSHING
O-RING
O-RING
SHAFT SPACER
BUTTON SCREW
SNAP RING
IFP
O-RING
WEARBAND
O-RING
BLEED SCREW
COMPRESSION KNOB
SCREW
IFP DEPTH
SHOCK CONTENTS UNDER HIGH PRESSURE.
ALWAYS WEAR SAFETY GLASSES WHEN
WORKING WITH SHOCKS.
