4.7
Cleanfire Fuel Injection
4

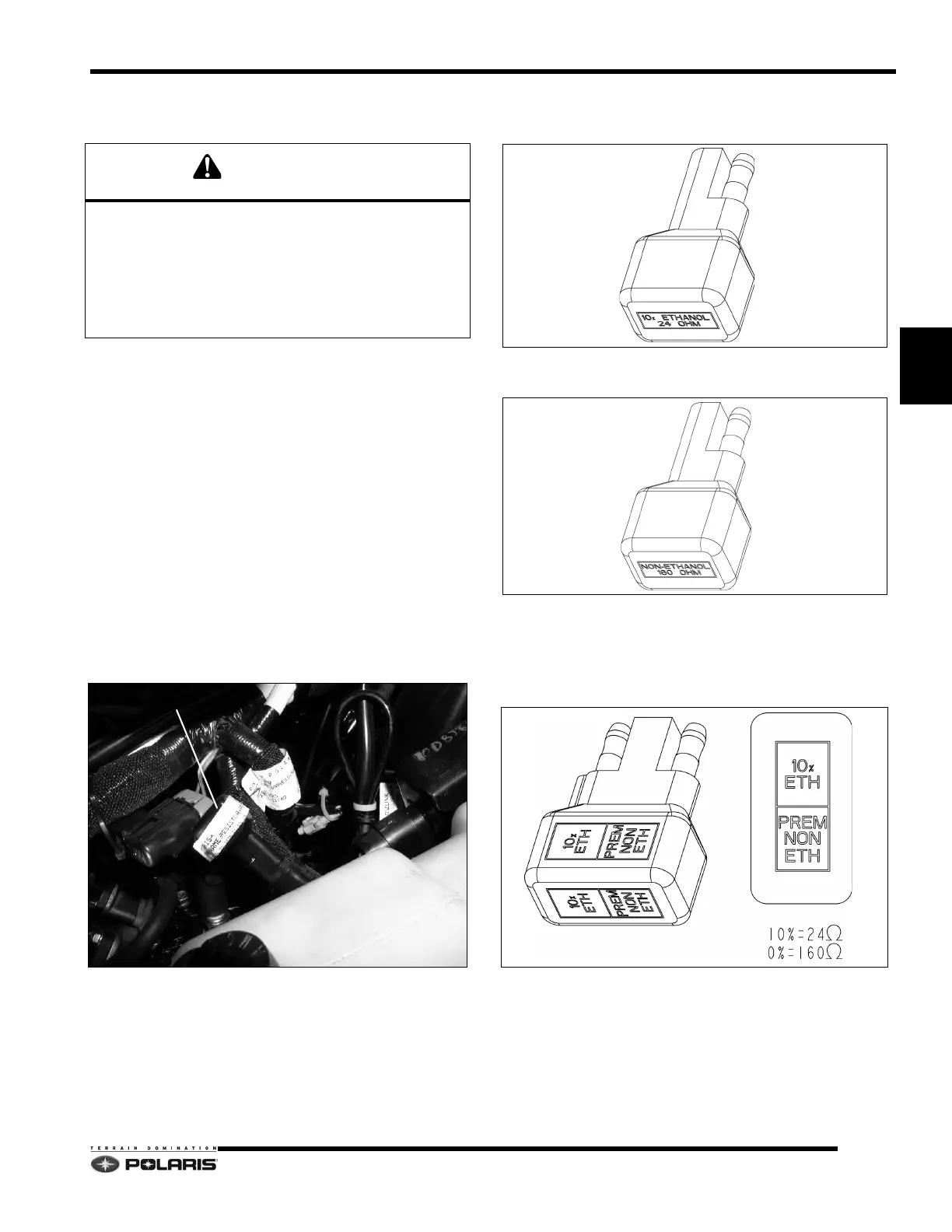

Fuel Select Feature
2010-2012 models featured either fuel resistor plugs or a
dual resistor plugs.
Resistor Fuel Selector Plugs
DC-CFI-2/4 models allow the operator to select between
91+ octane non-oxygenated fuels or <91 octane or
oxygenated fuels.
The fuel selector resistor plug is located on the main wiring
h
arness attached to the over structure behind the left-side
door panel
When using <91 octane, oxygenated, or when unsure of
th
e fuel type inside the fuel tank, plug the 10% ETHANOL/
24 OHM resistor into the fuel selector plug.
When using 91+ non-oxygenated
fuels, install the NON-
ETHANOL/160 OHM resistor into the fuel selector plug.
<91/10% ETHANOL/24 OHM Resistor Plug
Part Number =2411280 (Installed at the factory.)
91+ NON-ETHANOL/160 OH
M Resistor Plug
Part Number =2411282 (Included in tool kit.)
Dual Resistor Fuel Selector Plug
2012 models are equipped with one fuel selector plug
featuring dual resistors. The part number for the plug is
2411631 and it can be used on all DC-CFI models.
Always verify the ETHANOL resistor plug is installed in
the selector plug if unsure of fuel type. Severe engine
damage may occur if the PREMIUM resistor plug is
installed when using ethanol-blended fuel.
Never use fuels containing more than a 10% ethanol
blend.
Lock Screw
FUEL RESISTOR PLUG
OIL TANK
