9.23
Chassis
9

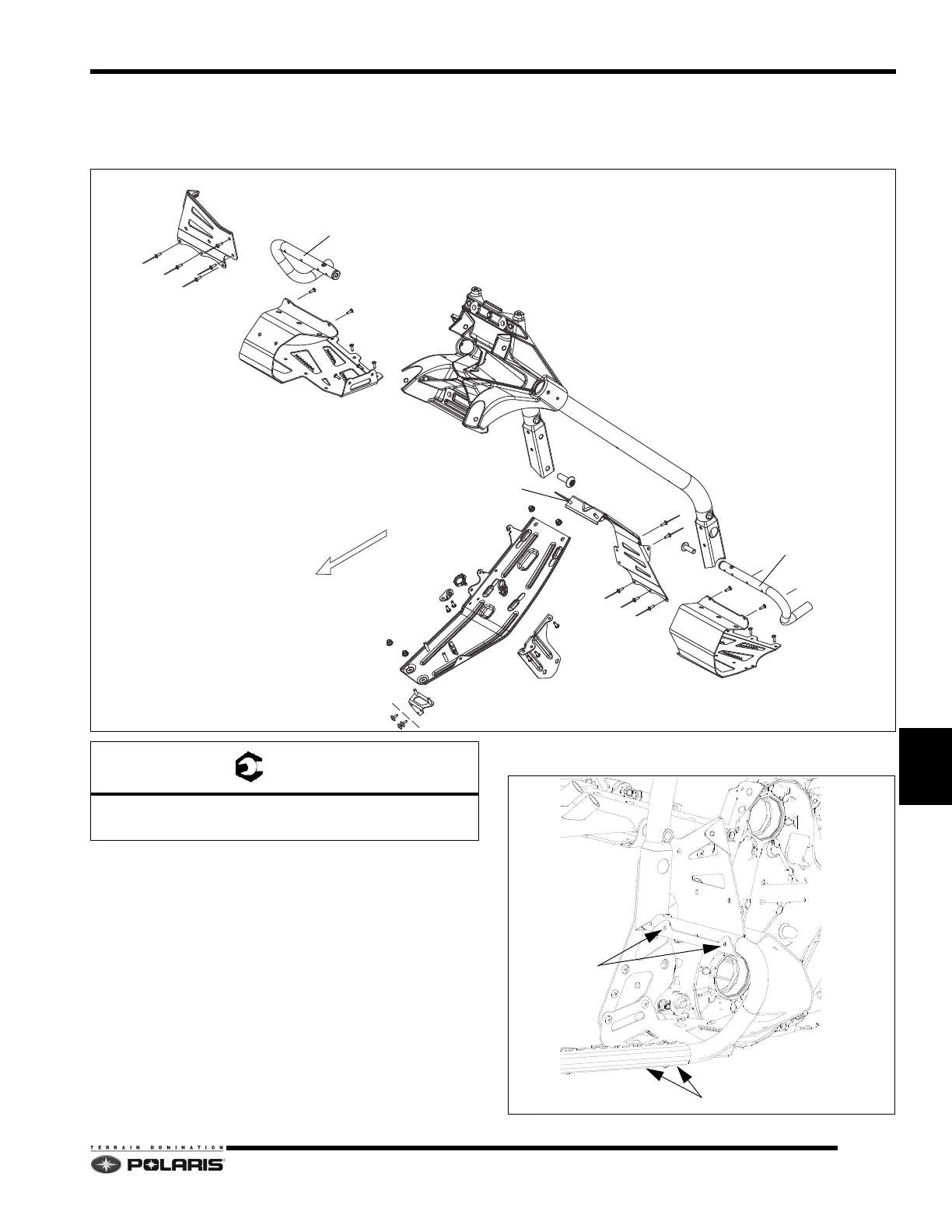

Left/Right Foot Supports - RUSH /
Switchback Models
Assembly Notes:
To remove the rear over structure from the tunnel after all
of
the fasteners are removed, the rivets attaching the
lower footrests to the footrest tubes have to be removed
along with the rivets attaching the footrest tubes to the
tunnel grippers.
After removing the rear over structure, the rivets securing
th
e upper footrest panels to the tubes can be drilled out.
REAR OVER STRUCTURE
FOOTREST TUBE
FOOTREST TUBE
RH UPPER FOOTREST
RH LOWER FOOTREST
LH LOWER FOOTREST
LH UPPER FOOTREST
CLUTCH GUARD
TPS GUARD
A
A
B
A: 22 ft-lbs (30 Nm)
B: 7.4 ft-lbs (10 Nm)
RIVETS
RIGHT SIDE ASSEMBLY SHOWN
RIVETS
