8.23
Steering and Suspensions
8

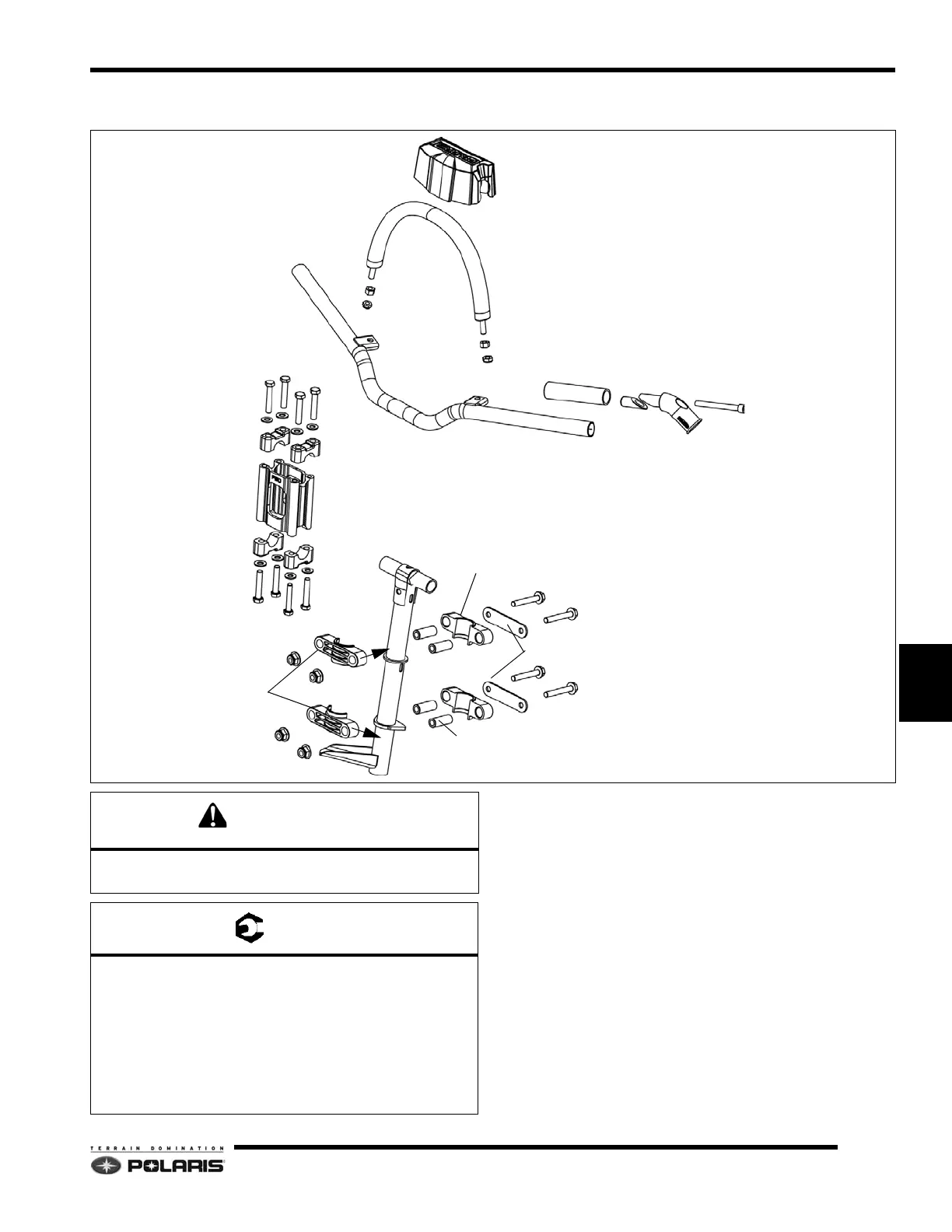

600/800 RMK Upper Steering Assembly
NOTE: Assembly Notes
• Install handlebar riser with FWD facing front of
vehicle.
HANDLEBAR COVER
HANDLEBAR CLAMPS
STEERING STRAPS
STEERING POST
RISER
HANDLEBAR CLAMPS
HANDLEBAR HOOK
CLAMP BUSHINGS
A
B
BUSHING SPACERS
CLAMP BUSHINGS
C
MOUNTAIN BAR
D
D
A
Never re-use lock nuts. Always re-assemble using new
lock nuts.
A: 14.7 ft-lbs (20 Nm)
B: 12 ft-lbs (16 Nm)
C: 18 ft-lbs (25 Nm)
D: 5 ft-lbs (7 Nm)
Throttle Lever Block Screw: 35 in-lbs (4 Nm)
Master Cylinder Screws: 24 i
n-lbs (2.7 Nm)
DO NOT CRUSH HANDLEBAR WHEN TORQUING
S
CREWS.
