4.13
Cleanfire Fuel Injection
4

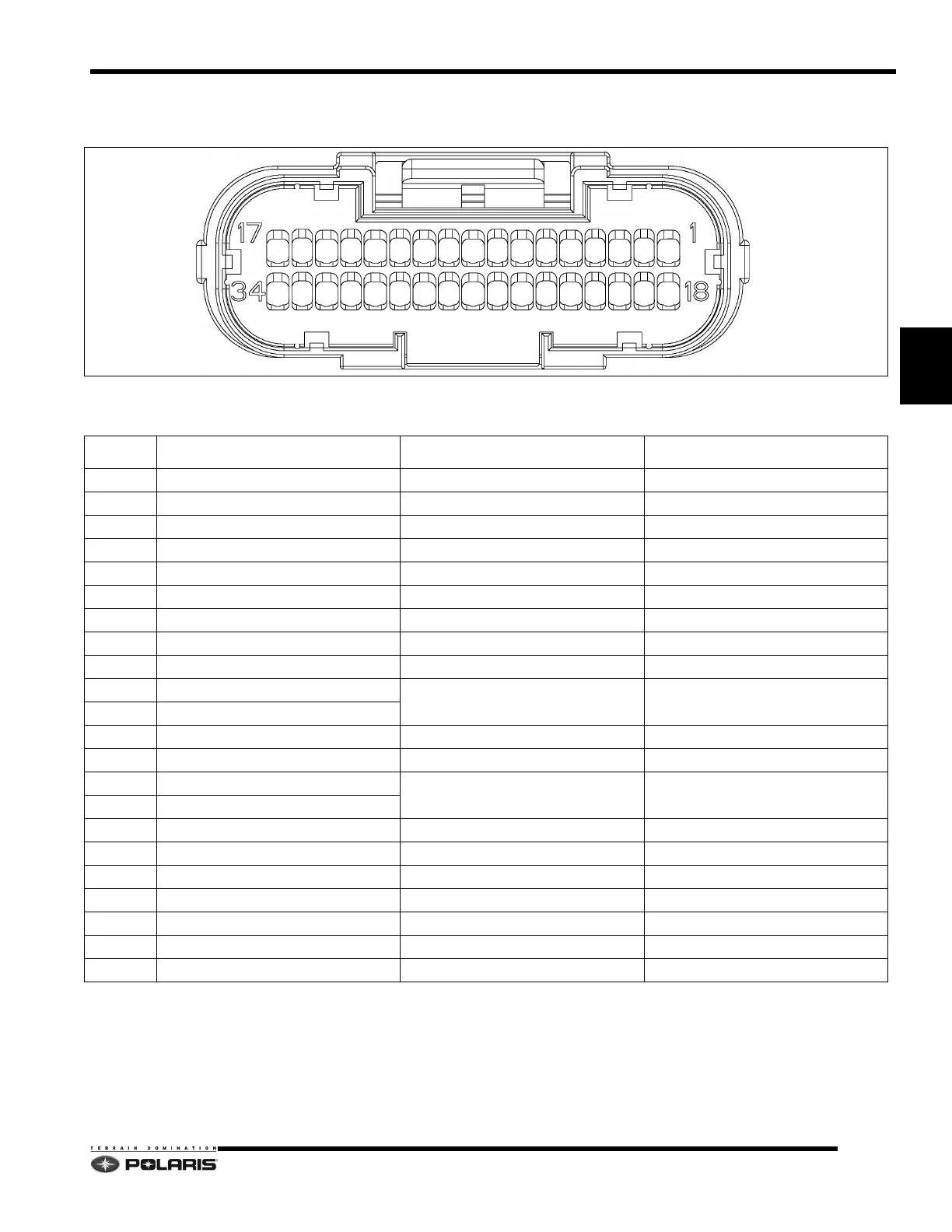

ECU 34 Pin Connector (Chassis)
NOTE: Wire Entry View
PIN COLOR GOES TO CONNECTOR FUNCTION
1 DG/WHT IGNITION SWITCH STARTER LOCKOUT
3 RD/BLK ELECTRIC START BATTERY VOLTAGE
7 BLK/DB SENSOR GROUND SPLICE SENSOR GROUND
8 DG/RD GROUND SPEED SPLICE GROUND SPEED SIGNAL
9 BLACK IGNITION SWITCH HARD STOP SWITCH
10 GRAY LH CONTROL SIGNAL PLUG PERC SWITCH
11 OG/BLK BRAKE SWITCH BRAKE SWITCH SIGNAL
12 VIOLET OIL LEVEL SWITCH LOW OIL SWITCH
14 PK/BLK FUEL MODE PLUG FUEL QUALITY SWITCH
15 BROWN
ECU GROUND SPLICE ECU GROUND
16 BROWN
17 ORANGE EXTERNAL POWER SPLICE EXTERNAL POWER
19 BN/YEL FUEL PUMP PRIME GROUND SPLICE FUEL PUMP ON/OFF CONTROL
20 ORANGE
VOLTAGE BOOST FUEL INJECTION VOLTAGE BOOST
21 ORANGE
25 BK/RED THROTTLE SAFETY SWITCH THROTTLE SOFT STOP
26 OG/WHT SPEED SENSOR CAPACITOR SPEED SENSOR POWER
27 DARK GREEN CAN LOW CAN LOW SIGNAL
28 YELLOW CAN HIGH CAN HIGH SIGNAL
30 WHT/YEL EV SOLENOID SOLENOID ON/OFF CONTROL
33 WHT/DB CHASSIS POWER RELAY RELAY COIL ON/OFF CONTROL
34 RED REGULATOR POWER SPLICE DC REGULATED VOLTAGE
