5.12
Final Drive/Brake System
QUICKDRIVE™ LOW INERTIA DRIVE SYSTEM
Specifications/Torque Guide
Assembly View
COMPONENT TORQUE
Upper/Lower Sprocket
Fasteners
30 ft-lbs (40 Nm)

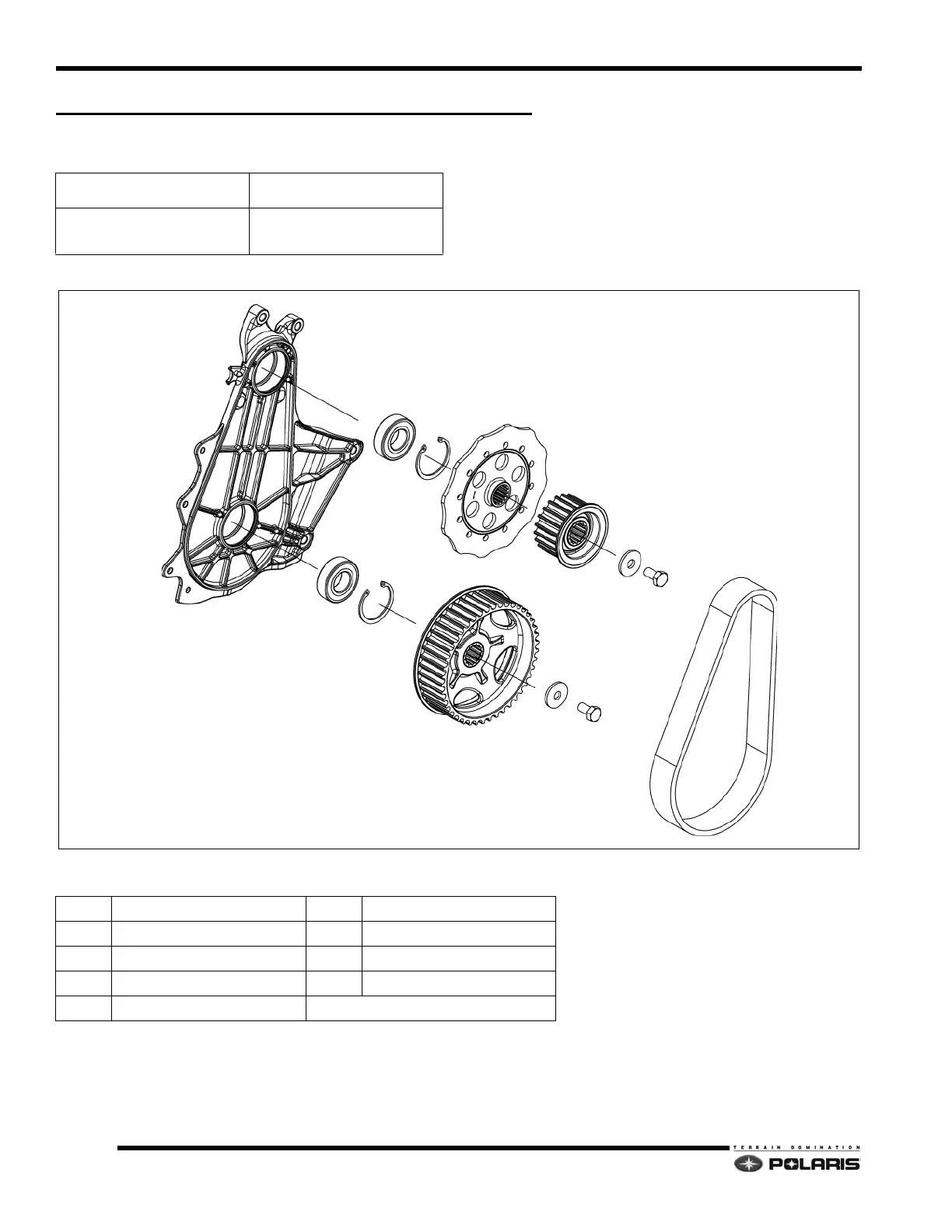

QuickDrive Low Inertia Drive System Assembly
1. Backer Plate 6. Lower Sprocket
2. Sealed Bearings 7. Domed Washers
3. Snap Rings 8. Fasteners
4. Brake Disc 9. Drive Belt
5. Upper Sprocket
1
2
2
3
3
4
5
6
7
7
8
8
9
