Backpanel Locations
The BackpanelLocations section at the bottom of the Network page displays a graphical representation
of the Ethernet ports as they appear on the rear of the system (see Figure 195 below and Figure 196 below).
The diagram indicates the current bonding configuration and connectivity status for all Ethernet ports.
l Ports that are bonded together in an interface are shaded the same color.
l A green border indicates a port is connected to a network.
l A red border indicates a port is configured but is not connected to a network.
l Click UpdatePortView to update the information on the diagram.

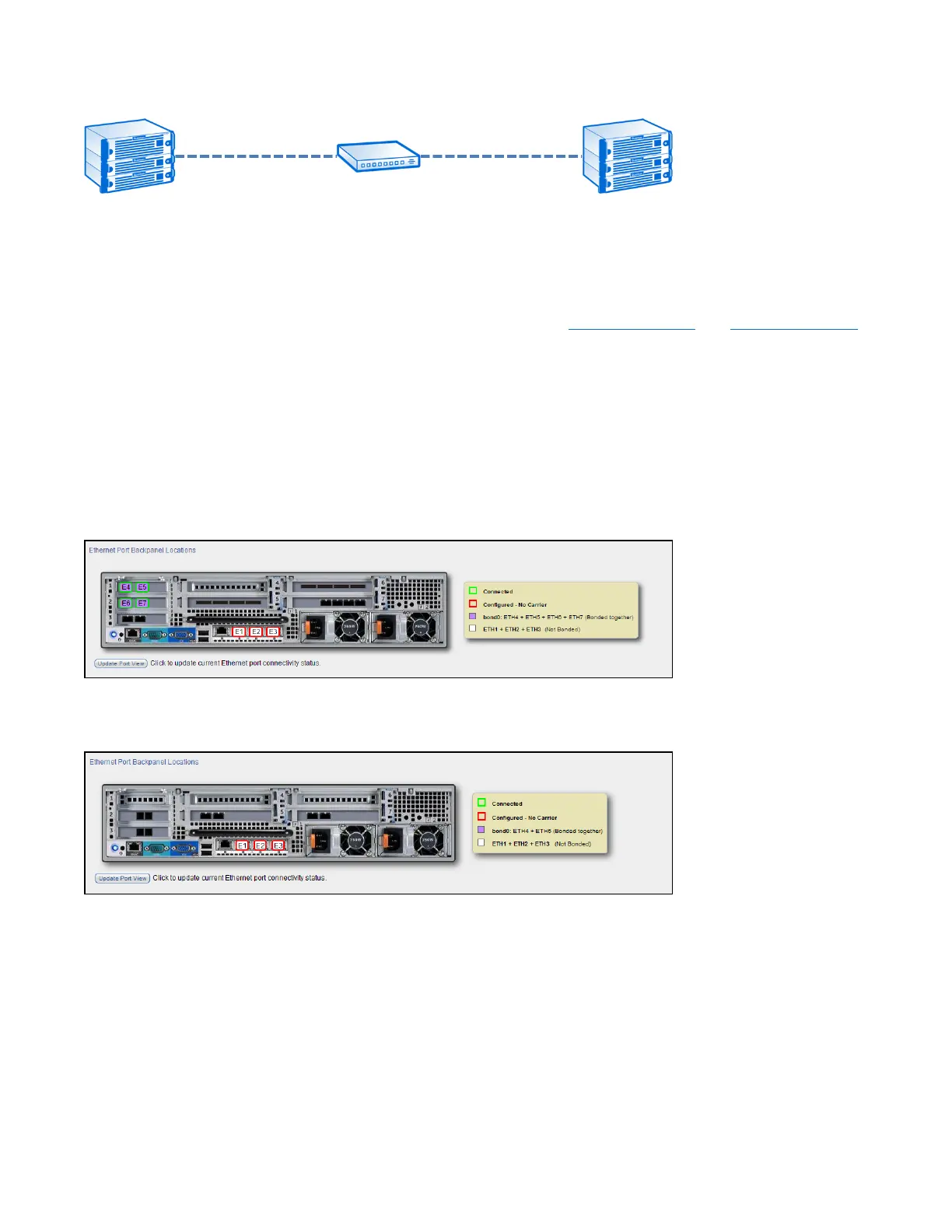

Figure195:DXi6900 G1 Network Page: Backpanel Locations
Figure196:DXi6900 G2 / DXi6900-S Network Page: Backpanel Locations
Date & Time
The Date&Time page allows you to set the system date and time of the DXi6900. You can specify a
Network Time Protocol (NTP) server to synchronize the system time with, or you can manually enter the
date and time.
