Quantum DXi6900 User Manual

Chapter 2: Basic Operations
DXi6900 Array and Expansion Modules
Quantum DXi6900 User’s Guide 59
Expansion Module Rear Panel Indicators
LED indicators and buttons are located on the back of the Expansion modules (EBODs) (see Figure 29
below and Table 1 below).

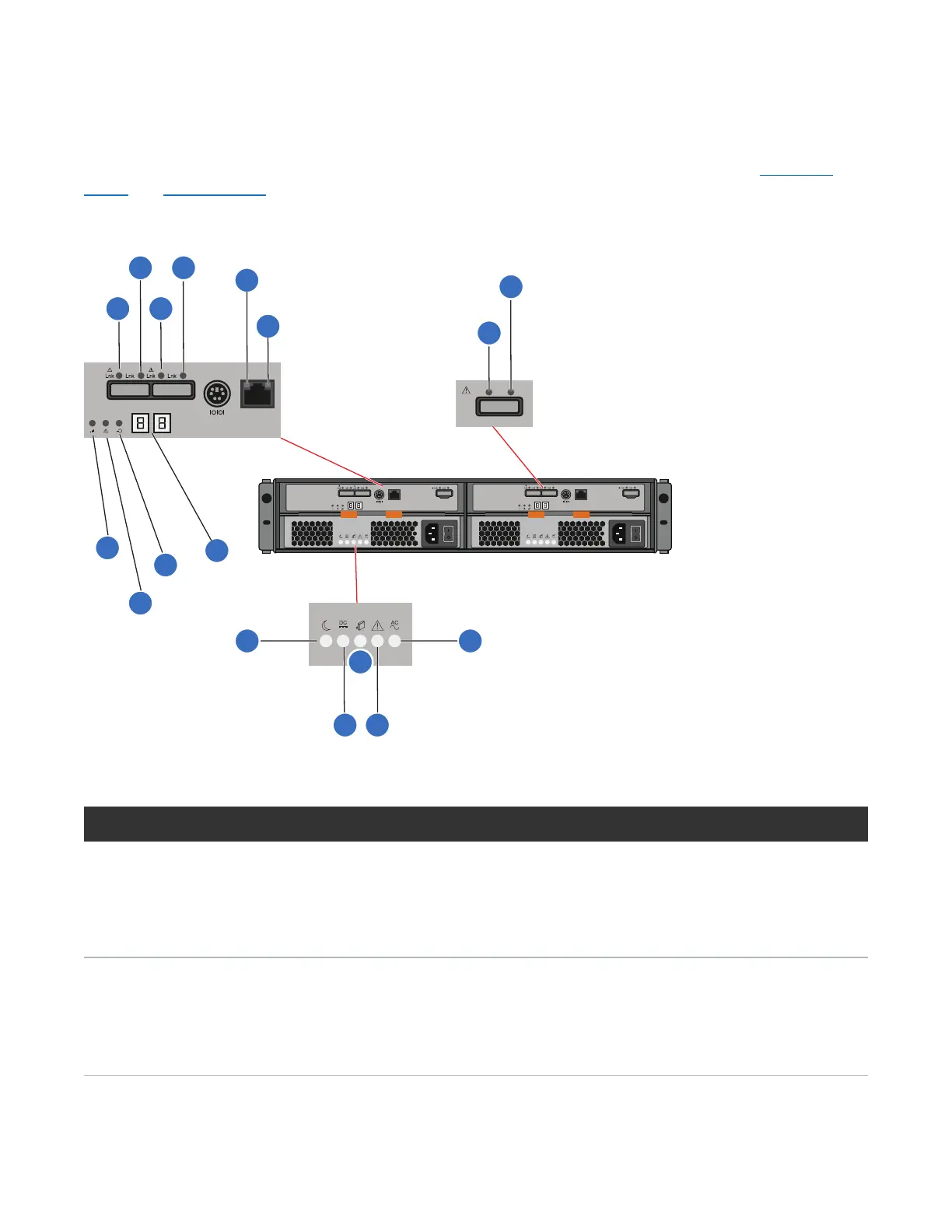

Figure29:Expansion Module LED Indicators – Rear Panel
Lnk Lnk
ID/Diag
Port 1
ID/Diag
Port 1
ID/Diag
Port 1
1
2
3
4
5
6
7
8
9
10
11
12
13
1
1
2
2
Table1:Expansion Module LEDs and Buttons
Items Button/LED Description
1 SAS host/expansion fault (amber) BothOff - cable unplugged.
FaultOffandActivityOn - all links operating.
FaultOnandActivityOff - at least one link active and
at least one link fault.
2 SAS host/expansion activity (green) BothOff - cable unplugged.
FaultOffandActivityOn - all links operating.
FaultOnandActivityOff - at least one link active and
at least one link fault.
