Quantum DXi6900 User Manual

Chapter 2: Basic Operations
DXi6900 Array and Expansion Modules
Quantum DXi6900 User’s Guide 57
Array Module Rear Panel Indicators
LED indicators and buttons are located on the back of the Array modules (RBODs) (see Figure 28 below
and Table 1 below).

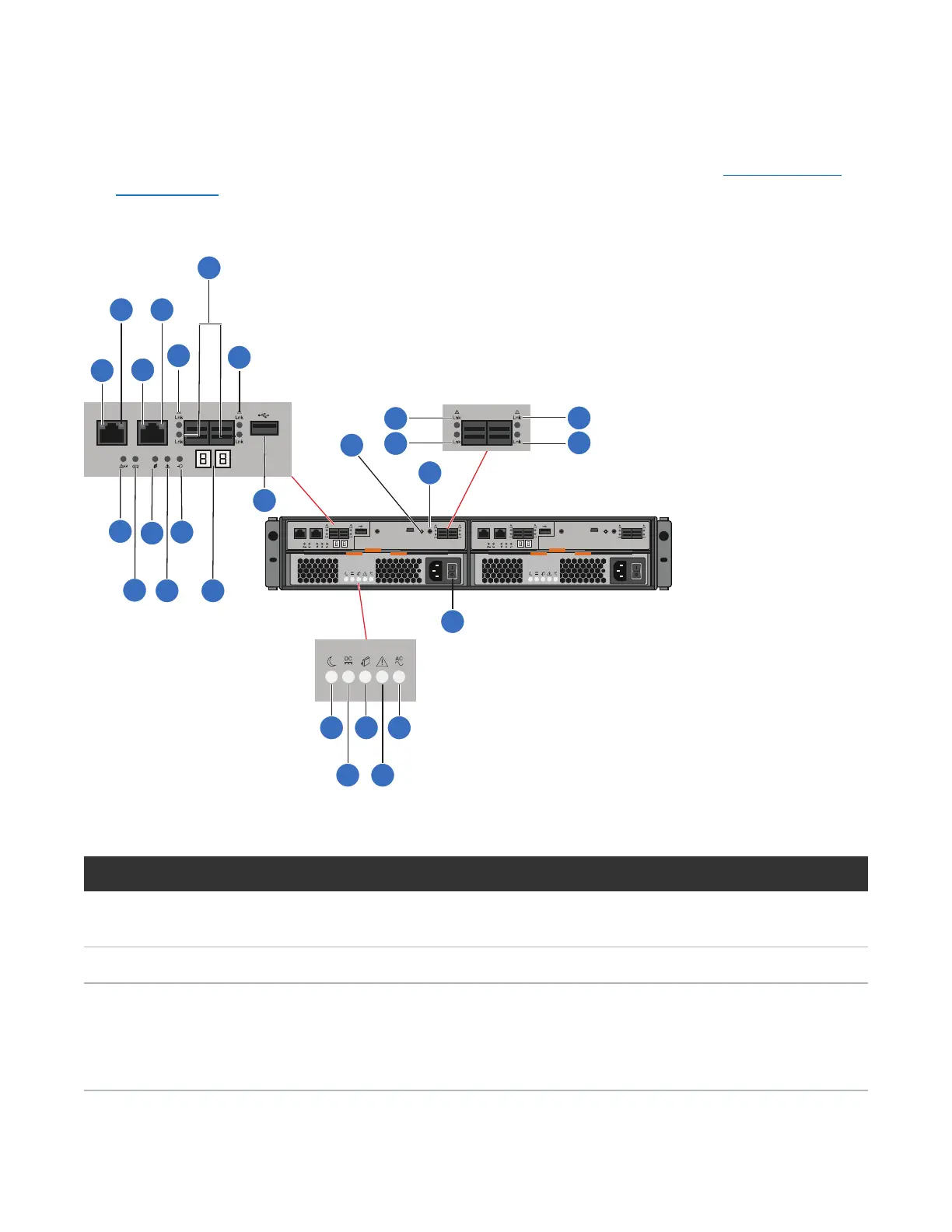

Figure28:Array Module LED Indicators – Rear Panel
Port 1
Port 2
ID/
Diag
|O|O|
Port 1 Port 2
ID/
Diag
|O|O|
Port 1
Port 2
ID/
Diag
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
1
2 2
3
3
3
4
4
Table1:Array Module LEDs and Buttons
Item Button/LEDs Description
1 Ethernet link rate (green) Solid - port speed 1000MB/sec. Off - port speed
10/100MB/sec.
2 Ethernet activity (green) Solid - link established. Blinking - indicates port activity.
3 SAS host/expansion fault (amber) BothOff - cable unplugged. Fault Off and Activity On - all
links operating.
FaultOnandActivityOff - at least one link active and at
least one link fault.
