Chapter 2: Basic Operations
DXi6900 Node
Quantum DXi6900 User’s Guide 53
Linkindicator l Off - Indicates the port is not connected to the network.
l Green - Indicates the port is connected to the network at maximum speed (10
Gbps).
l Amber - Indicates the port is connected to the network at less than its maximum
port speed.
ActivityIndicator l Blinkinggreen - Indicates network data is being sent or received.

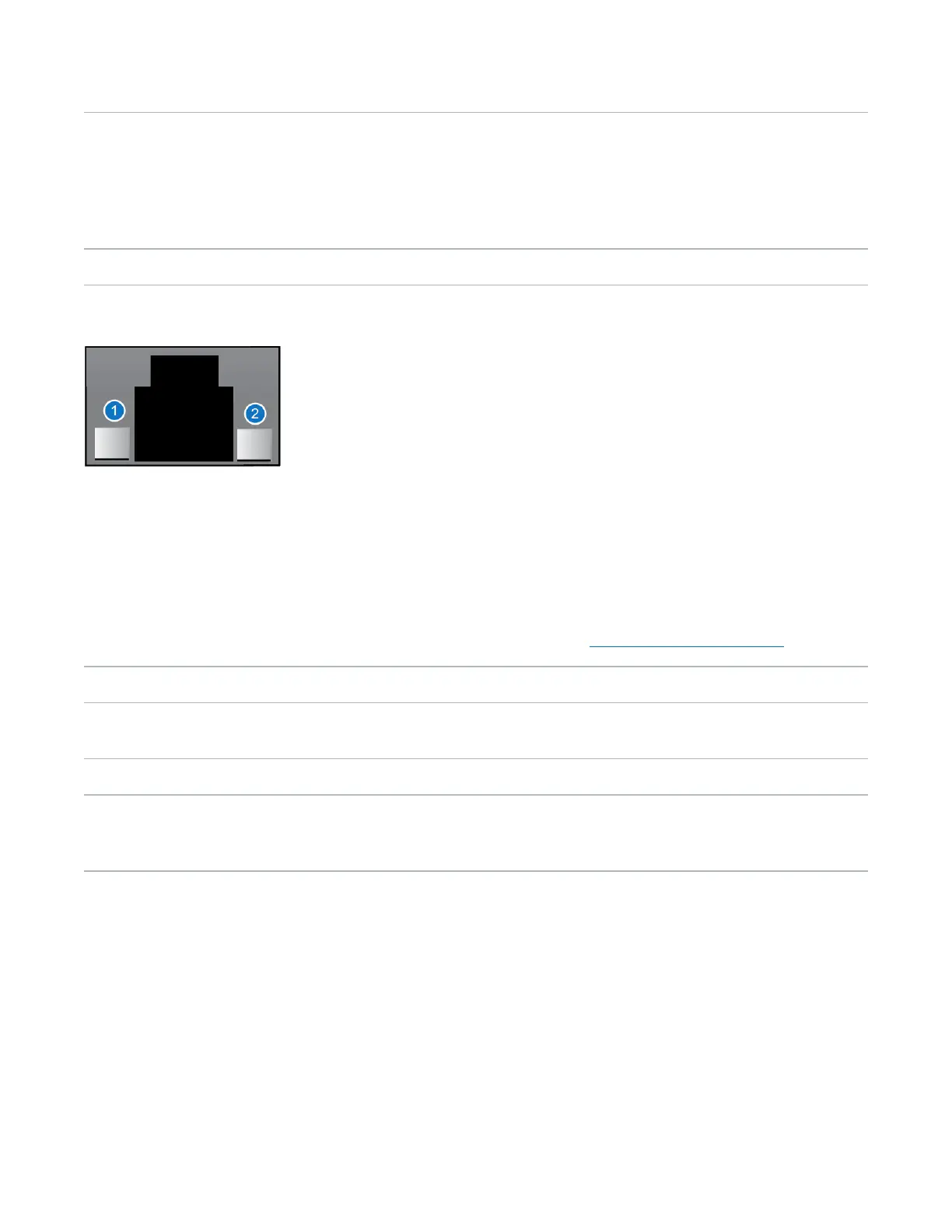

Figure24:DXi6900 - 10 GBase-T Ethernet Port LEDs
1-ActivityIndicator 2-LinkIndicator
DXi6900 Node Power Supply Indicators
Each DXi6900 Node power supply has an illuminated translucent handle that serves as an indicator to show
whether power is present or whether a power fault has occurred (see Figure 25 on the next page):
Notlit Indicates power is not connected.
Green Indicates a valid power source is connected to the power supply and that the power supply
is operational.
Flashingamber Indicates a problem with the power supply.
Flashinggreen When hot-adding a power supply, this indicates that the power supply is mismatched with
the other power supply. Replace the power supply that has the flashing indicator with a
power supply that matches the capacity of the other installed power supply.
All power supplies are hot swappable. When replacing power supplies, never remove more than one power
supply at a time from the system. Also, before you remove one power supply, make sure the other power
supply is operating correctly (indicator handle is green).
