Chapter 2: Basic Operations
DXi6900 Node
Quantum DXi6900 User’s Guide 51
Note:If a drive fails, you will be notified by a service ticket in the remote management console (see
Service Tickets on page 197).
Caution:Do not remove a drive that has not failed. Instead, only remove a drive that has failed. If you
accidentally remove a good drive, wait 30 seconds before reinserting the drive.

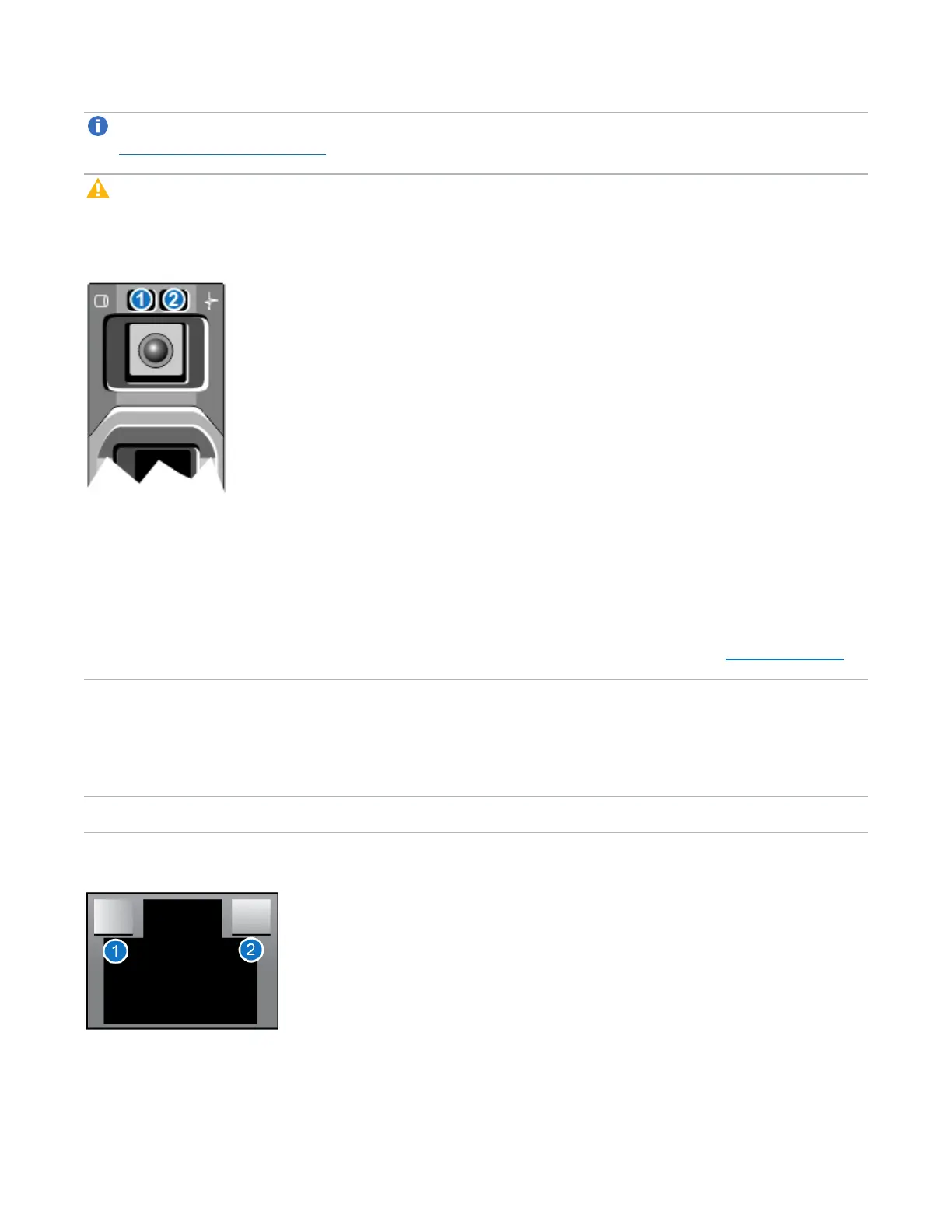

Figure21:DXi6900 Hard Drive Carrier LEDs
1-Driveactivityindicator(green) 2-Drivestatusindicator(greenandamber)
DXi6900 Node 1 GbE Ethernet
Each 1 GbE Ethernet port on the DXi6900 Node rear panel has two LED indicators (see Figure 22 below):
Linkindicator l Off - Indicates the port is not connected to the network.
l Green - Indicates the port is connected to the network at maximum speed (1Gbps).
l Amber - Indicates the port is connected to the network at less than its maximum port
speed.
ActivityIndicator Blinkinggreen - Indicates network data is being sent or received.
Figure22:DXi6900 Node - 1 GbE Ethernet Port LEDs
1-LinkIndicator 2-ActivityIndicator
