4.2. Unpacking
Carefully remove the moisture analyzer from its packaging, remove the
plastic and foil transport protective elements. Gently place the moisture
analyzer in its intended place of use.
Assembly the components of drying chamber, following guidelines from below
figure:

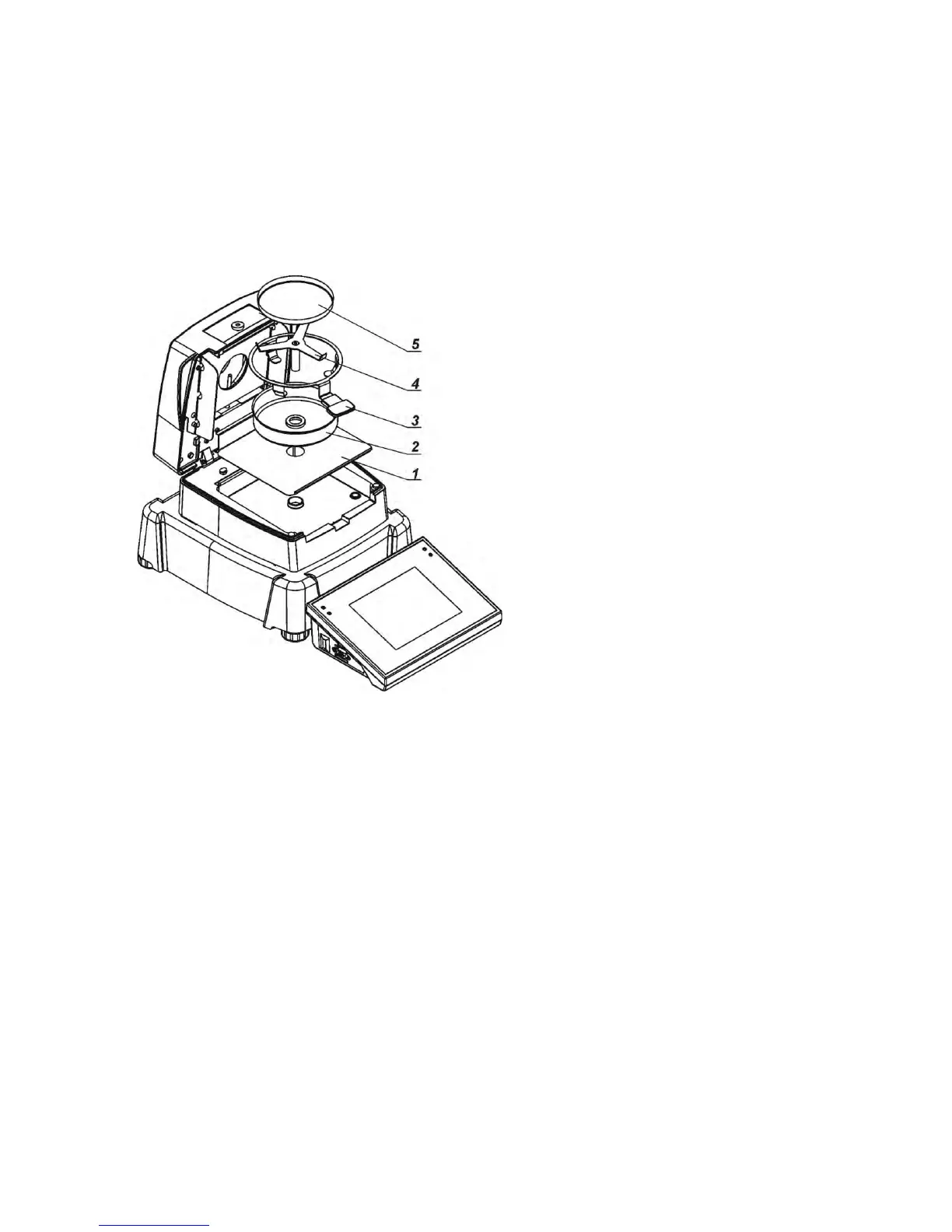

Assembling moisture analyzer components:
1. Assembly drying chamber
base insert
2. Assembly drying pan shield,
3. Assembly drying pan handle,
4. Assembly cross-shaped
holder,
5. Assembly the disposable pan.
Setting drying pan’s supporter (cross-shaped holder).
