152
-

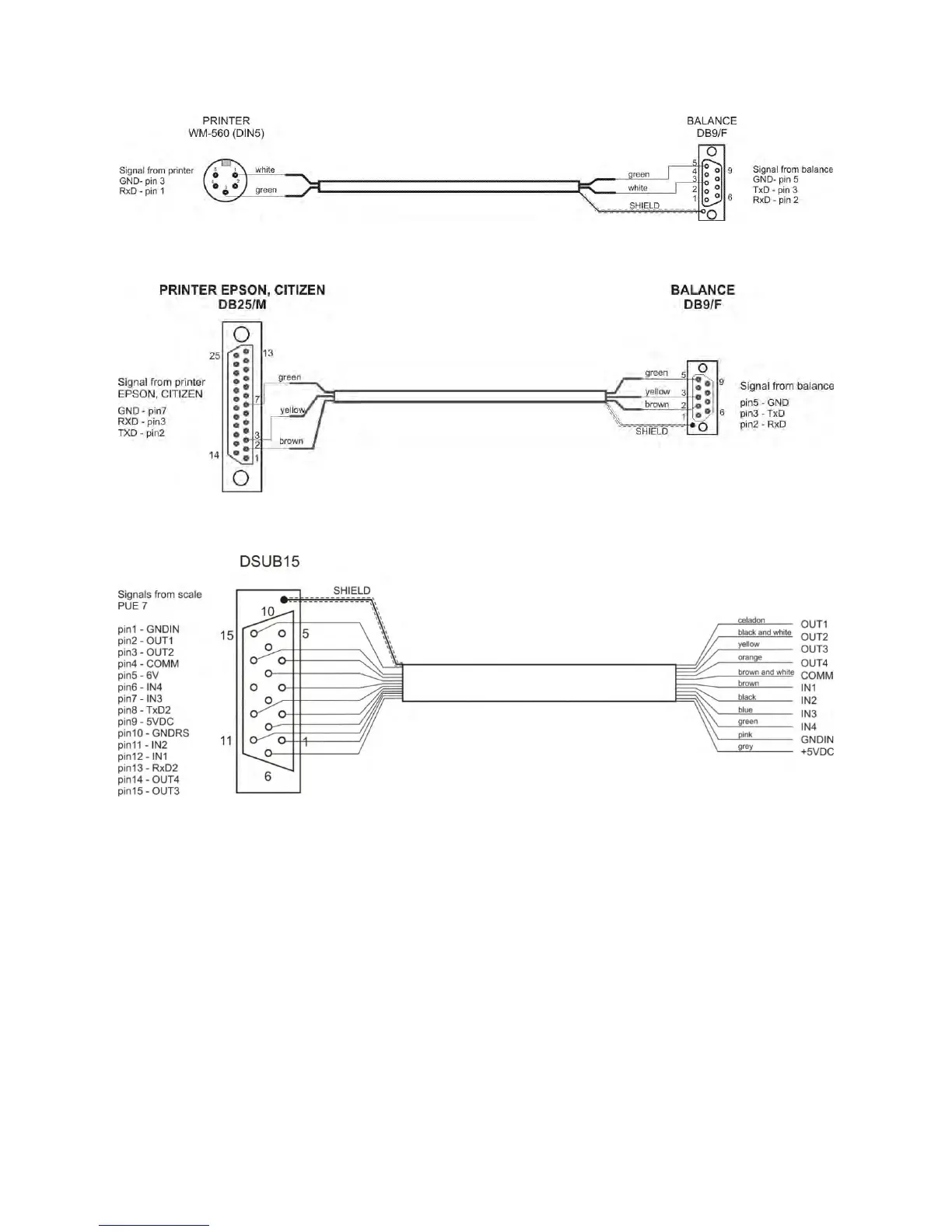

Cable:
moisture analyzer
-
computer
(RS232)
Cable:
moisture analyzer
-
printer
KAFKA
Cable:
moisture analyzer
–
printer
EPSON
Cable: IN / OUT
30.
ERROR MESSAGES
Err2
-
Value beyon
d zero range,
Err3
-
Value beyon
d tare range,
Err8
-
Tarring /
Zeroing operation time ex
ceeded,
-
NULL
-
-
Zero value from convert
er,
-
FULL
- -
Measuremen
t range (Max. capacity)
exceeded,
-
LH
-
St
art mass error
,
-
no level
-
moisture analyze
r is not leveled
151
153
