supporter (cross-shaped holder)
pay special attention to the
correct positioning of its
mandrel. The mandrel features a
cut for its unique positioning
against the pan handle, thus
preventing their contact and
friction.

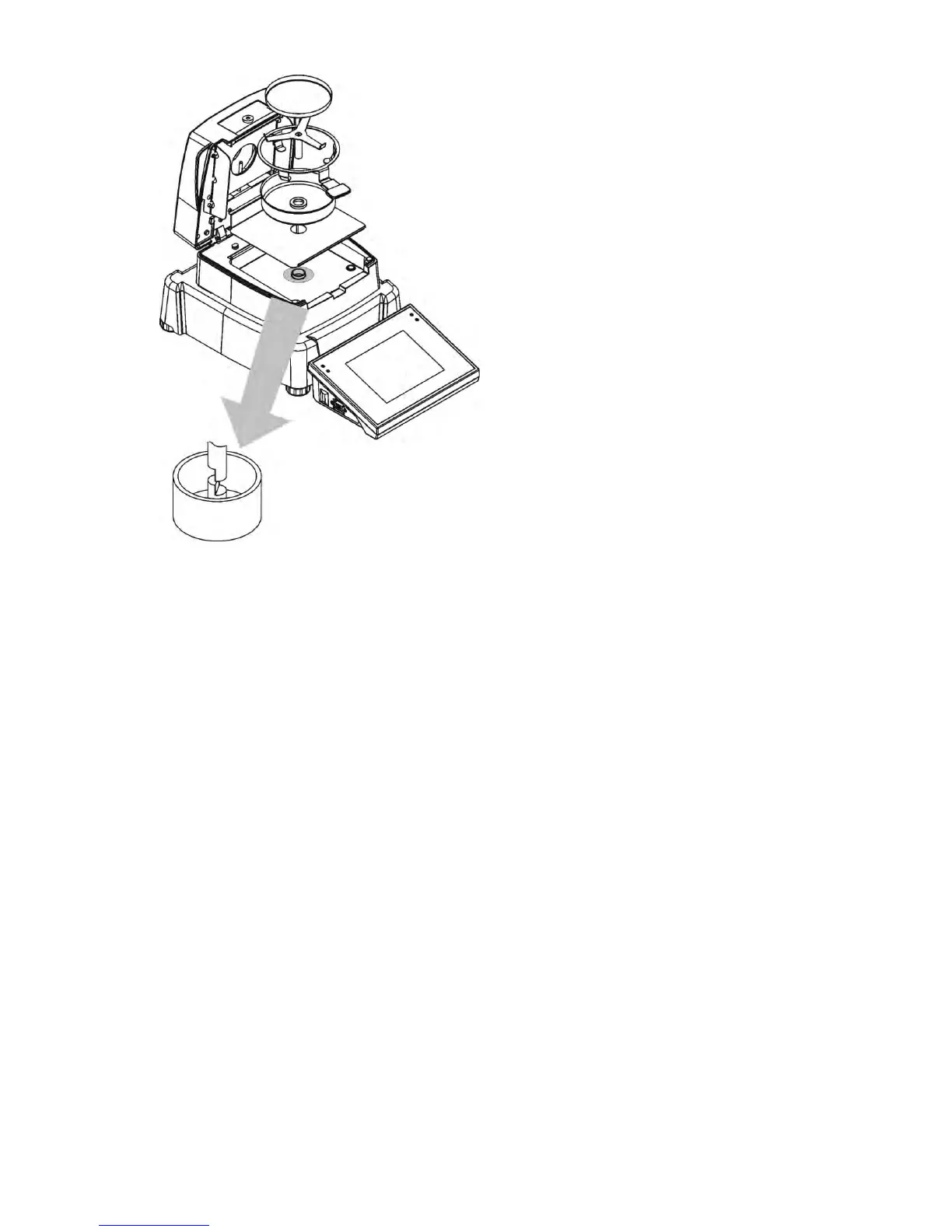

Setting cross-shaped holder:
- On assembling the pan holder
onto the mandrel, turn the
holder slightly, so that the cut
on the mandrel is located in
its unique and correct
position,
- When turning the mandrel use
most gentle movements not
to damage moisture
analyzer’s measuring system.
4.3. Level setting
The moisture analyzer MA 3Y series features an electronic level control
system (and thus no external level). After software startup enter the leveling
application and follow moisture analyzer prompts to carry out the leveling
procedure.
Means of moisture analyzer leveling is described further in this user manual
(see point 11.3).
4.4. Standard delivery components
• A moisture analyzer MA 3Y series.
• Insert of drying chamber basis.
• Drying chamber shield.
• Drying pan handle.
• Drying pan cross-shaped holder.
• Disposable pan.
• Power cord.
• Protective cover
• Cable P0108 for connecting moisture analyzer and computer
• User manual (CD).
