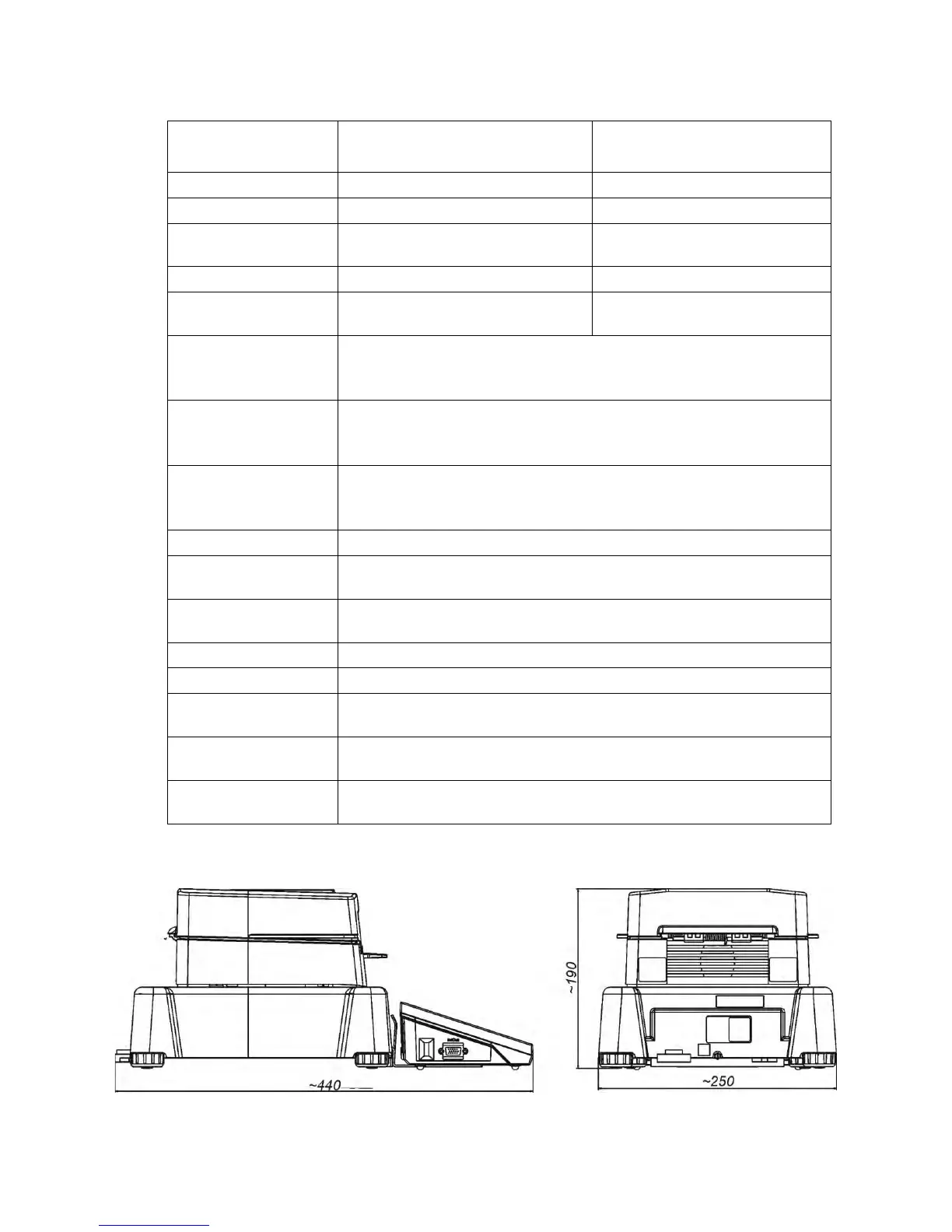

- 7 -
1.
TECHNICAL
SPECIFICATION
Type
MA 60.3Y
MA 200.3Y
Reading unit
0.1 mg
1 mg
Max. capacity
60
g
200
g
Moisture re
ading
accuracy
0,0001%
0,001%
Tare range
-
60
g
-
200
g
Max. sample
mass
60
g
200
g
Repeatability of
moisture content
reading
+/
-
0,05% (sample ~ 2g), +/
-
0,01% (s
ample ~10g)
Heating modul
e
Halogen
Infrared emitter
Metal heater
Drying
temperature
range
Max 160 °C (infrared em
itter or metal
heater)
Max 250 °C (halogen)
Drying modes
4 modes: standard, quick, st
ep, mild
Auto switch off
option
4 modes: time
-
defined, defined,
automatic
, manual
Working
temperature
+10 °C ÷ +40 °C
Power supply
230V 50Hz AC / 420W
Display
Touch screen display
Drying chamber
dimensions
120 x 120 x 20 mm
Net weight /
gross weight
6 / 10 kg
Packaging
dimensions
595 x 395 x 420 mm
6
8
Table of Contents
Default Chapter
3
Table of Contents
3
1 Technical Specification
7
2 General Safety Information
8
Definitions of Signals and Warning Signs
8
Warning Descriptions
8
Warning Signs
8
Safety Information
9
Intended Use
10
Inappropriate Use
11
Principles of Safety Use
11
Warranty
12
Monitoring Metrological Parameters of the Instrument
12
Data Included in this User Manual
12
Staff Competence
13
Protective Clothing
13
3 Transport and Storage
14
Delivery Check
14
Packaging
14
4 Unpacking, Assembling and Startup
14
Assembling and Place of Use
14
Unpacking
15
Level Setting
16
Standard Delivery Components
16
Cleaning
17
Plugging to Mains
17
Connecting Peripheral Equipment
17
Interfaces
17
Balances with a Wireless Connection between the Terminal and the Weighing Module (an Option)
18
5 Startup
21
Temperature Stabilization Period of Time
22
Moisture Analyzer Switching off
22
6 Keyboard - Function Keys
22
7 Software Structure
24
8 Software Main Window
25
Weighing Window
25
Drying Window
26
Drying Result
27
9 Logging
28
10 Operating User Menu
30
Terminal's Keyboard
30
Return to Weighing Mode
31
11 Weighing
31
Selection of Measuring Unit
31
Means of Correct Weighing Procedure
32
Leveling
33
Zeroing
34
Tarring
34
Additional Parameters on Weighing Process
35
Minimum Sample Weight
37
Cooperation with Titrators
41
12 Adjustment
42
External Adjustment
42
User Adjustment
43
Temperature Adjustment
43
Adjustment Report Printout
50
GLP Project
50
Adjustment History
50
13 Users
52
14 Access Level
53
15 Profiles
55
Creating a Profile
55
Profile Structure
56
Settings
57
Working Modes
57
Readout
57
Measuring Units
59
16 WORKING MODES - General Information
60
Working Mode Selection
60
Parameters Related to a Working Mode
61
Quick Access Keys
61
Proximity Sensors
62
Information
62
Printouts
63
Profiles
65
17 Drying Process - General Information
65
Sample Preparation for Drying
66
Means of Moisture Content Measurement on a Moisture Analyzer
66
Sampling and Preparation
66
Sample Distribution on Drying Pan
68
Selection of Drying Parameters
69
Selecting Optimum Sample Mass
69
Influence of Sample Mass on Measurement Result Repeatability
69
Drying Temperature
69
Selecting Drying Mode
70
Drying Time
71
18 Drying Process
72
Working Mode Activating Procedure
72
Setting Drying Parameters
73
Using Fields Visible in the Main Display Section
73
Use of Menu <Settings
79
Using Database of Drying Programs
82
Printouts in Drying Mode
83
Report from Completed Drying Process
86
Means of Carrying out Drying Process
87
Chart of Drying Process
92
19 Databases
94
Processes Carried out on Databases
95
Products
96
Weighing Records
97
Clients
98
Drying Program
99
Reports from Drying Process (Drying Reports)
99
Statistics from Drying Process Reports
101
Minimal Sample Weight
103
Ambient Conditions
104
Packages
105
Warehouses
105
Printouts
106
Universal Variables
108
Database Operation
108
Export Database of Weighing Records to File
109
Delete Database
110
Delete Weighments and Reports
111
20 Communication
113
RS 232 Port Settings
113
ETHERNET Port Settings
113
Wifi Settings
114
TCP Protocol Settings
115
21 Peripheral Devices
117
Computer
117
Printer
118
Barcode Scanners
119
Barcode Scanner's Port
120
Prefix/Suffix
120
Field Selection
120
Test
122
Transponder Card Scanner
122
Additional Display
123
22 Inputs / Outputs
124
23 Other Parameters
126
Interface Language
126
Data and Time Setting
126
Beep" Sound
127
Volume
127
Sleep Mode
127
Display Brightness
127
Touch Screen Display Calibration
128
Level Control
128
Drying Temperature Reducing
129
Compatibility with MAC/MAX Series
129
Sensors Sensitivity
130
Proximity Sensors Delay
130
Autotest
130
Start Logo
131
Export System Events
131
24 Update
131
25 System Information
132
26 Movies
133
27 Communication Protocol
135
A Set of Commands
135
Responses Format for Commands Sent from Computer Level
137
Manual Printout / Automatic Printout
150
28 Connecting Peripheral Devices
151
29 Diagrams of Connecting Cables
151
30 Error Messages
152
31 Moisture Analyzer Maintenance Activities
153
Cleaning Moisture Analyzer Components
153
Temperature Sensor Cleaning
154
Replacing the Fuses
155
Troubleshooting
156
32 Additional Equipment
157
33 APPENDIX A - Variables for Printouts
158
List of Variables
158
Variables Formatting
167
34 APPENDINX E - Settings of ZEBRA Printers
169
35 APPENDIX F - Communication with Barcode Scanners
170
36 APPENDIX G - Menu Structure
171
