- 18 -

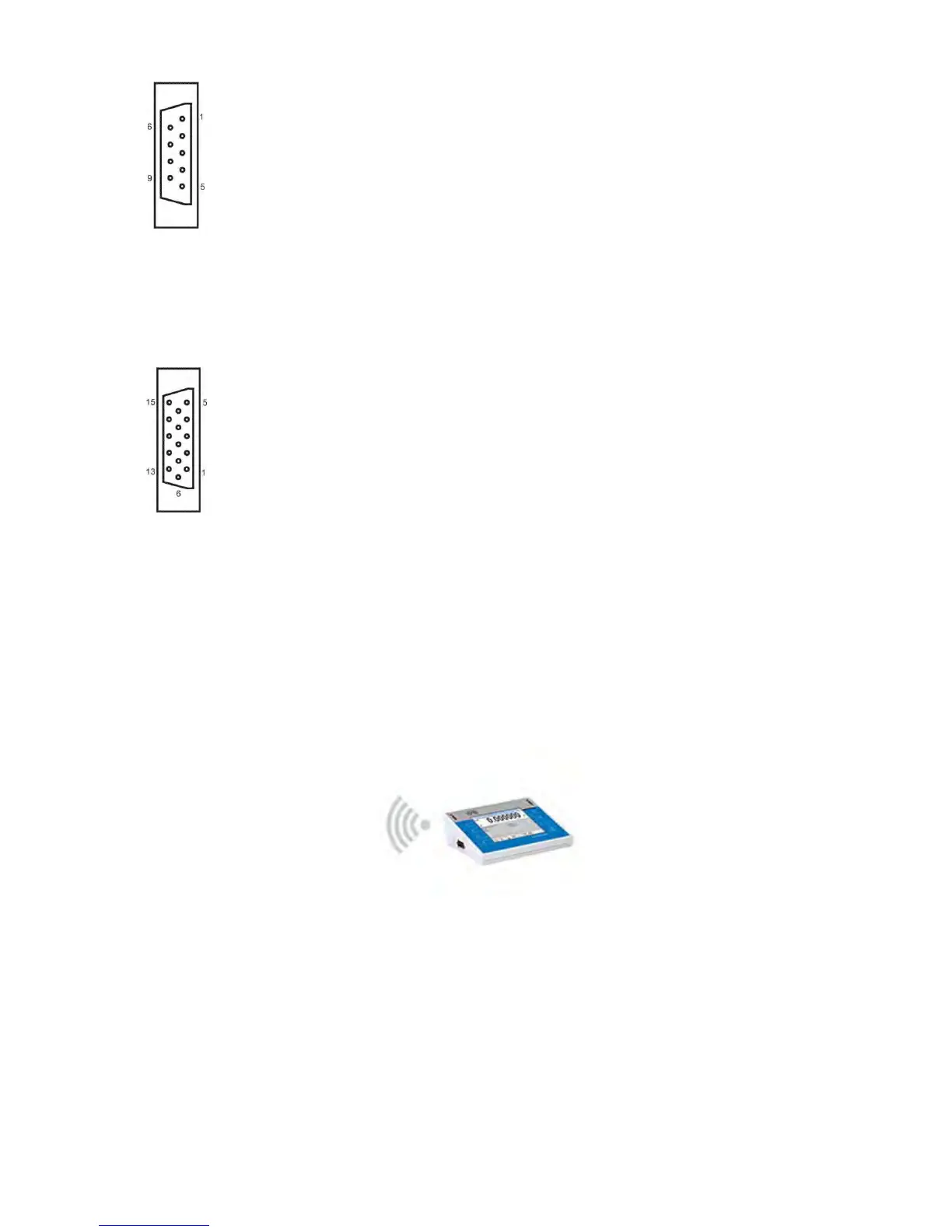

RS232 - socket DB9/M (male), front view:
Pin2 - RxD
Pin3 - TxD
Pin5 - GND
IN/OUT, RS232 socket DSUB15/F (female), front view:
Pin1 - GNDWE
Pin2 - OUT1
Pin3 - OUT2
Pin4 - COMM
Pin5 - 6÷9VDC
Pin6 - IN4
Pin7 - IN3
Pin8 - TxD2
Pin9 - 5VDC
Pin10 - GNDRS
Pin11 - IN2
Pin12 - IN1
Pin13 - RxD2
Pin14 - OUT4
Pin15 - OUT3
4.9. Balances with a wireless connection between the terminal and
the weighing module
(an option)
The terminal operates on bateries, wireless connection ensures its cooperation
with the weighing module. This, in contrast to a standard design, allows to
eliminate cable connecting the devices.
Wireless connection solution is marked by letter <B>, eg. MA 50.3Y.B.
Features:
Maksimum range: 10 m
Maxumum operation time of the terminal (without the necessity to charge
baterries): 8 h
