18.13Cartographyobjects

Chartdetail

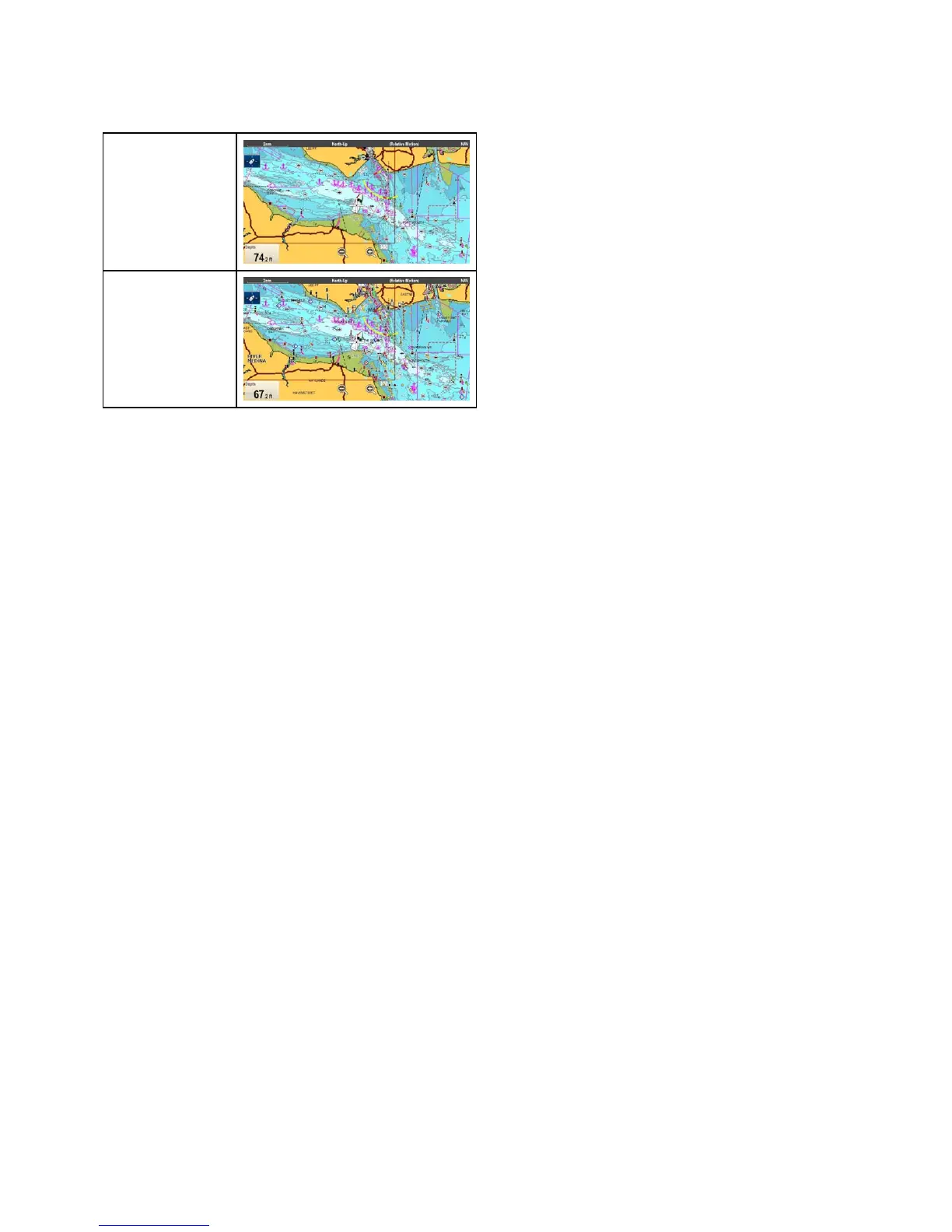

Thechartdetailsettingdeterminestheamountof

detailshownintheChartapplication.

Low

High

SelectingtheLowoptionfortheChartDetail

disablesthefollowingobjectsandoverlays:

•2DShading

•CommunityEdits

•ChartText

•ChartBoundaries

•LightSectors

•RoutingSystems

•CautionAreas

•MarineFeatures

•LandFeatures

•PanoramicPhoto

•Roads

•AdditionalWrecks

•ColorSeabedAreas

•DepthContours

Changingthelevelofchartdetail

Fromthechartapplicationmenu:

1.SelectPresentation.

2.SelectObjects.

3.SelectChartDetailtoswitchbetweenHighor

Low,asappropriate.

Chartapplication

241
