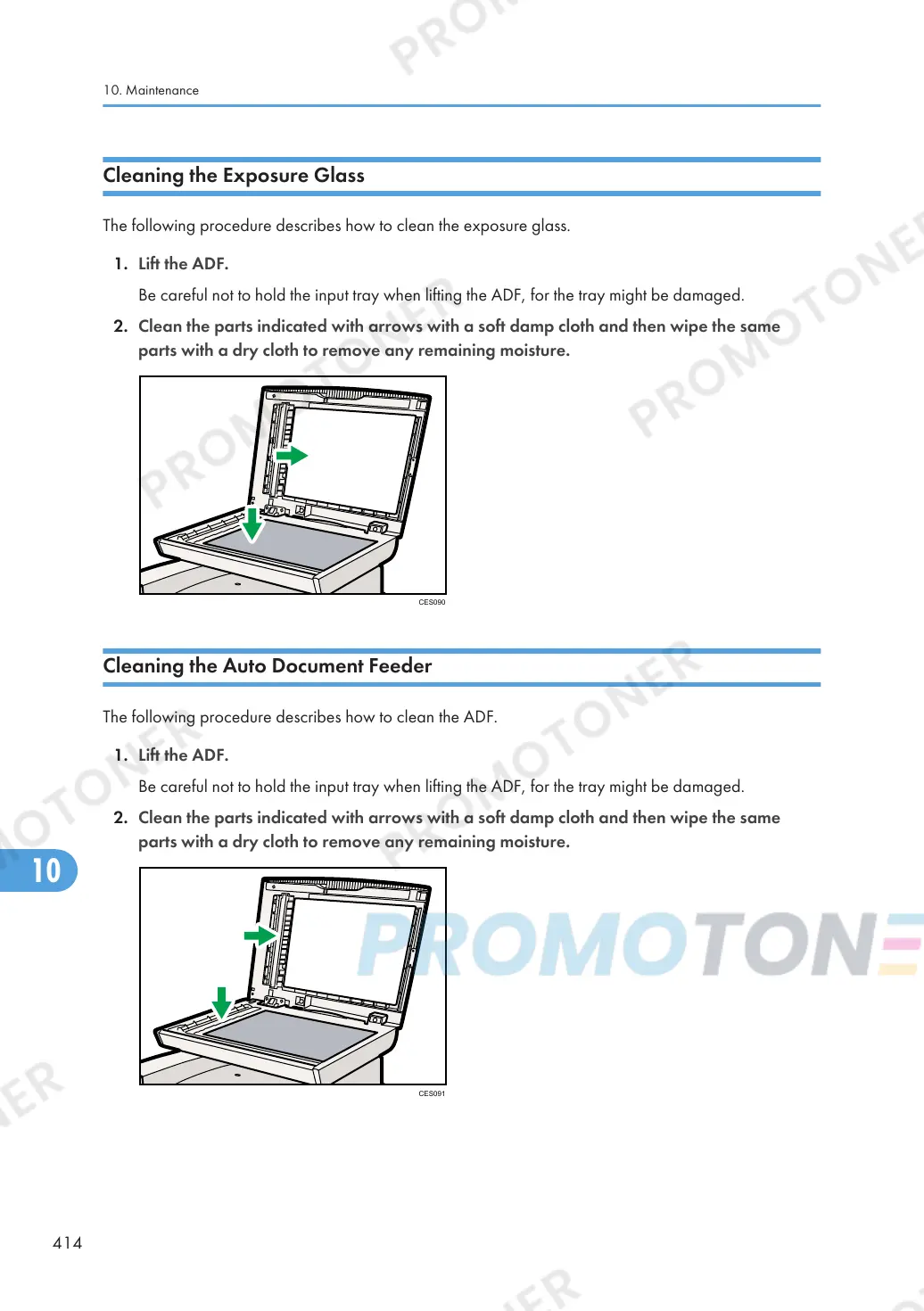

Cleaning the Exposure Glass
The following procedure describes how to clean the exposure glass.
1. Lift the ADF.
Be careful not to hold the input tray when lifting the ADF, for the tray might be damaged.
2. Clean the parts indicated with arrows with a soft damp cloth and then wipe the same
parts with a dry cloth to remove any remaining moisture.
CES090
Cleaning the Auto Document Feeder
The following procedure describes how to clean the ADF.
1. Lift the ADF.
Be careful not to hold the input tray when lifting the ADF, for the tray might be damaged.
2. Clean the parts indicated with arrows with a soft damp cloth and then wipe the same
parts with a dry cloth to remove any remaining moisture.
CES091
10. Maintenance
414
10
