Chapter 6 Operations and Measurements RIGOL
DS4000E User’s Guide 6-43
Track Mode
In this mode, when adjusting the X cusors horizontally, the Y cursors will
automatically track the vertical amplitude at the X cursors of the correspionding
source channel waveform. The crossing points of X cursors and Y cursors are marked
by an orange rectangle (cursor A) and rhombus (cursor B). When the cursors are
moved horizontally, the marks will position on the waveform automatically. When the
waveform is expanded or compressed horizontally, the marks will track the points
being marked at the last adjustment of the cursors.
Note: The source channels available include CH1 to CH4 and MATH. Only channels
currently turned on can be selected.

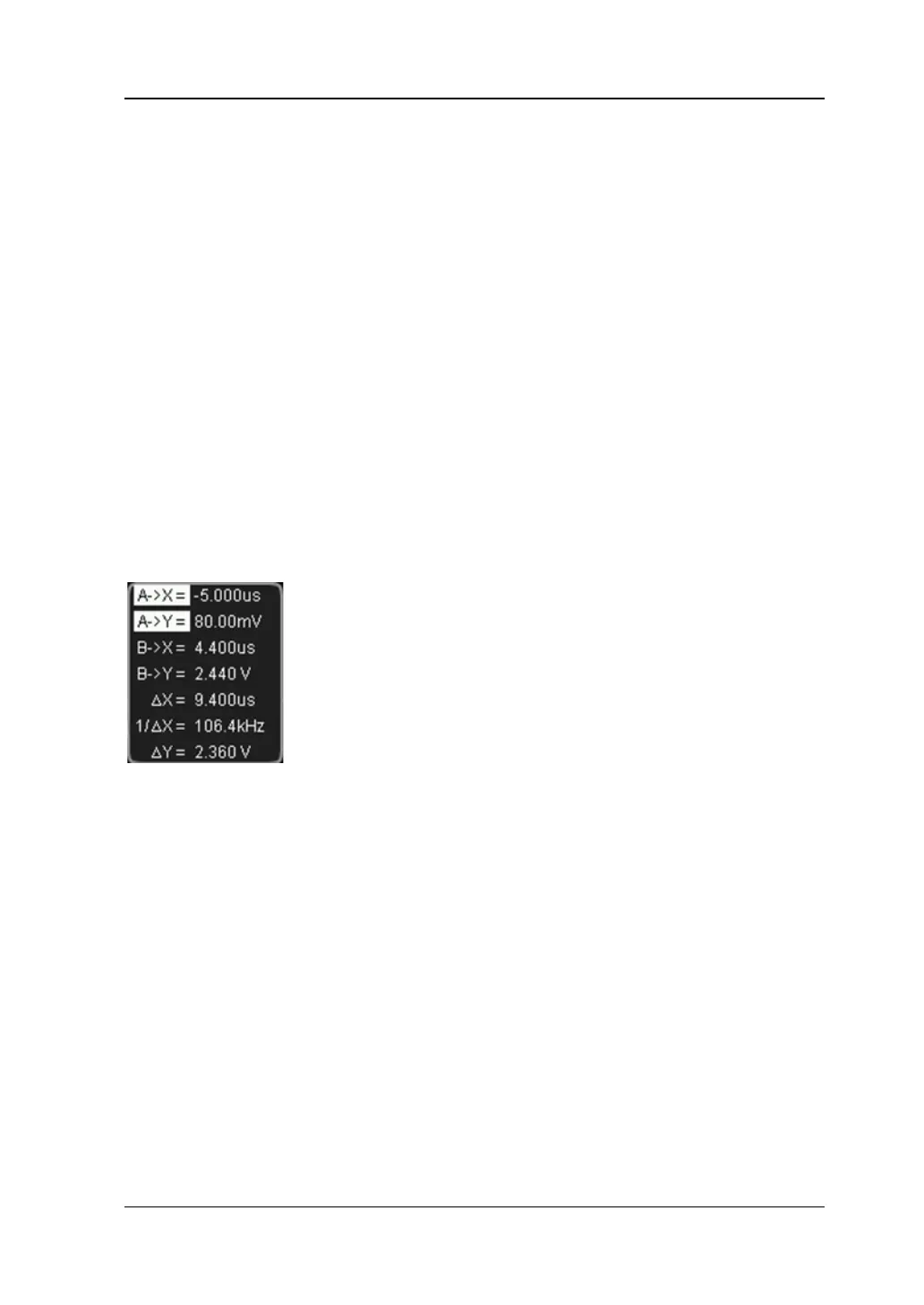

The measurement results are as shown in the figure below and will be displayed on
the upper-left side of the screen. When the measurement parameters are changed,
the measurement results will change accordingly.
 A->X: the X value at cursor A (X cursor).
 A->Y: the Y value at cursor A (Y cursor).
 B->X: the X value at cursor B (X cursor).
 B->Y: the Y value at cursor B (Y cursor).
 △X: the horizontal difference between cursors A and B (X cursors).
 1/△X: the reciprocal of the horizontal difference between cursors A and B (X
cursors).
 △Y: the vertical difference between cursors A and B (Y cursors).
