Rigol DS4024E User Manual

RIGOL Chapter 11 Display Control
11-2 DS4000E User’s Guide
To Specify the Display Type
Press Display to open the display menu and press Type to set the waveform display
mode to “Vectors” or “Dots”.
 Vectors: the sample points are connected by lines and displayed. Normally, this
mode can provide the most vivid waveform to view the steep edge of the
waveform (such as square waveform).
 Dots: display the sample points directly. You can directly view each sample point
and use the cursor to measure the X and Y values of the sample point.
To Set the Persistence Time
Press Display  PersistTime and turn the multi-function knob to select the
desired persistence time. You can also press PersistTime continuously to switch the
current persistence time. You can select Min, specific values (from 50 ms to 20 s at
1-2-5 step) or Infinite.

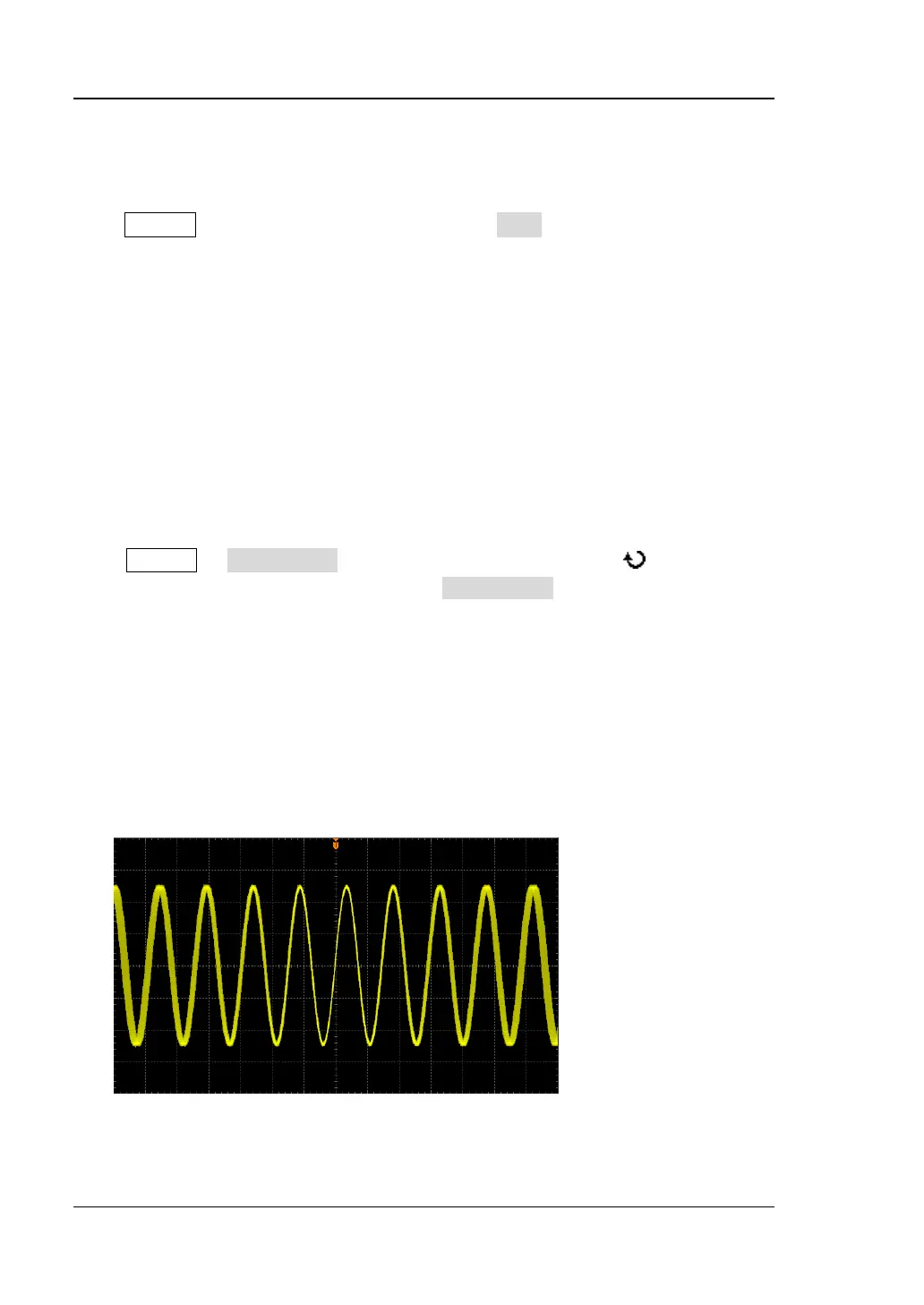

In the following part, a frequency sweep signal of the sine waveform is used to
demonstrate the waveform effects in different persistence times.
1. Min
Enable to view waveform changing in high refresh rate.
