Remote Interface Configuration
DS4000E can communicate with PC via LAN, USB and GPIB (with the USB-GPIB
interface converter provided by RIGOL) buses. Please refer to the introductions
below to configure the corresponding interfaces before using the remote interfaces.
To Configure the LAN Interface
Before using the LAN bus, connect the oscilloscope to your local area network using
the network cable. The network hole of the oscilloscope is at the rear panel.

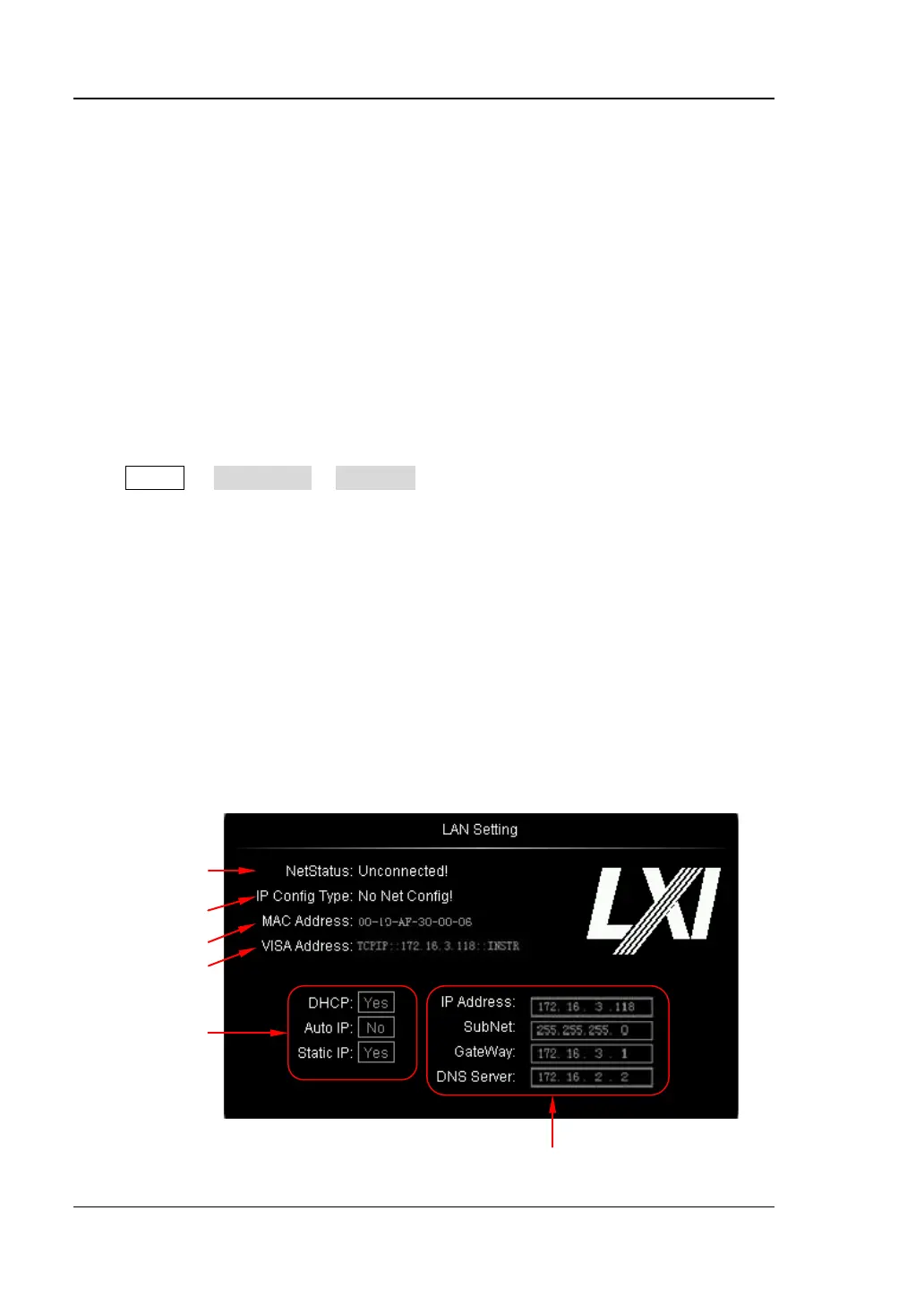

Press Utility  IO Setting  LAN Set to open the network setting menu and the
network connection setting interface, as shown in the figure below. You can view the
current network setting and configure the network parameters.
Current Network Setting
In the network connection setting interface, you can view the current network
setting, including the network status, current IP configuration type, MAC address,
VISA address and network parameters (IP address, subnet mask, default gateway
and DNS server). After configuring and applying new network parameters, the
information in the interface will be updated accordingly.
Network Parameters
Network Status
MAC Address
Current IP
Config Type
VISA Address
IP Config
Type Status
