RIGOL Chapter 14 Remote Control
14-8 DS4000E User’s Guide
Remote Control via GPIB
1. Connect the device
Use the USB-GPIB interface converter to extend a GPIB interface for the
oscilloscope. Then connect the oscilloscope to your PC using a GPIB cable.
2. Install the driver of GPIB card
Install the driver of the GPIB card which has been connected to the PC correctly.
3. Set the GPIB address
Press Utility  IO Setting  GPIB to set the GPIB address of the
oscilloscope (refer to “To Set the GPIB Address”).
4. Search for device resources

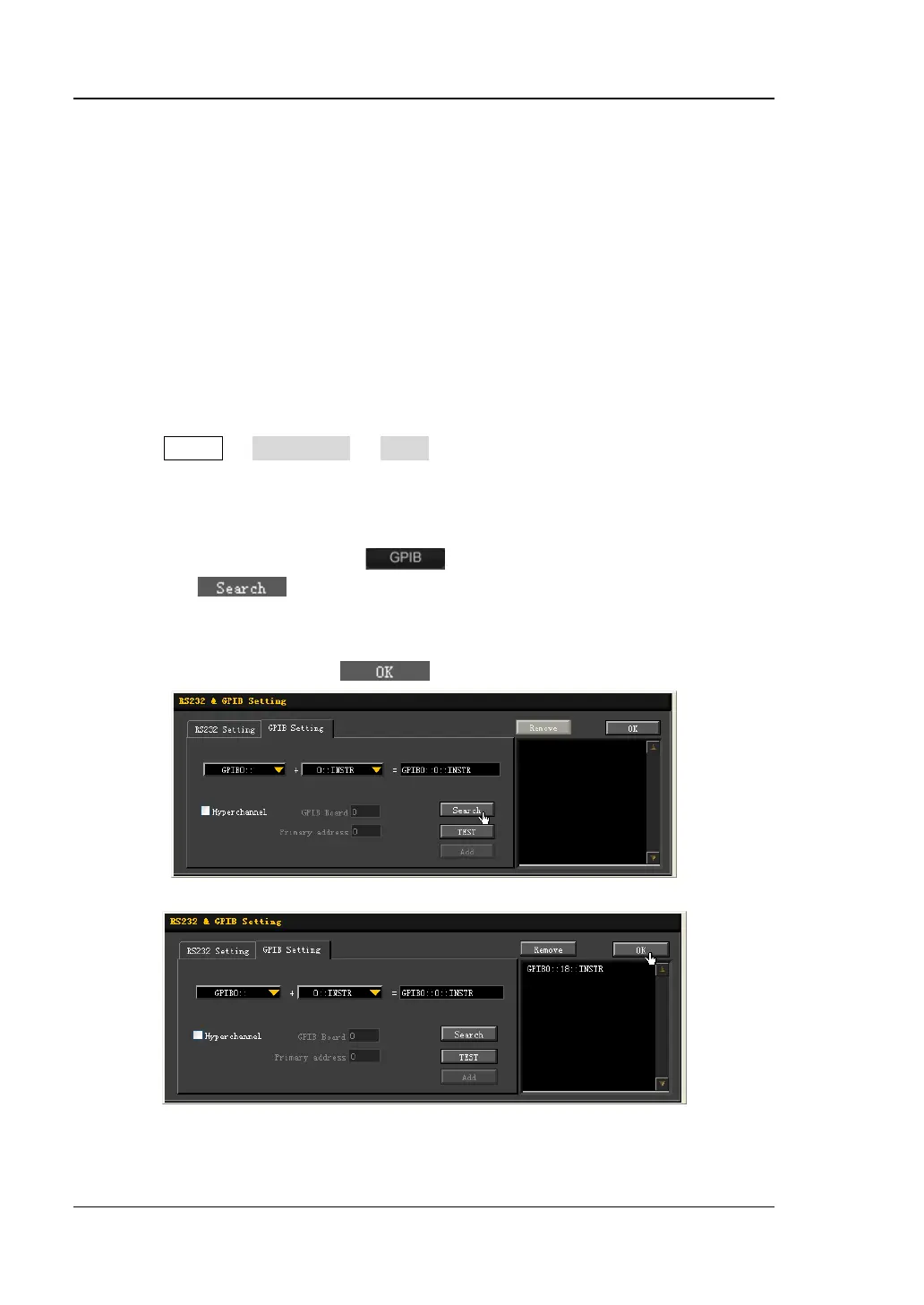

Start up Ultra Sigma and click
to open the window as shown in figure
(a). Click
in the window and the software will search for the
instrument resources currently connected to the PC via the GPIB interface. The
instrument resources found will be displayed on the right side of the window (as
shown in figure (b)). Click
to add the resource.
(a)
(b)
Note: If you want to remove the unwanted resource, click the resource name to
