Chapter 1 Quick Start RIGOL
DS4000E User’s Guide 1-27
variation of the value will be).
Denote that you can turn the multi-function knob
to select the
desired parameter and then press down the multi-function knob
to choose this parameter item.
Denote that the current menu item has several parameter items.
Denote that the current menu has a submenu.
Press this key to return to the previous menu.
Besides, the following direction keys might appear in the grid at the lower-right
side of the screen when the function setting menu is unfolded.
Denote that the current menu include several pages. You can press
(the page down key) at the right of the screen to open the next
page of menu.
Denote that the current menu include several pages. You can press
(the page up key) at the right of the screen to open the previous
page of menu.
To Use the Security Lock
If needed, you can use a security lock (available separately) to lock the oscilloscope
to a fixed location. The method is as follows. Align the lock with the lock hole and
plug it straight into the lock hole, turn the key clockwise to lock the oscilloscope and
then pull the key out.

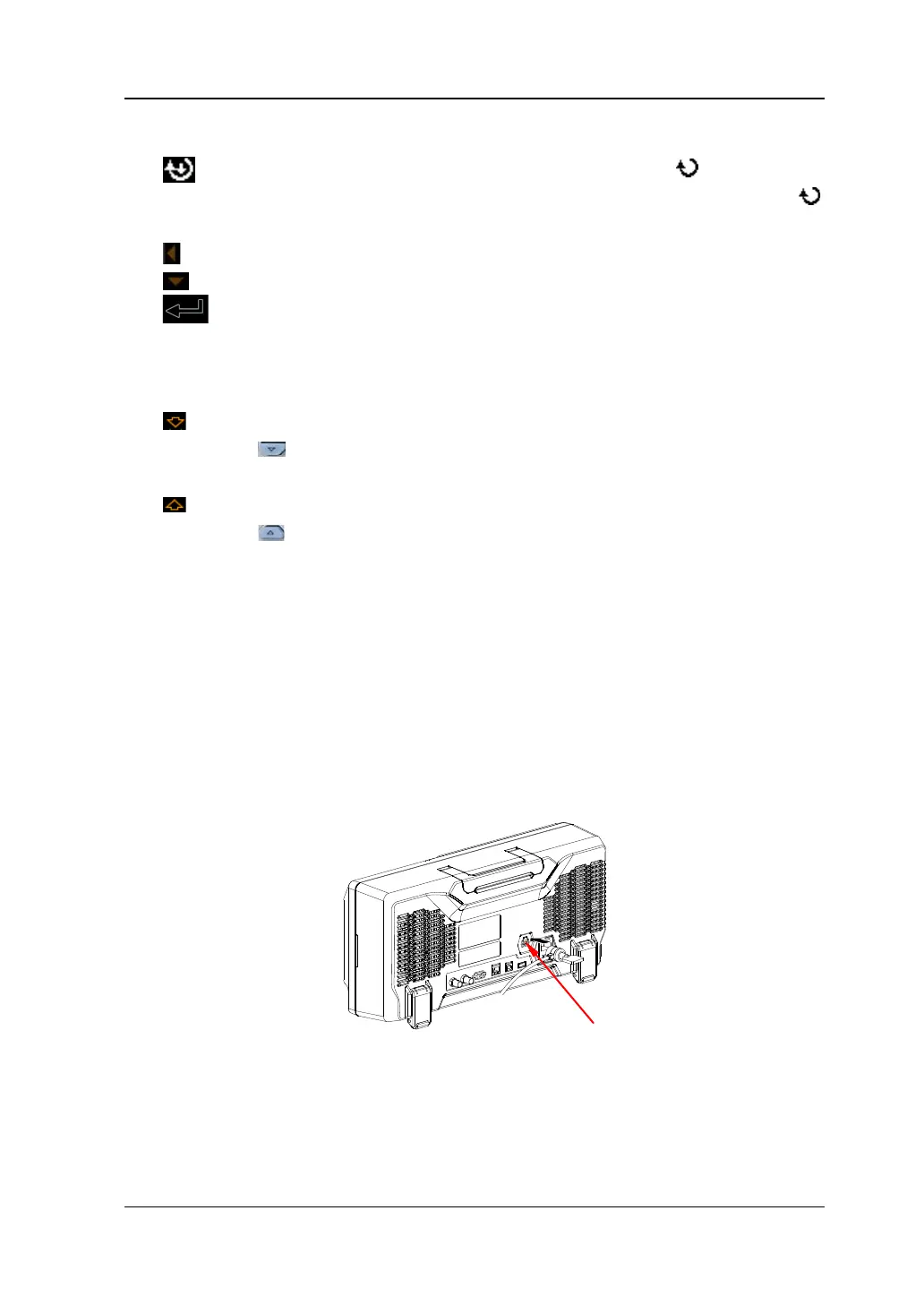

Figure 1-15 To Use the Security Lock
Note: Do not insert other articles into the security lock hole.
Security Lock Hole
To Next Page
