RIGOL Chapter 1 Quick Start
1-4 DS4000E User’s Guide
To Prepare the Oscilloscope for Use
To Remove the Protective Cover
Before using the oscilloscope, remove the front panel cover. Grasp the transverse
tabs on each side and pull them outward to remove the cover.

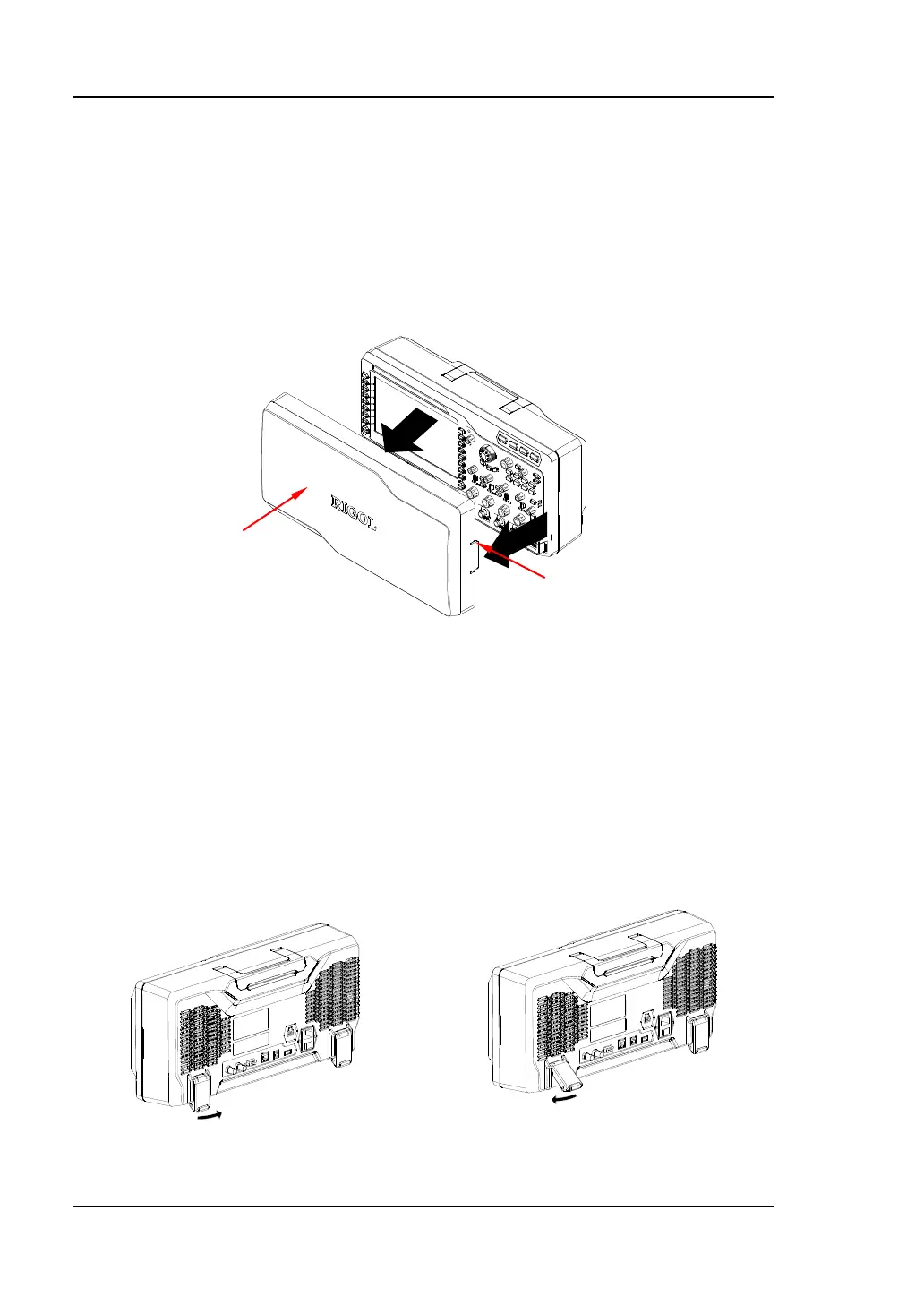

Figure 1-3 To Remove the Protective Cover
To Adjust the Supporting Legs
Adjust the supporting legs properly to use them as stands to tilt the oscilloscope
upwards for stable placement of the oscilloscope as well as better operation and
observation. Unfold or fold the supporting legs in the directions of the arrows as
shown in the figures below.
Figure 1-4 To Adjust the Supporting Legs
Front Panel Cover
Transverse Tab
