2. Load the specified type of file in the external USB storage device (take
trace storage as an example)
1) Press Storage  Storage; turn the multi-function knob to select
“Traces” and press the knob. You can also press Storage continuously to
switch to “Traces”.
2) Press Load to turn on the disk management interface. Turn the
multi-function knob
to select “Disk D” (the characters turn green) and
press down the knob to open the external disk recall interface.
3) Turn the multi-function knob to select the file to be loaded; Load
becomes available and press the softkey to load the file selected.
Disk Management

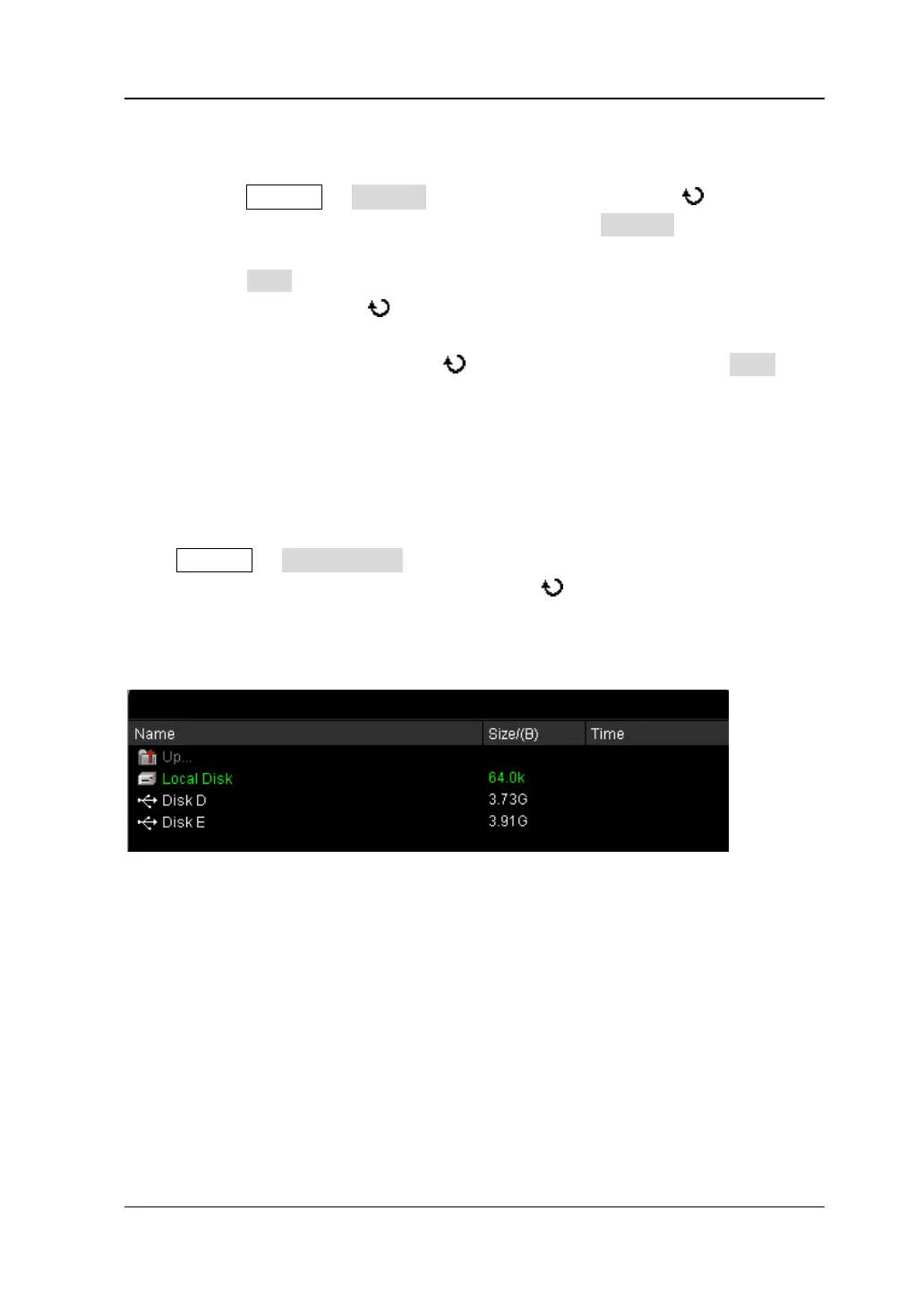

Press Storage  Disk.Manage to open the disk management interface as shown
in the figure below. Turn the multi-function knob to select the desired disk (the
disk currently selected is displayed in green) and press the knob to open the disk
selected.
Execute the following operations through the disk management menu:
 To Select File Type
 To Create a New File or Folder
 To Delete a File or Folder
 To Rename a File or Folder
 To Clear the Local Memory
