Chapter 1 Product Overview

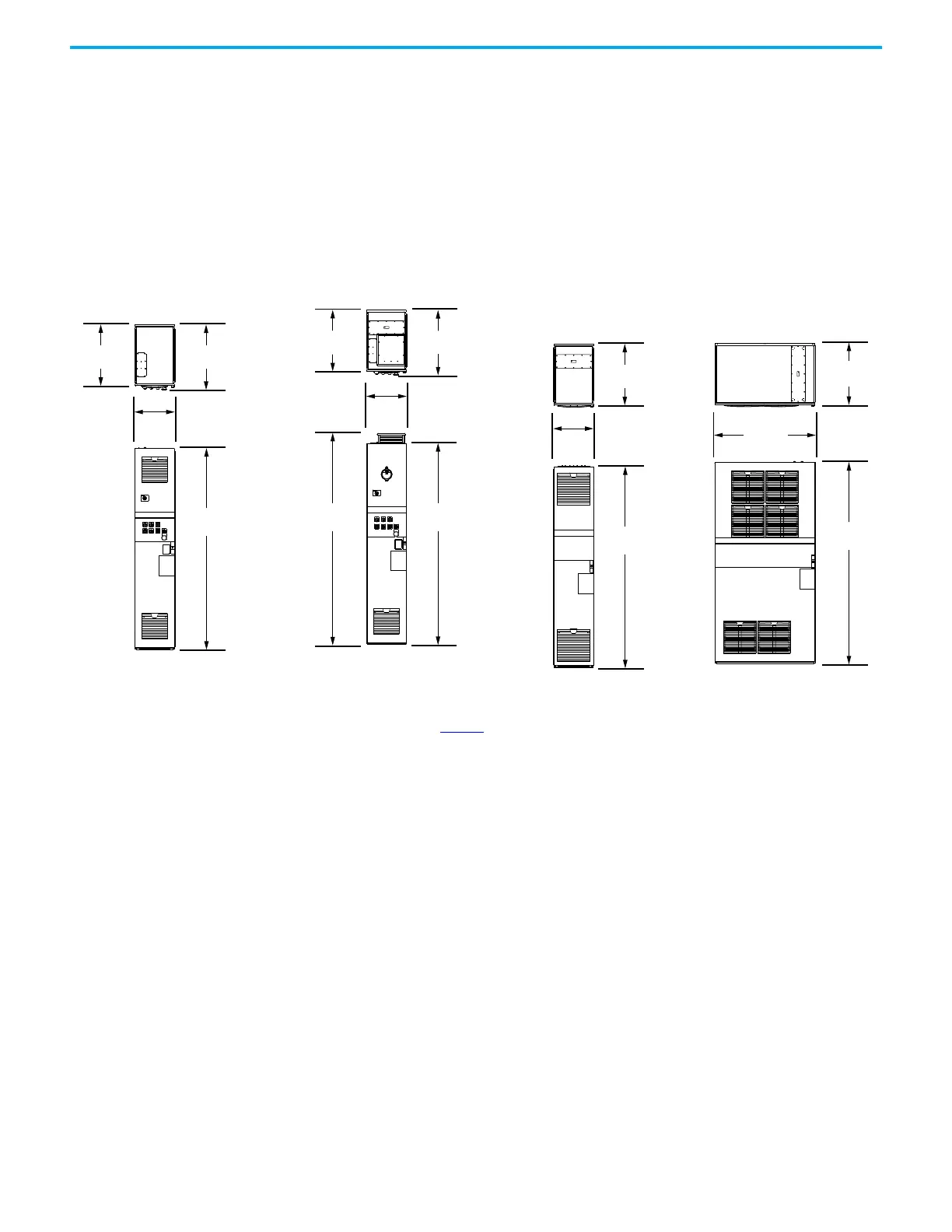

Approximate Dimensions This section provides the approximate dimensions of the configured input
bays and configured output bays. A top view and front view are shown for each
bay or category of bay. These views provide the major dimensions of the bays
(height, width, and depth). For detailed dimensions of various components of
a bay, see the drawing package that was shipped with your product.
Frame 8
Figure 22 - Frame 8 Configured
Input Bay with Control-only (No
Input Protection)
Figure 23 - Frame 8 Configured Input
Bays with Input Protection
The approximate dimensions for Frame 8
configured input bays with input
protection apply to the following bays:
• Configured input bay with fuses, top
entry (bay that is shown in Figure 23
)
• Configured input bay with fuses,
bottom entry
• Configured input bay with circuit
breaker, top entry
• Configured input bay with circuit
breaker, bottom entry
Figure 24 - Frame 8
Configured Output Bay
with Contactor Only,
Top or Bottom Exit
Figure 25 - Frame 8 Configured
Output Bay with Sine-wave Filter
and Contactor, Top or Bottom
Exit
2000.0 mm
(78.74 in.)
400.0 mm
(15.75 in.)
647.2 mm
(25.48 in.)
600.0 mm
(23.62 in.)
2101.3 mm
(82.73 in.)
647.2 mm
(25.48 in.)
(78.74 in.)
400.0 mm
(15.75 in.)
600.0 mm
(23.62 in.)
600.0 mm
(23.62 in.)
400.0 mm
(15.75 in.)
2000.0 mm
(78.74 in.)
1000.0 mm
(39.37 in.)
2000.0 mm
(78.74 in.)
600.0 mm
(23.62 in.)
To Next Page
