Rockwell Automation Publication 750-TG101A-EN-P - June 2022 125
Chapter 5 Frame 6 Renewal Kits Installation

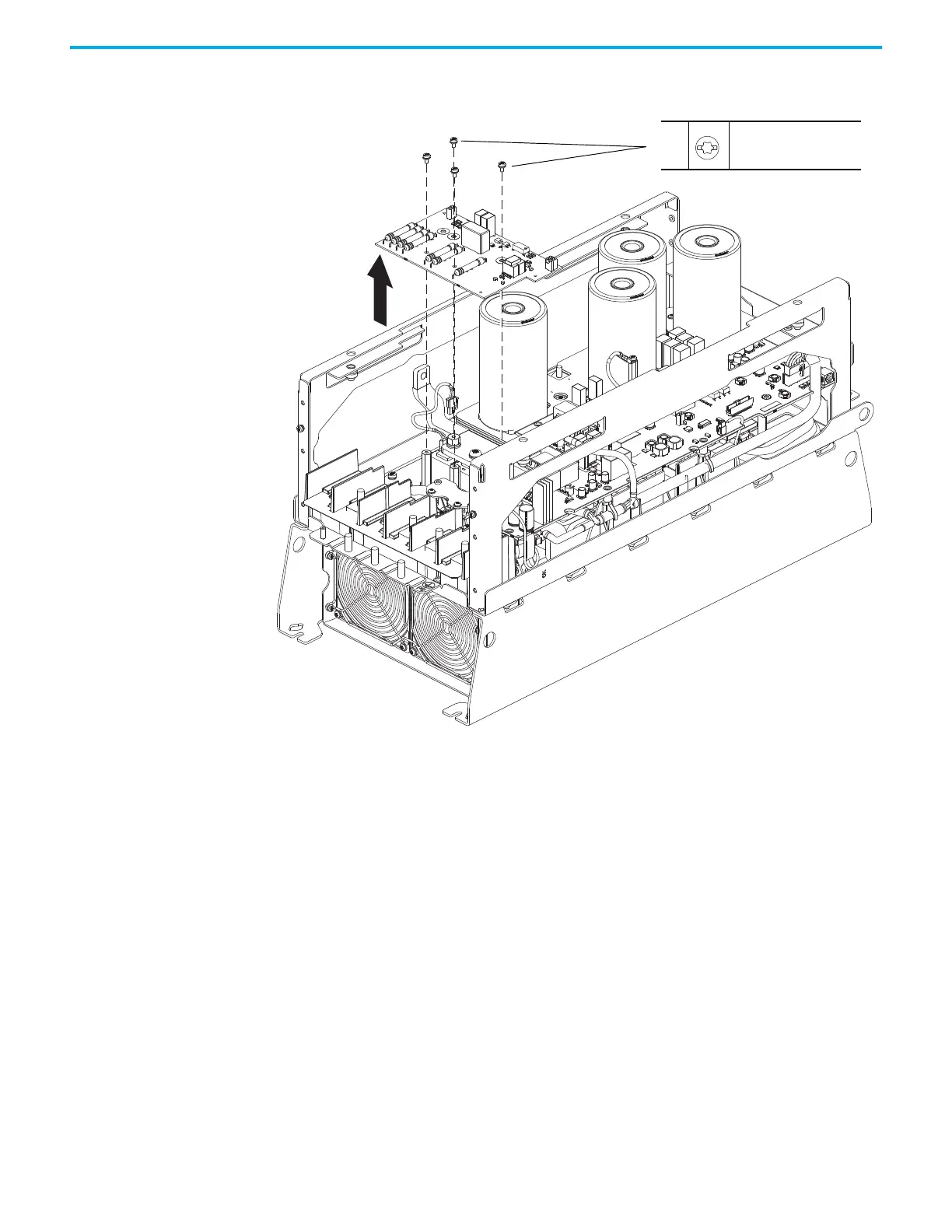

19. Remove the four M4 x mm slotted -Torx screws that secure the DC
precharge circuit board to the standoffs and remove the board.
Install the DC Precharge Circuit Board
Install the DC precharge circuit board in the reverse order of removal.
19
M4 x 8 mm
T20 or F - 6.4 mm (0.25 in.)
2.6 N
m (23.0 lbin)
