Rockwell Automation Publication 750-TG101A-EN-P - June 2022 139
Chapter 6 Frame 7 Renewal Kits Installation
Main Control Board to Power
Interface Board Ribbon
Cable Replacement
Replacement kit catalog number: SK-RT-PIC1-F27-XT
Remove the Main Control Board to Power Interface Board Ribbon Cable
Follow these steps to remove the main control board to power interface board
ribbon cable.
1. Review the Product Advisories
on page 11.
2. Turn off and lock-out incoming power. See Remove Power from the
System on page 12.
3. Remove the main control circuit board. See Remove the Main Control
Circuit Board on page 134.
4. If a torque accuracy module (TAM) is installed, on the interior of the
control pod chassis, compress the two posts that secure the TAM to the
control pod and push the posts through the mounting holes.
The TAM remains in the drive chassis and connected to the power interface circuit
board via a wire harness after the control pod chassis is removed.

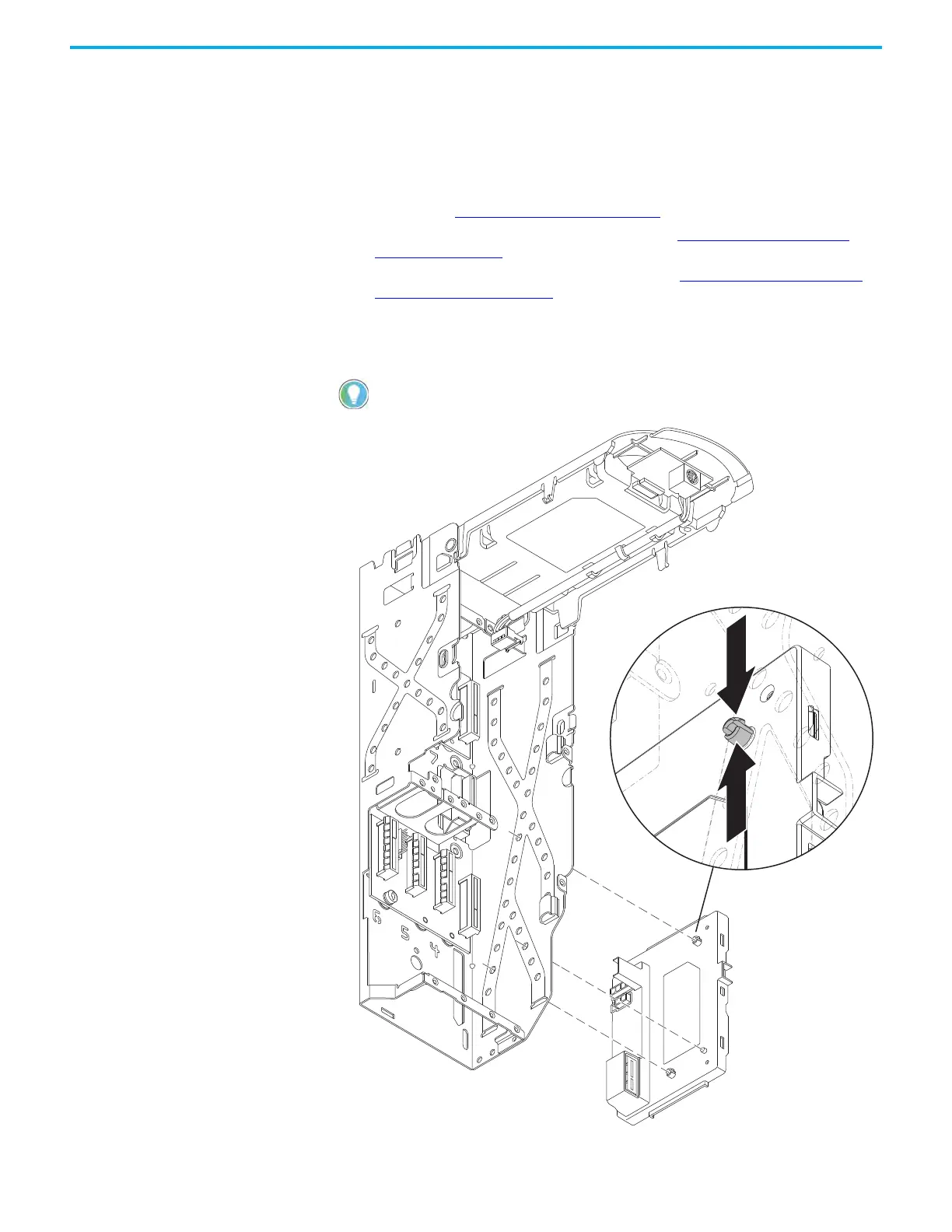

4 (Qty. 2)
Control Pod Shown Removed from the
Drive Chassis for Clarity Only.
