74 Rockwell Automation Publication 750-TG101A-EN-P - June 2022
Chapter 4 Frames 1…5 Renewal Kits Installation
Main Control Board to Power
Interface Board Ribbon
Cable Replacement, Frame 1
Replacement kit catalog number: SK-RT-PIC1-F1-XT
Remove the Main Control Board to Power Interface Board Ribbon Cable,
Frame 1
Follow these steps to remove the main control board to power interface board
ribbon cable.
1. Review the Product Advisories
on page 11.
2. Turn off and lock-out incoming power. See Remove Power from the
System on page 12.
3. Remove the power terminal cover. See Remove the Power Terminal
Cover, Frames 1…5 on page 35.
4. Remove the main control circuit board. See Remove the Main Control
Circuit Board, Frame 1 on page 64.

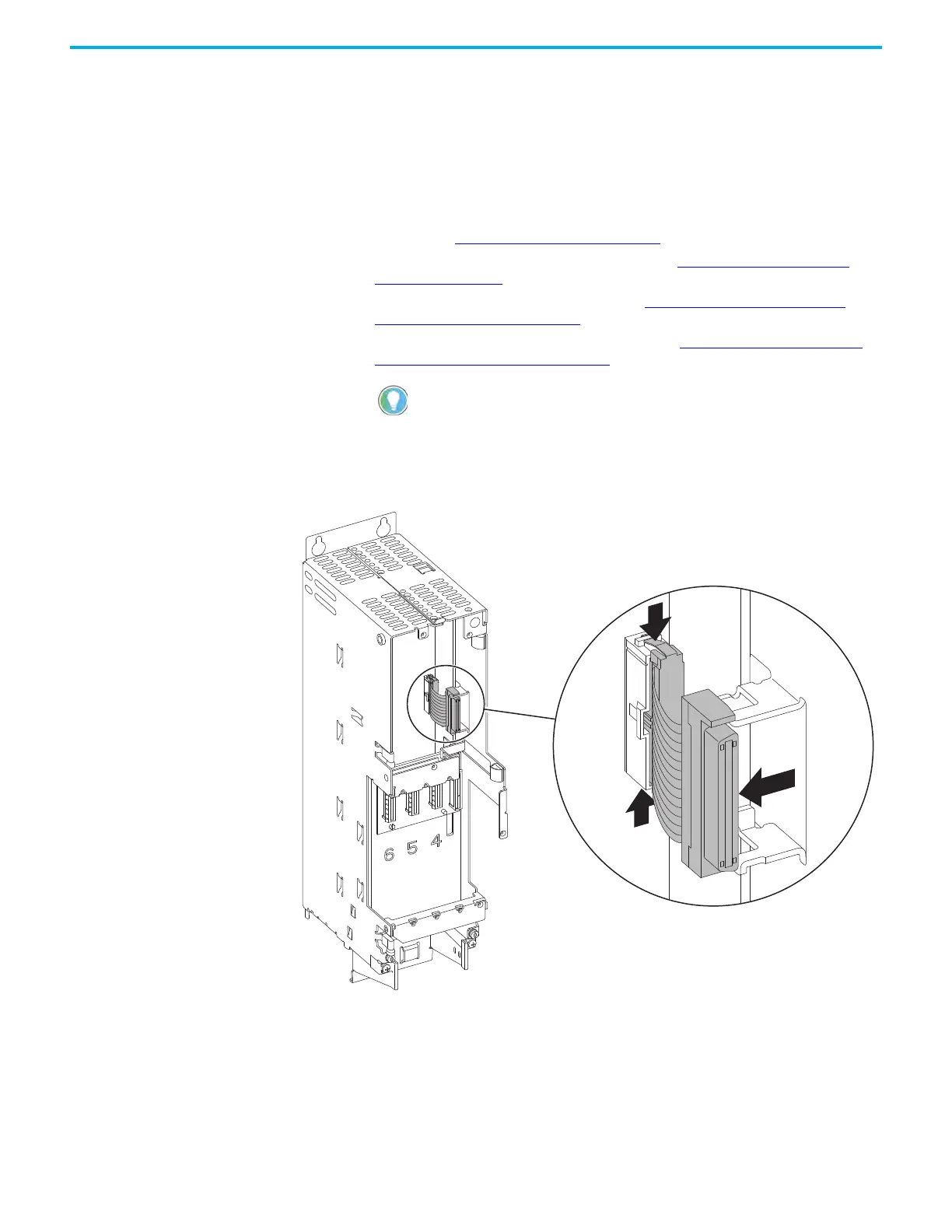

5. Pull the ribbon cable off the mounting clip on the side of the drive
chassis.
6. Disconnect the ribbon cable connector from connector J1 on the power
circuit board, and remove the ribbon cable from the drive.
Install the Main Control Board to Power Interface Board Ribbon Cable,
Frame 1
Install the main control board to power interface board ribbon cable in the
reverse order of removal.
Retain the main control circuit board for reuse.
J1
5
6
Chassis Shown Removed for Clarity Only.
