72 Rockwell Automation Publication 750-TG101A-EN-P - June 2022
Chapter 4 Frames 1…5 Renewal Kits Installation
12. Loosen the three captive slotted-Torx screws that secure the main control
circuit board to the control pod chassis and remove the main control
board.
Install the Main Control Circuit Board, Frames 2…5
Follow these steps to install the main control circuit board.
12
M3 x 6.4 mm
T15 or F - 5 mm (0.19 in.)
0.45 N•m (4.0 lb•in)

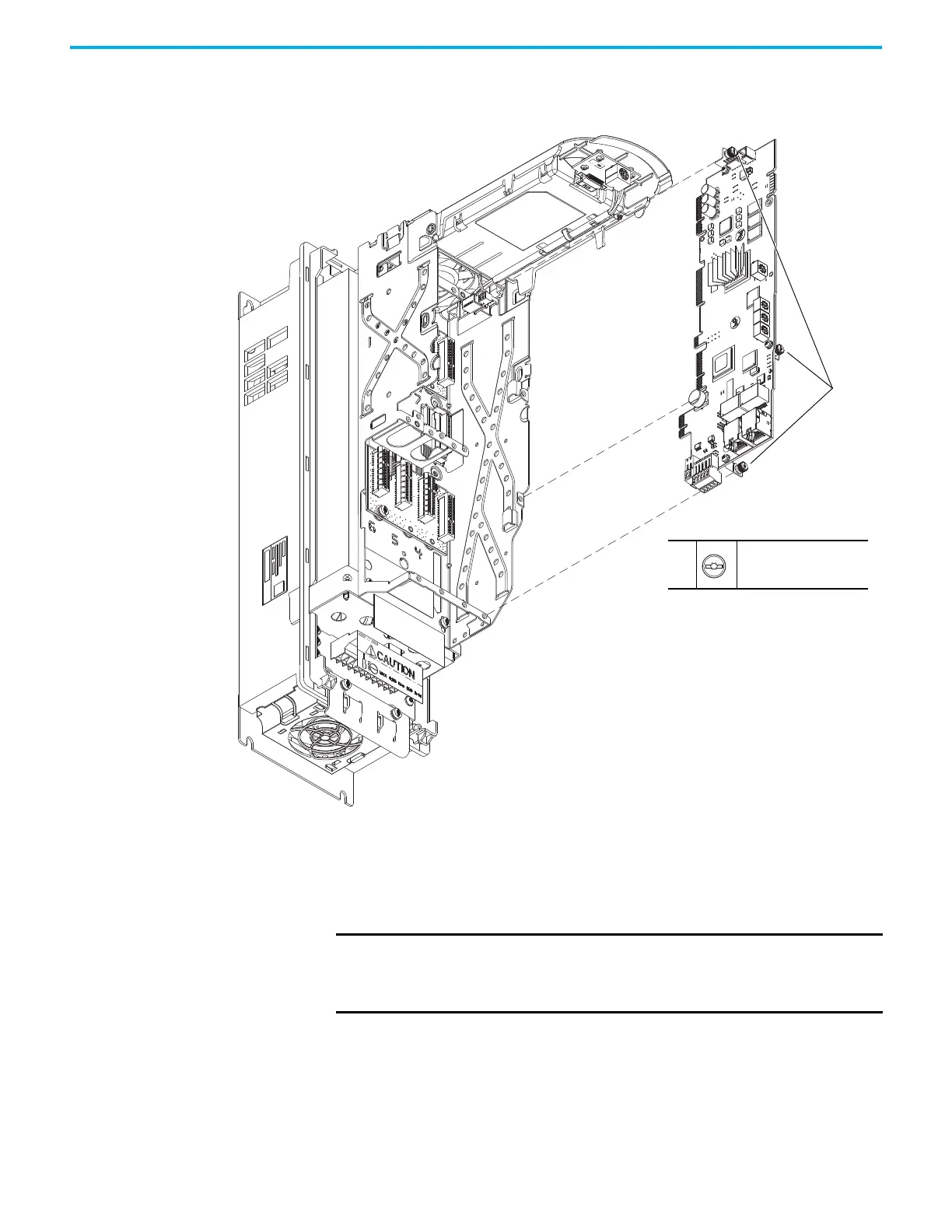

12
Frame 2 Shown
Chassis Shown Removed
for Clarity Only
IMPORTANT Circuit boards that are contained in renewal kits with XT contain dielectric
grease on the edge connectors, where present. Do not touch or remove the
grease from circuit board edge connectors. A non-greased connector can
lead to corrosion.
