Chapter 4 Frames 1…5 Renewal Kits Installation
Chassis Replacement,
Frames 2…5
Replacement kit catalog numbers: SK-RT-CHSS1-F2, SK-RT-CHSS1-F2-XT,
SK-RT-CHSS1-F3, SK-RT-CHSS1-F3-XT, SK-RT-CHSS1-F4,
SK-RT-CHSS1-F4-XT, SK-RT-CHSS1-F5, SK-RT-CHSS1-F5-XT
These kits can be used for IP20, NEMA/UL Open Type, IP20, NEMA/UL Type 1,
and flange, NEMA/UL Type 4X/12 back enclosures.
Remove the Chassis, Frames 2…5
Follow these steps to remove the chassis.
1. Review the Product Advisories
on page 11.
2. Turn off and lock-out incoming power. See Remove Power from the
System on page 12.
3. For IP20, NEMA/UL Type 1 enclosures only, insert a screwdriver under
the drip hood, press outward to disengage each clip, and lift the cover off
the chassis. Retain the drip hood for reuse.

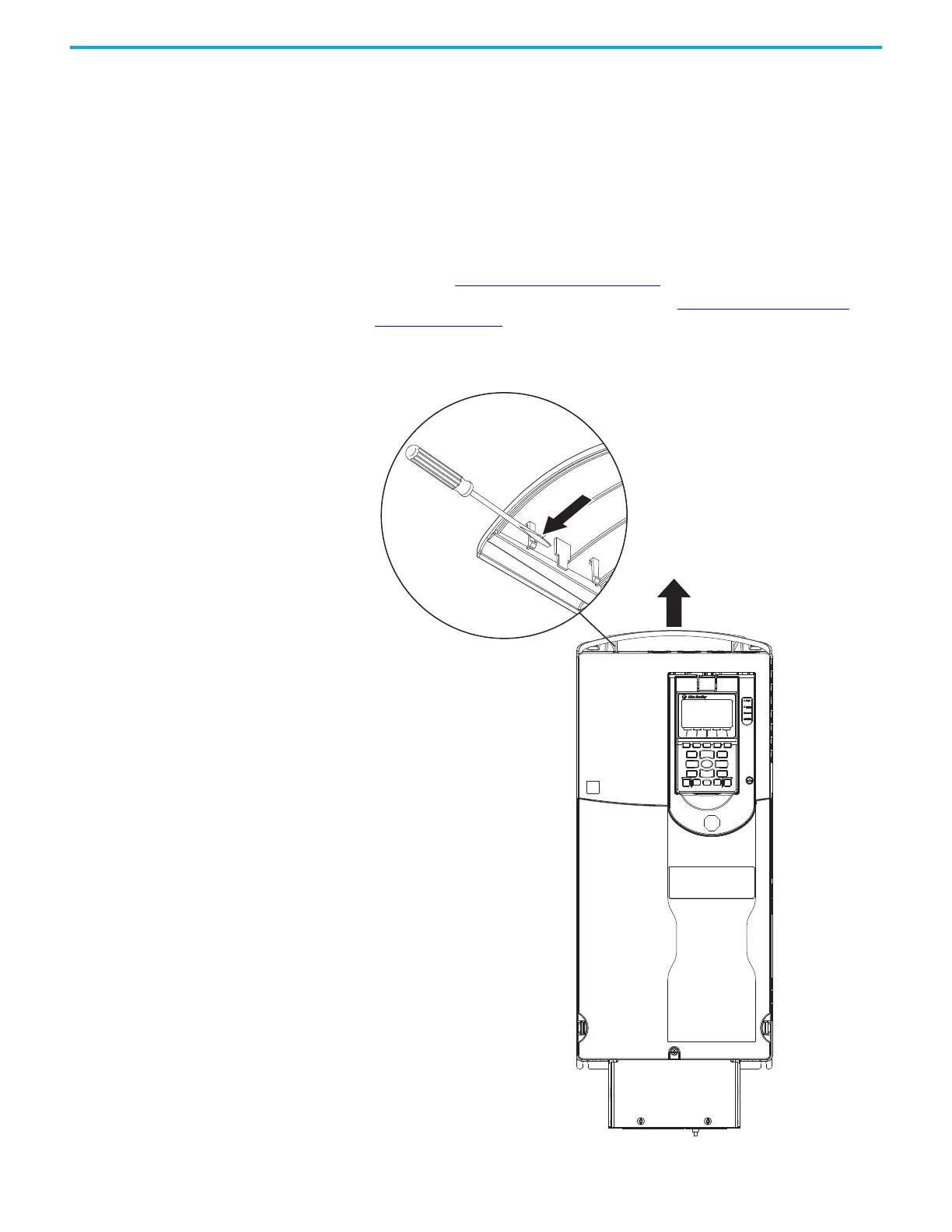

Frame 4, IP20, NEMA/UL Type 1 Shown
To Next Page
