98 Rockwell Automation Publication 750-TG101A-EN-P - June 2022
Chapter 5 Frame 6 Renewal Kits Installation
4. Remove the four M4 x 8 mm slotted-Torx screws that secure the fan
assembly to the chassis and remove the fan partially.
5. Disconnect the fan power wire-harness connectors from the fan
assembly connectors and remove the fan assembly.
Install the Heatsink Fan
Install the heatsink fan in the reverse order of removal.
IMPORTANT The fan assembly cannot be removed from the drive chassis
completely, until the fan power harnesses are disconnected.
4
M4 x 8 mm
T20 or F - 6.4 mm (0.25 in.)
2.6 N
•m (23.0 lb•in)
4
4

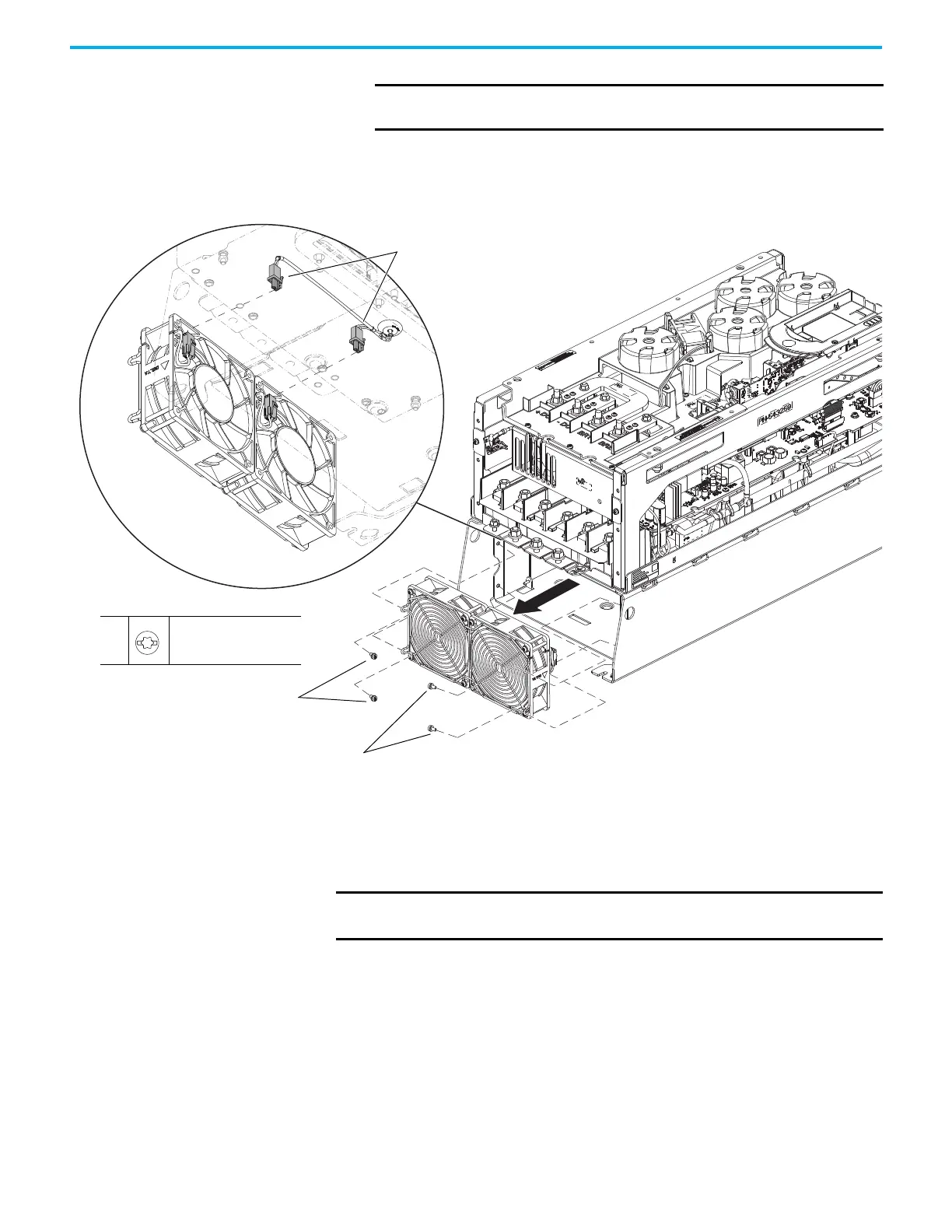

View of wire harness and
connectors inside the chassis.
IP00, NEMA/UL Open Type Drive with Cover Removed Shown.
Wire Harness Connectors for the IP00, NEMA/UL Open Type
and IP21, NEMA/UL Type 1 Fan Assemblies Shown.
IMPORTANT Before installation, remove the protective covers from the fan assembly
wire harness connectors.
