Rockwell Automation Allen-Bradley PowerFlex 755TS Series User Manual

Rockwell Automation Publication 750-TG101A-EN-P - June 2022 37
Chapter 4 Frames 1…5 Renewal Kits Installation
Remove the IP54, NEMA/UL
Type 12 Cover, Frames 2…5
Remove the IP54, NEMA/UL Type 12 cover to access the power terminals,
control pod components, and internal stirring fans (where applicable).
Remove the IP54, NEMA/UL Type 12 Cover, Frames 2…5
Follow theses steps to remove the cover.
1. Review the Product Advisories
on page 11.
2. Turn off and lock-out incoming power. See Remove Power from the
System on page 12.
3. For all frame sizes, remove the two M4 hex nuts at the bottom of the drive
cover.
4. Remove the slotted-Torx screws:
• Frames 2…4 - Remove the 13 M4 x 16 mm slotted-Torx screws.
• Frame 5 - Remove the 20 M4 x 16 mm slotted-Torx screws.

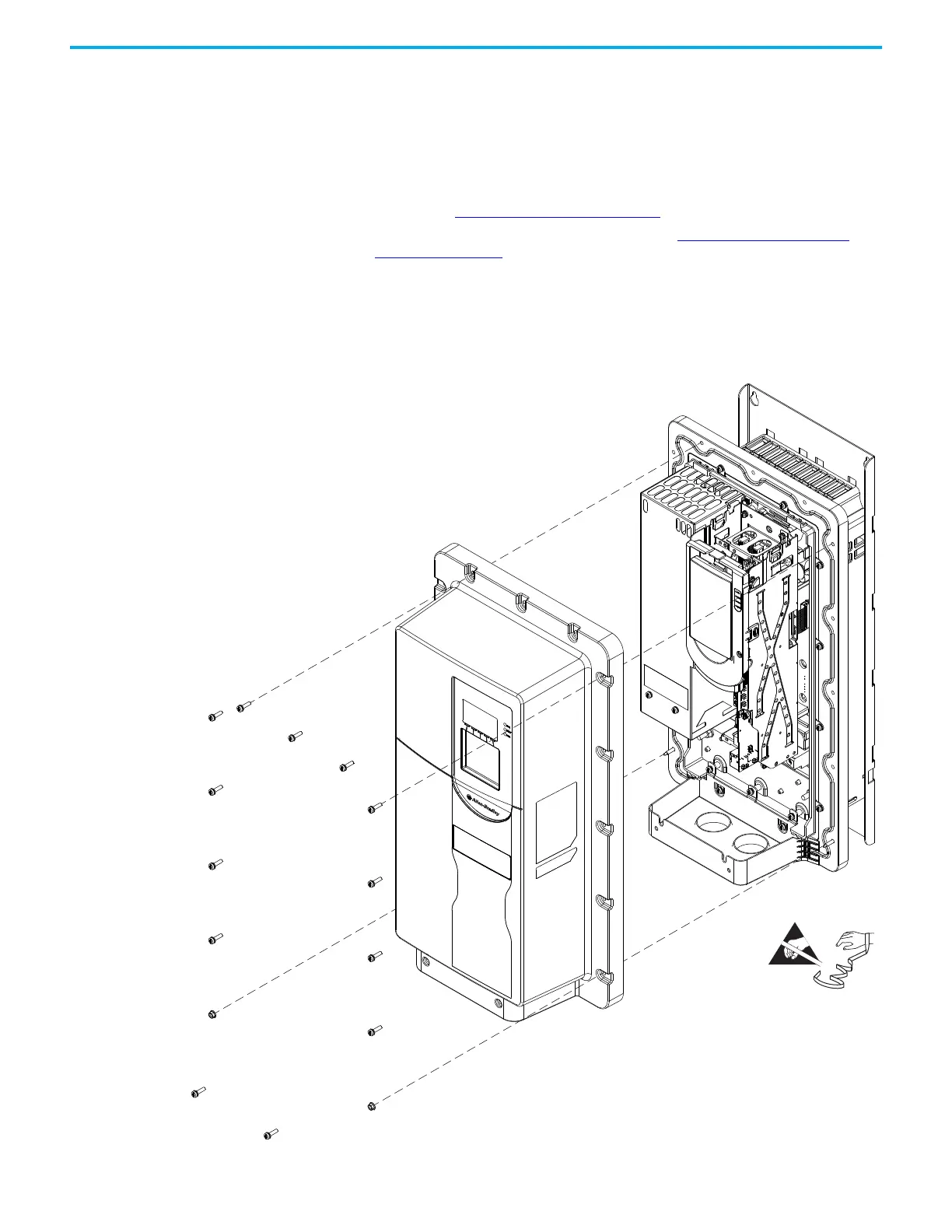

Frame 4 Shown
3
3
4
(Qty. 13 or 20)
=
