Rockwell Automation Publication 750-TG101A-EN-P - June 2022 61
Chapter 4 Frames 1…5 Renewal Kits Installation
Control Pod HIM Cradle
Replacement, Frames 2…5
Replacement kit catalog numbers: SK-RT-BZL1, SK-RT-BZL1-XT
Remove the Control Pod HIM Cradle, Frames 2…5
Follow these steps to remove the control pod HIM cradle.
1. Review the Product Advisories
on page 11.
2. Turn off and lock-out incoming power. See Remove Power from the
System on page 12.
3. Remove the cover:
• For IP20, NEMA/UL Open Type, IP20, NEMA/UL Type 1 and flange,
NEMA/UL Type 4X/12 back enclosures, remove the power terminal
cover. See Remove the Power Terminal Cover, Frames 1…5
on page 35.
• For IP54, NEMA/UL Type 12 enclosures remove the cover. See Remove
the IP54, NEMA/UL Type 12 Cover, Frames 2…5 on page 37.
4. If a HIM is installed in the cradle, remove the HIM.
5. If used, disconnect the DPI cable from the connector on the bottom of
the HIM cradle.
6. Loosen the screw that secures the HIM cradle to the pod chassis, and
rotate the cradle up to a 90° horizontal position.
7. Disconnect the HIM wire harness connector from the connector on the
main control board.
If a cable is not connected to the DPI port on the HIM cradle, be sure to leave the
protective cover installed.

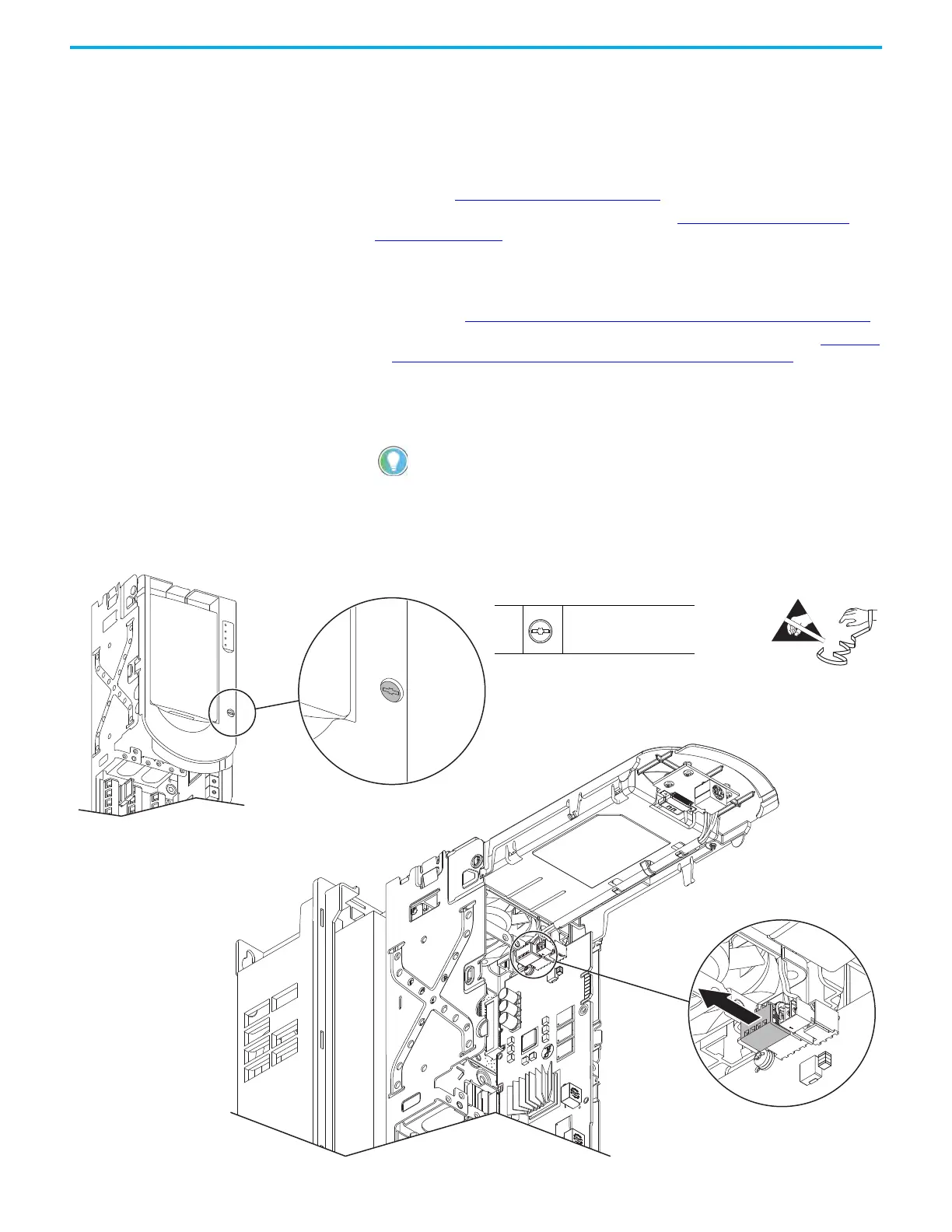

Control Pod Shown Removed from the Drive Chassis for Clarity Only.
IP20, NEMA/UL Open Type Frame 2 Drive Shown.
Drive Chassis Shown Remove for Clarity Only.
7
6
M3 x 6.4 mm
T15 or F - 5 mm (0.19 in.)
0.45 N•m (4.0 lb•in)
To Next Page
