Chapter 4 Frames 1…5 Renewal Kits Installation
Power Terminal Cover
Replacement, Frames 1…5
Replacement kit catalog numbers: SK-RT-CVR1-F1, SK-RT-CVR1-F1-XT,
SK-RT-CVR1-F2, SK-RT-CVR1-F2-XT, SK-RT-CVR1-F3, SK-RT-CVR1-F3-XT,
SK-RT-CVR1-F4, SK-RT-CVR1-F4-XT, SK-RT-CVR1-F5, SK-RT-CVR1-F5-XT
These kits can be used for IP20, NEMA/UL Open Type, IP20, NEMA/UL Type 1,
and Flange, NEMA/UL Type 4X/12 back enclosures.
Remove the Power Terminal Cover, Frames 1…5
Follow these steps to remove the power terminal cover for frames 1…5 drives.
1. Review the Product Advisories
on page 11.
2. Turn off and lock-out incoming power. See Remove Power from the
System on page 12l.
3. Remove the IP20, NEMA/UL Type 1 power terminal cover. See Remove
the Power Terminal Cover, Frames 1…5 on page 35.
Install the Power Terminal Cover, Frames 1…5
Follow these steps to install the power terminal cover for frames 1…5 drives.
1. For IP20, NEMA/UL Type 1 installations with a conduit box only, on the
inside of the new cover, remove the plastic material from the screw hole.

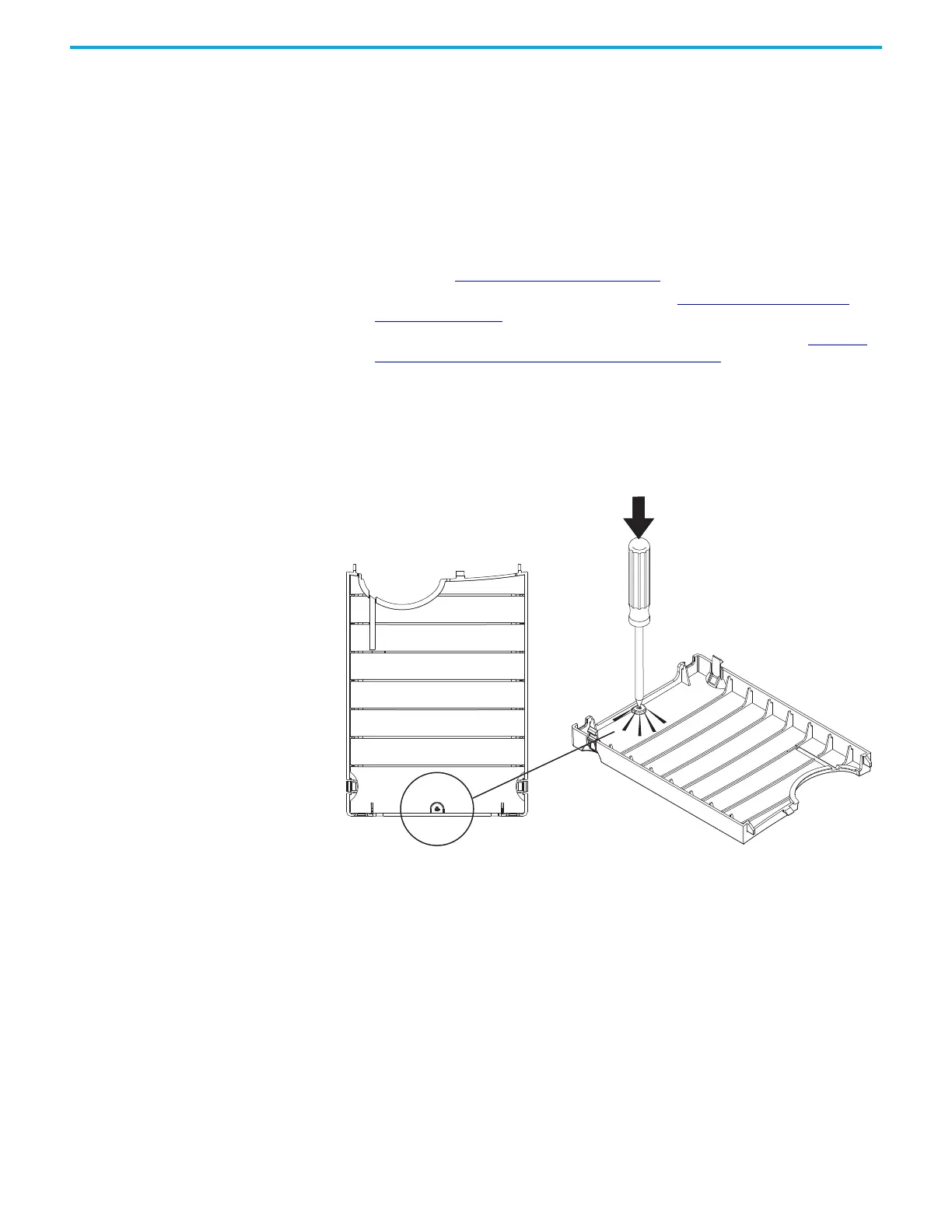

Frame 4 - Type 1 Cover Shown
To Next Page
