Rockwell Automation Publication 750-TG101A-EN-P - June 2022 145
Chapter 6 Frame 7 Renewal Kits Installation

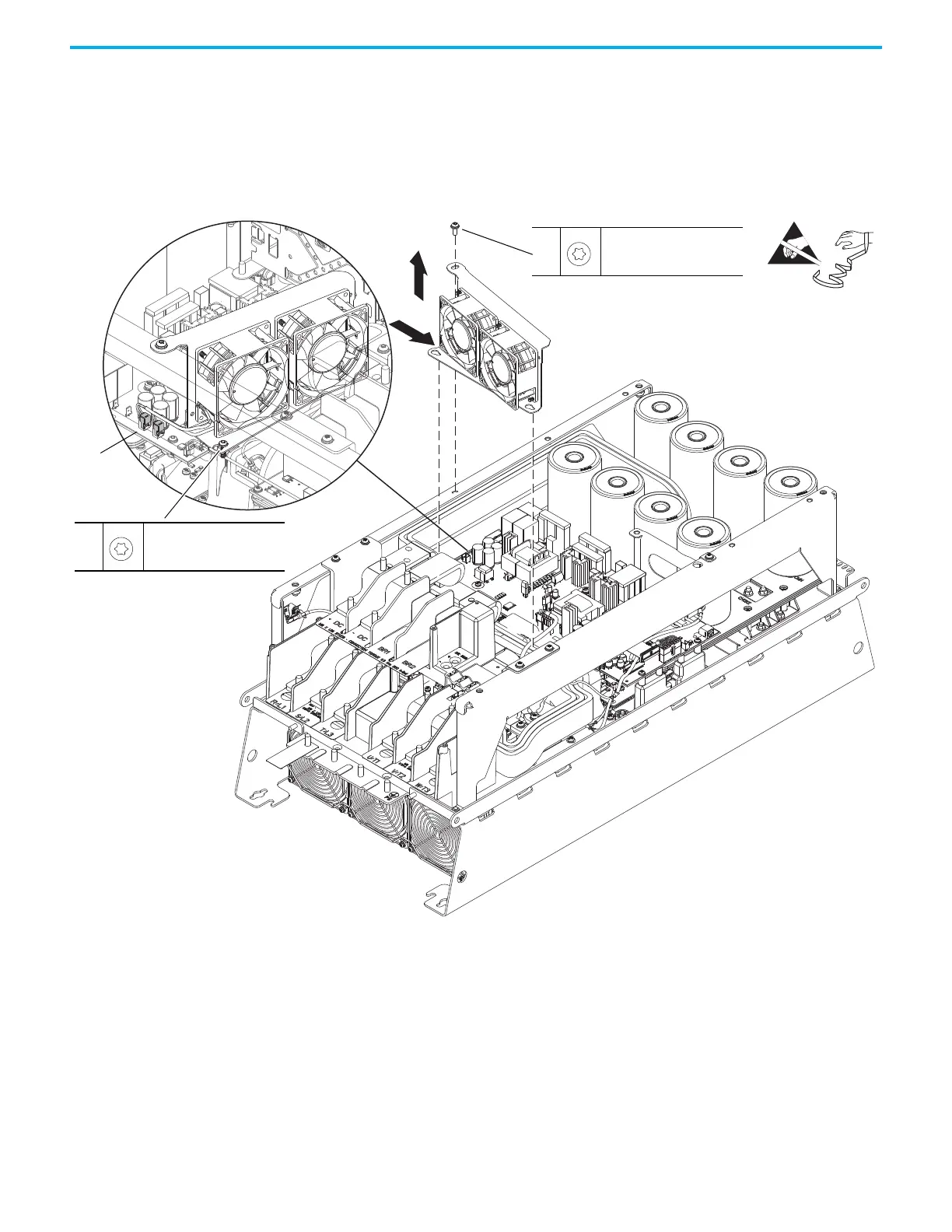

5. Loosen the two lower M5 Torx screws on the stirring fan assembly.
6. Remove the upper M6 x 16 mm Torx screw on the stirring fan assembly.
7. Slide the fan assembly to the right, lift the fan assembly off the screws,
and remove the assembly.
8. Disconnect the fan-assembly power wire harness connectors P5 and P6
from connectors J5 and J6, respectively, on the power interface circuit
board (left side of the fan assembly).
Install the Stirring Fan Assembly
Install the stirring fan assembly in the reverse order of removal.
6
M6 x 16 mm
T30
5.2 N
•m (46.0 lb•in)
5
M5
T30
4.9 N
•m (43.0 lb•in)
P5 and P6
To Next Page
