Connecting
4.3 Control/status interface - X8
SINAMICS V90, SIMOTICS S-1FL6
146 Operating Instructions, 04/2019, A5E36037884-007
4.3.5
Connection examples with PLCs
This section gives examples of connections between the drive and the PLC. All of the
connection examples shown in this section are made based on factory default settings for
digital inputs/outputs. You can assign different digital inputs/outputs based on your actual
requirement.
4.3.5.1
SIMATIC S7-200 SMART
Pulse train input position control (PTI)

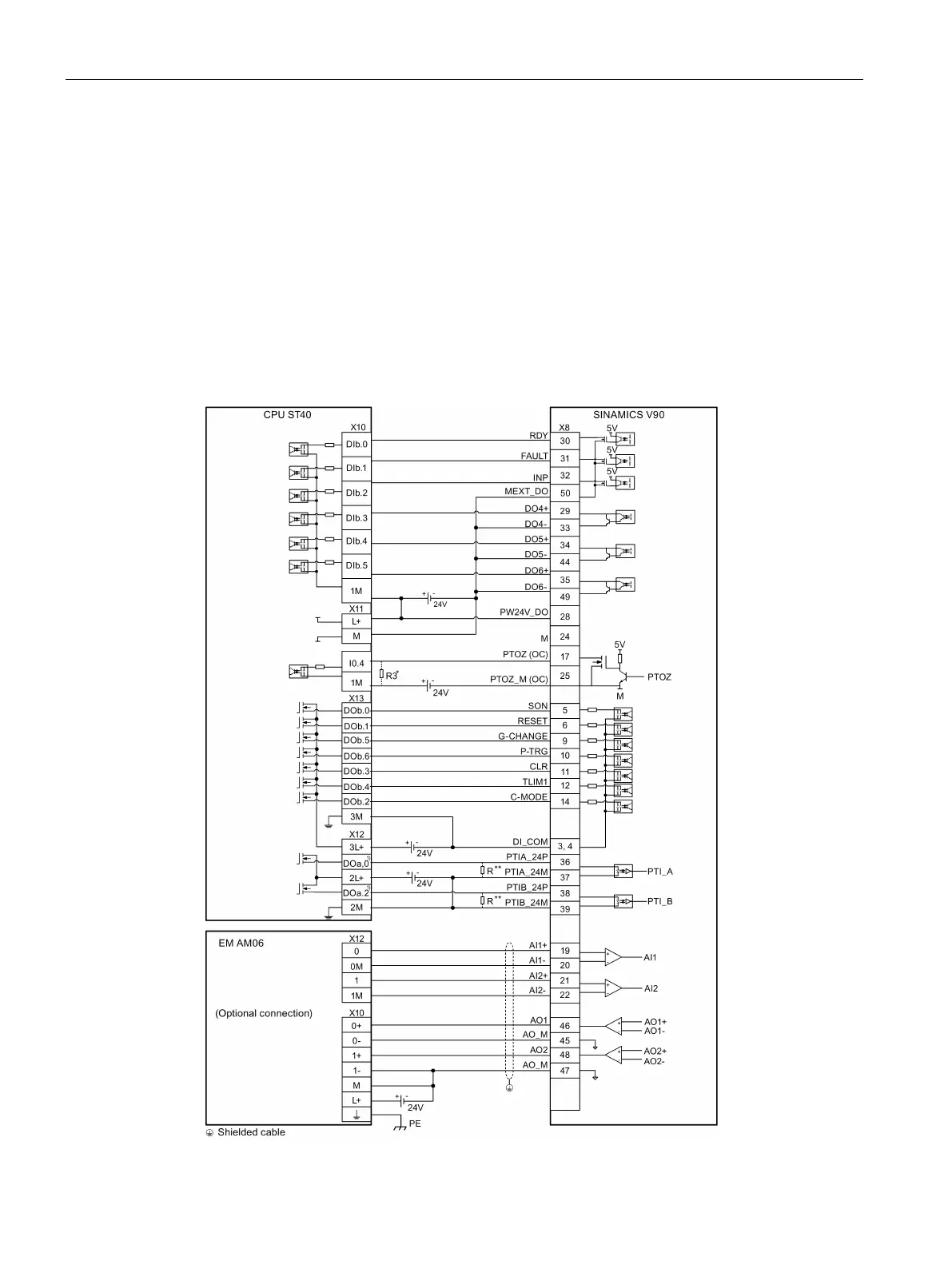

When connecting to different axes, the outputs are different. The diagram below takes the
connection with axis 0 for example.
