General information
2.4 System configuration
SINAMICS V90, SIMOTICS S-1FL6
42 Operating Instructions, 04/2019, A5E36037884-007
2.4
System configuration
The SINAMICS V90 servo drive is integrated with digital input/output interface, pulse train
interface and analog interface. It can be connected either to a Siemens controller like S7-200,
S7-1200 or S7-200 SMART, or to a third-party controller. Absolute position information can
be read from the servo drive by the PLC via RS485 port.
A configuration software tool, SINAMICS V-ASSISTANT, can be installed on a PC. The PC
can communicate with SINAMICS V90 servo drive with a USB cable for performing
parameter settings, trial run, status display monitoring, gain adjustments, and so on.

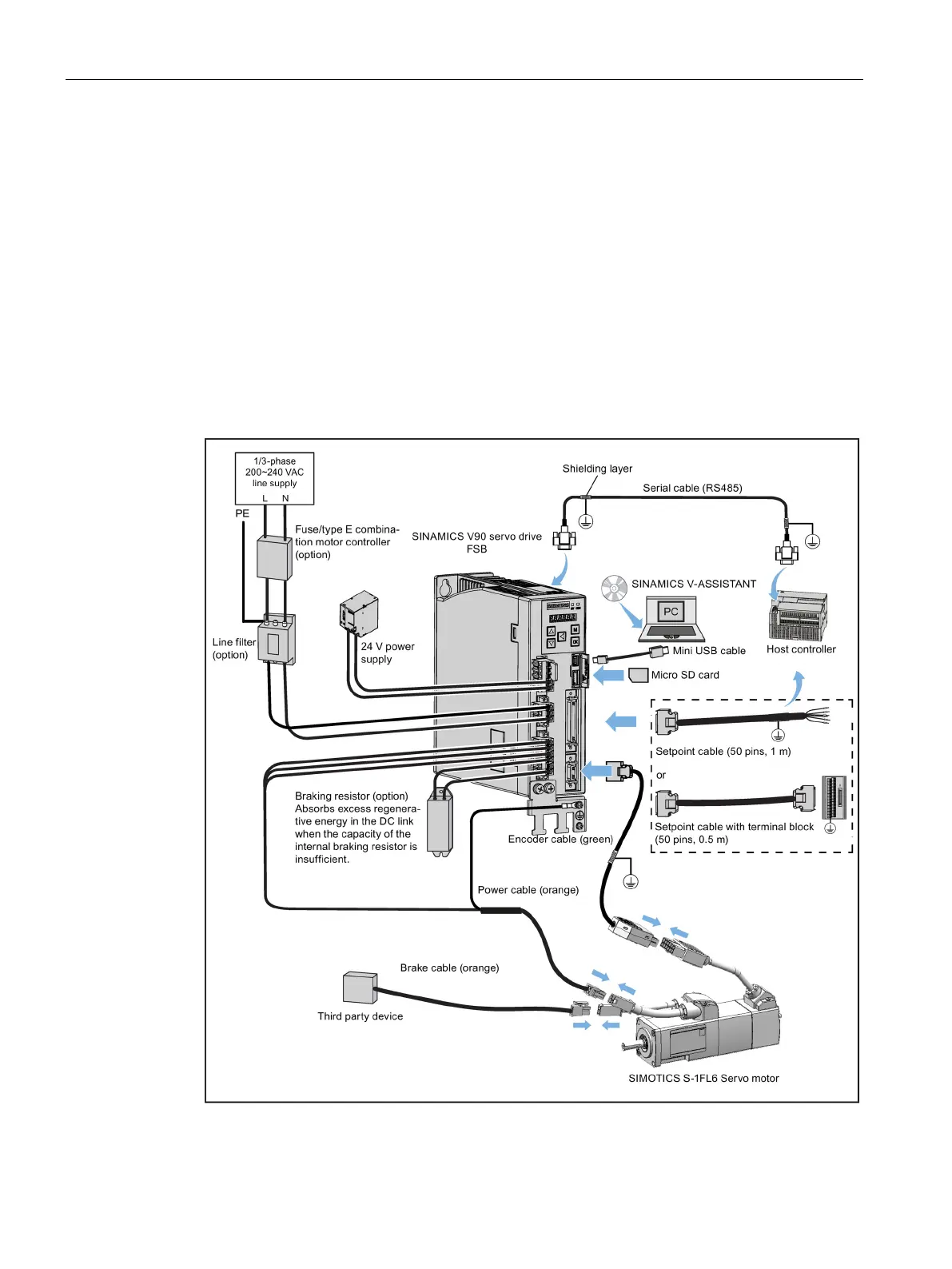

SINAMICS V90 200 V variant
FSB on the single phase power network
