Basic operator panel (BOP)
6.1 BOP overview
SINAMICS V90, SIMOTICS S-1FL6
188 Operating Instructions, 04/2019, A5E36037884-007
6.1.1
LED status indicators

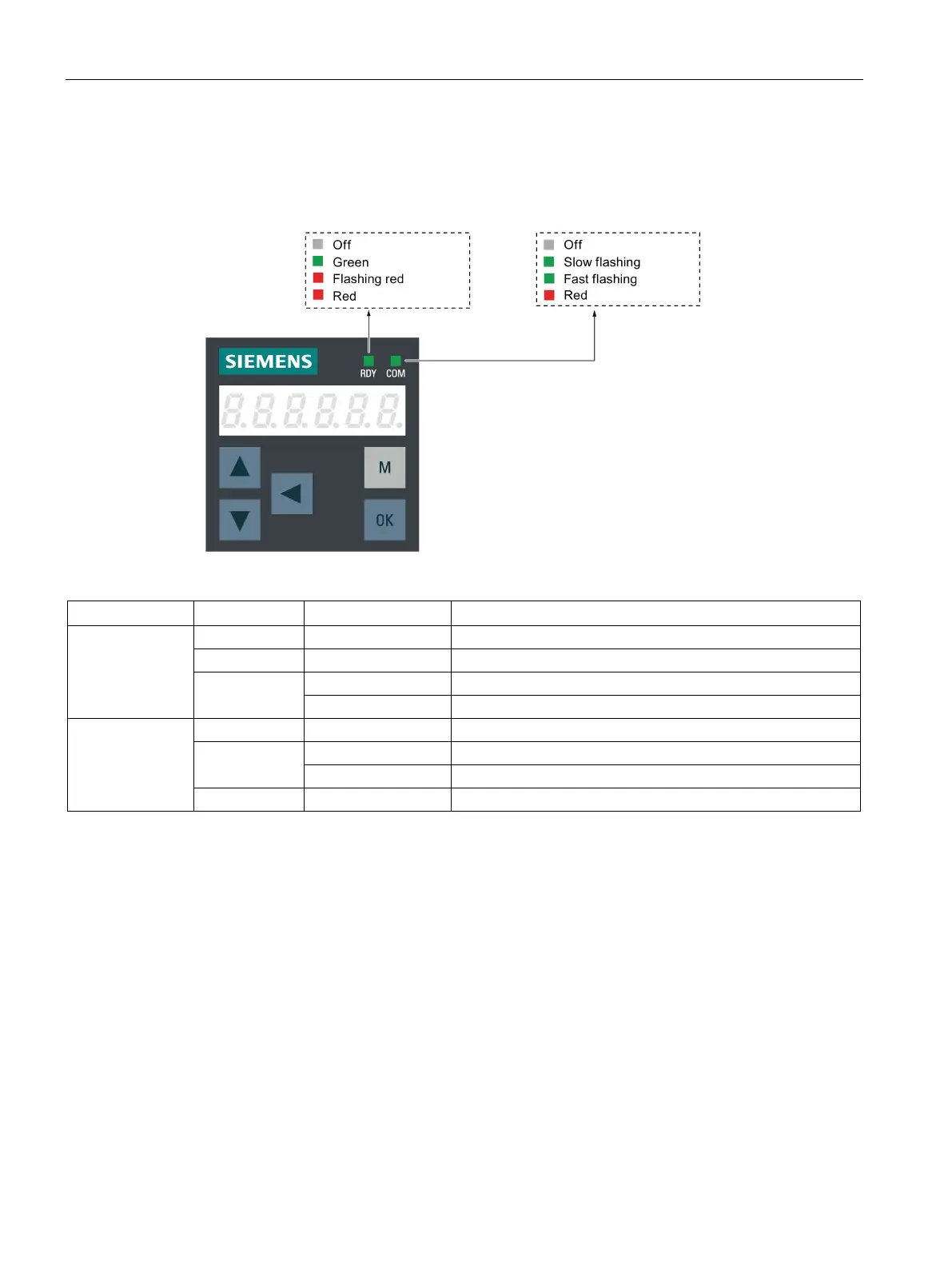

Two LED status indicators (RDY and COM) are available to indicate drive status. Both LEDs
are dual color (green/red).
You can find detailed information about the status indications in the table below:
Status indicator
Color
Status
Description
RDY
-
Off
24 V control board power supply is missing
Green
Continuously lit
The drive is in "S ON" state
Red
Continuously lit
The drive is in "S OFF" state or in startup state
Flash at 1 Hz
Alarms or faults occurs
COM
-
Off
Communication with PC is not active
Green
Flash at 0.5 Hz
Communication with PC is active
Flash at 2 Hz
Micro SD card/SD card operating (read or write)
Red
Continuously lit
Communication with PC is in error
